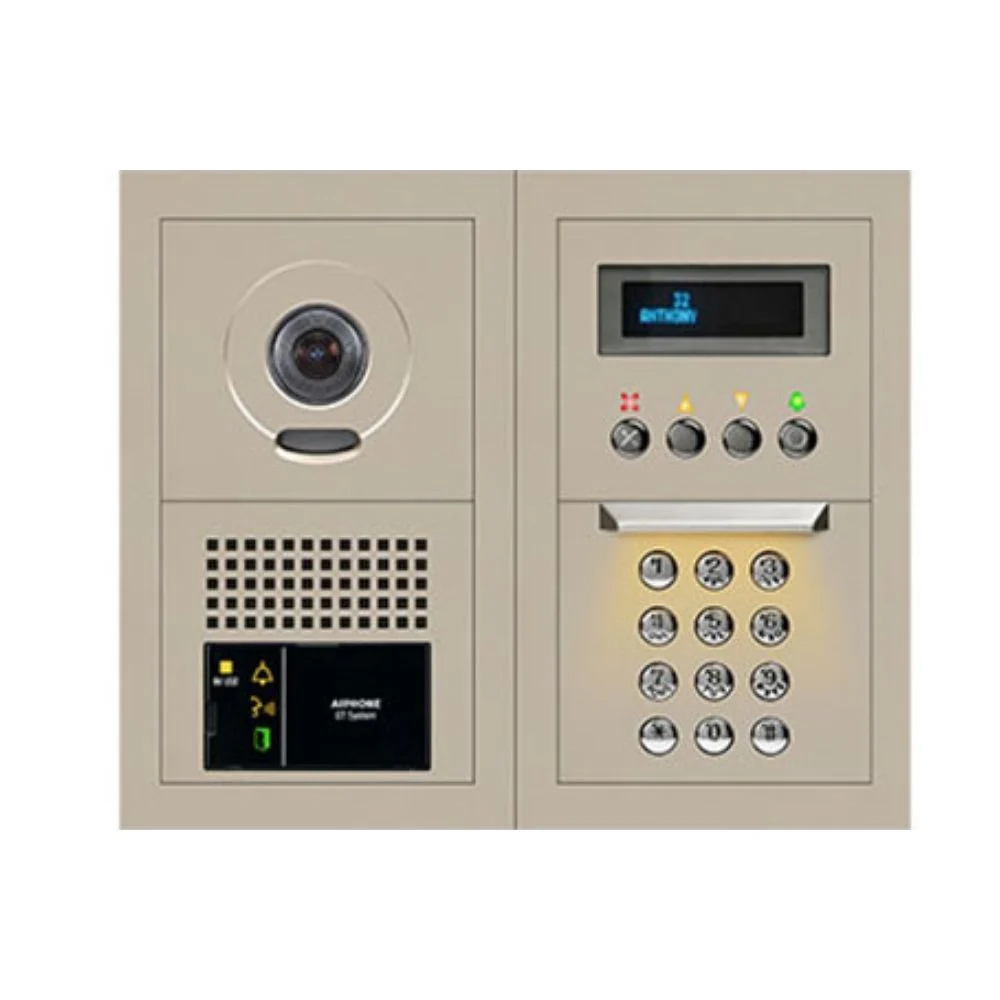

Aiphone 10-Key Video Entrance Panel Kit | AIP-GTV-DES202B

Upgrade your security system with the Aiphone 10-Key Video Entrance Panel Kit. Designed for both residential and commercial properties, this comprehensive kit provides a secure and user-friendly entry solution. Featuring a high-quality video panel with 10-key access, this system allows you to see and communicate with visitors before granting access, ensuring the safety and security of your premises.

Features

• Contains GT-DB audio module, GT-VB video module, and GT-NSB digital display and directory
• GT-10K keypad for direct dialing and access control
• Includes two GF-2F frames and two GF-2B flush back boxes
• VFD screen displays a customizable greeting message, tenant directory, and system status
• Surface mount with the stainless steel GT-202HB

Manufacturer's Limited Warranty

• 2 Years

Technical Specifications

• Power Source: 24V DC, use specified number of PS-2420UL per system configuration

• Communication: Hands-free from the entrance panel to the tenant station
• Capacity: Max. 16 Entry panels per system | Max. 4 Concierge stations per system | Max. 500 Tenant stations per system | Max. 4 Tenant stations per unit

• Wire: Two sets of 2-conductor, PE insulation (two common buses for audio & video) | Aiphone #872002, 2 conductors PE insulated, non-shielded, 11.05 pf/ft (Audio) | Aiphone #871802, 2 conductors PE insulated, non-shielded, 11.05 pf/ft (Video)

• Wiring Distance: GT-BC to farthest entrance: 980' | GT-BC to the farthest tenant (audio): 980' | GT-VBC to farthest entrance: 980' | GT-VBC to the farthest tenant (video): 500'

Product Literature

• Aiphone GTV-DES202B 10-Key Video Entrance Panel Kit Specifications Sheet
