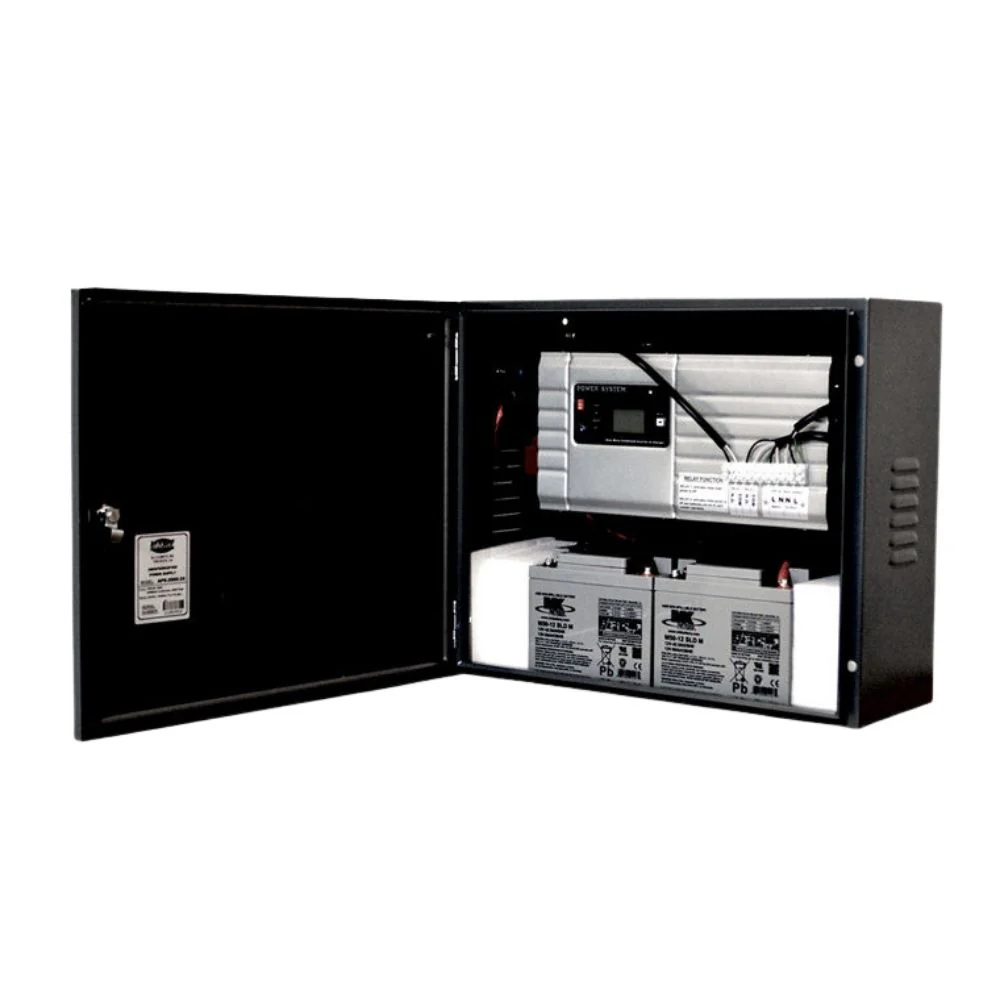

All-O-Matic Power Inverter 24V | ALL-APS-2000-24

A pure sine wave inverter that provides uninterrupted AC power for up to two ½ HP gate operators and their access control accessories in case of a power failure.

Used For:

• (4) - 1/2 HP Gate Operators or
• (2) - 1HP Gate Operators

Technical Specifications

• Input Voltage Waveform: Sinusoidal (utility or generator)
• Nominal Input Voltage: 120VAC 50/60Hz
• Output Voltage Waveform: Sinusoidal (utility or generator)
• Overload Protection: Circuit Breaker
• Output Short Circuit Protection: Circuit Breaker
• Efficiency (Line Mode): >95%
• Transfer Time (AC to DC): 10ms (typical)
• Transfer Time (DC to AC): 10ms (typical)
• Max Bypass Overload Current: 40A
• Output Voltage Waveform: Pure Sive Wave
• Rated Output Power VA/Watt: 2000
• Power Factor: 1.0
• Nominal On/put Voltage: 120VAC 50/60Hz (± 0.3Hz)
• Auto Tracking Main Frequency: Inverter will detect input frequency and will match it when in battery mode
• Output Voltage Regulation: ±10% RMS
• Nominal Efficiency: >80%
• Surge Power Rating: 4,000 VA/WATT
• Capable of starting electric motor: Instant Reverse gate motors: 4) 1/2HP or 2) 1HP
• Nominal DC Input voltage: 24V
• Battery Size: 2) 50Ahr
• Min DC Start Voltage: 2V
