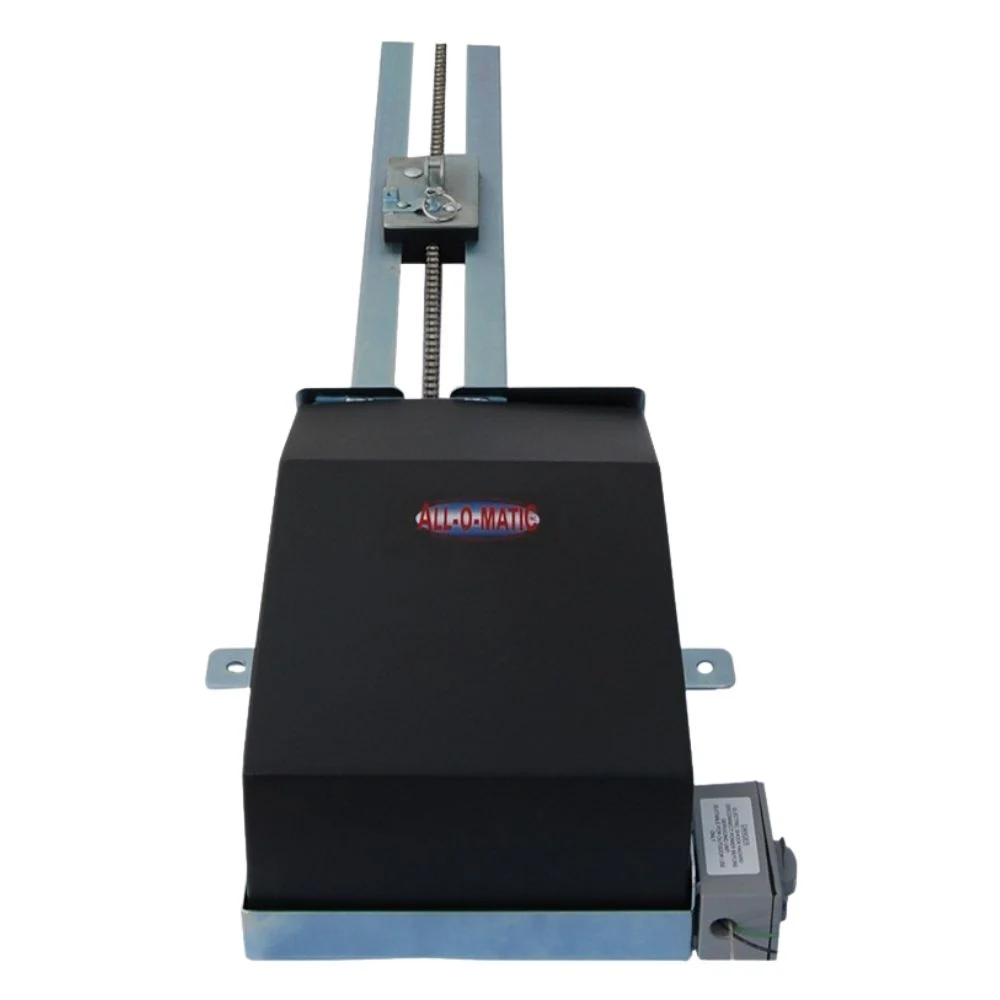

All-O-Matic Overhead Mount Gate Operator (1/2HP 120VAC 4.6amp) | ALL-OH-200AC

This is a commercial gate operator for overhead tilt-up gates. You will see this operator quietly operating gates for underground parking facilities and apartment/condo buildings. AC operators come with the simplest and most dependable control board in the industry that’s backward compatible. A powerful and durable motor that has been field-tested for over 20 years.

Technical Specifications

• Max Gate Weight: 800 lbs.
• Max Gate Length: 20 feet
• Warranty: 5 years commercial
• Motor: ½ HP motor
• Gate Speed: 20 seconds for full open (6.5’ to 8’ gate)
• Power Options: 120 VAC
• Duty Cycle: Continuous
• Temperature Range: -40 to 160°

• Gearbox Ratio: 30:1
• Size: 13” X 144” X 8”
• Shipping Weight: 100 lbs.
• Emergency Release: Lockable quick-release drive arm and carriage
• Belt Size: 4L-200 (AX18)
• Main Sprocket Size: 41B15X5/8
• Chain Size: 41NP
• Gearbox Sprocket: 41B15X5/8
• Breaker Requirement: 20 amp dedicated
• Gearbox Pulley: 2 ½” with ½” bore
• Motor Pulley: 2” with 5/8” bore
• Battery Back up: Not included

Product Literature

• All-O-Matic OH-200AC Brochure
• All-O-Matic OH-200AC Instruction Manual
• All-O-Matic OH-200AC Blowout Drawing
