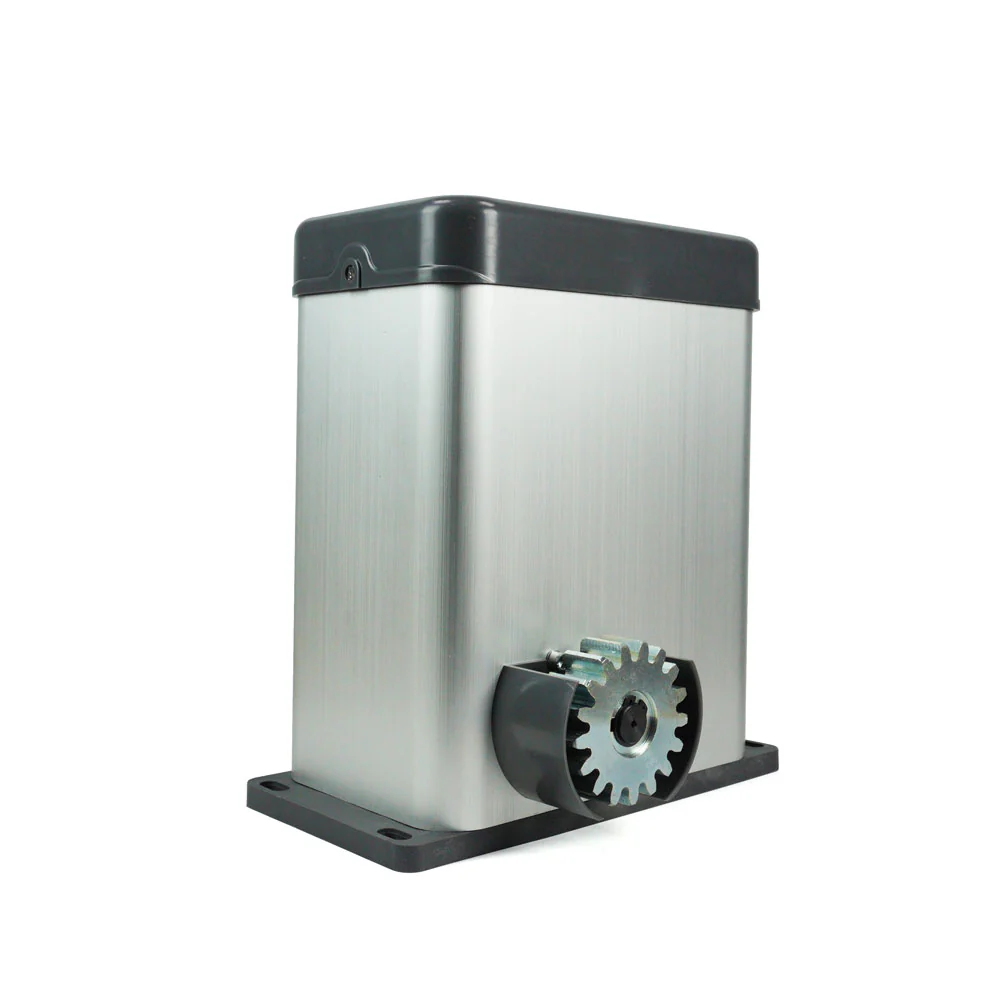

ASE J-Slide Rack and Pinion Slide Gate Opener | FAS-J-SLIDER&P300BBU

The FAS-J-SLIDER&P300BBU Rack and Pinion-driven Gate Operator operate by maneuvering gates attached to racks. The FAS-J-SLIDER&P300BBU slide gate operator will handle gates weighing up to 600 lbs and up to 20 feet in length.

Includes

• J-Slide Slide Gate Operator
• Built-in onboard 433 Mhz receiver
• 2 - 4.5Amp 12v Batteries
• 2 - FAS-J-4CHTX remote control transmitters

For safety, It Is imperative that safety devices be used to prevent injury or death. Please see the product option...

Features

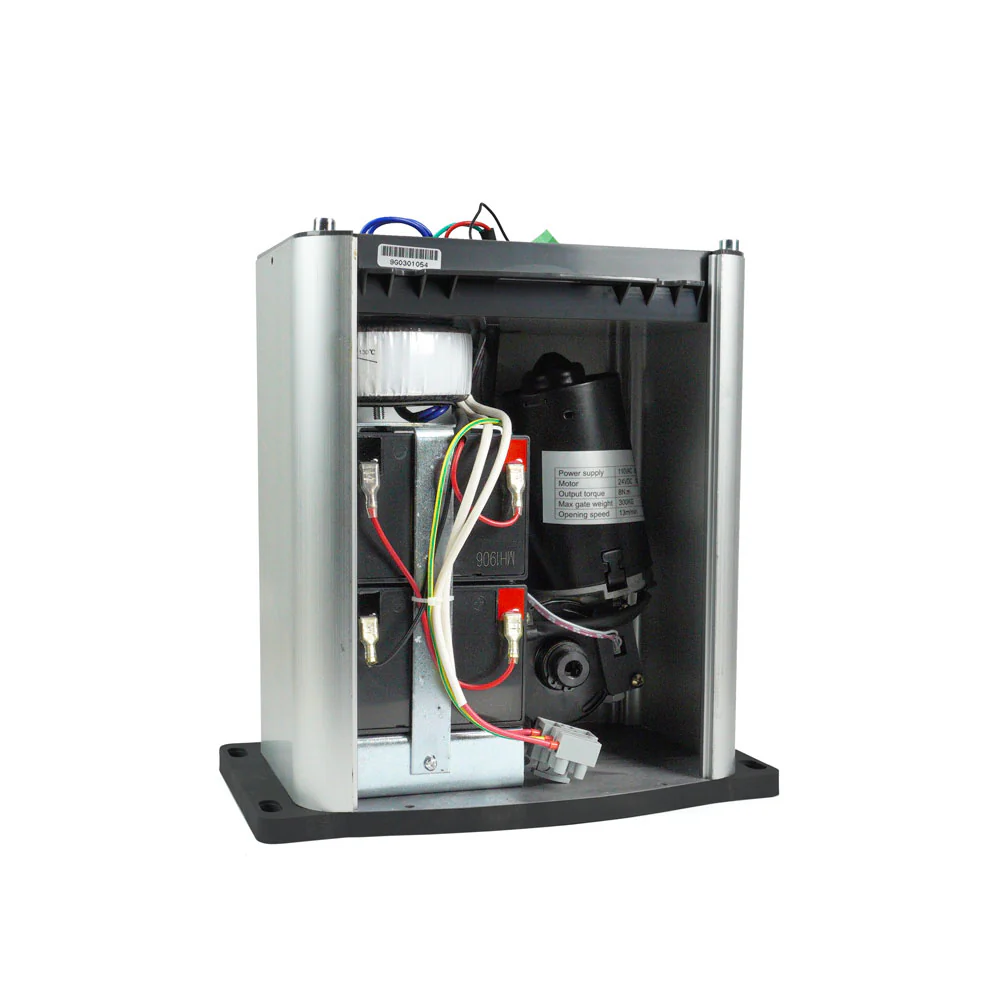

• Easy to Access Motor & Control Board
• Soft-start and slow-stop technology
• Manual key release design for emergency purposes
• Photo beam safety beam terminal
• Auto-reverse function
• In case of a power failure, the operator will be powered by a 24VDC, 1.3Ah backup battery
• Multiple interfaces (infrared, solar, external buttons)


Technical Specifications

• Power Supply: 110VAC
• Maximum gate weight: 600 lbs
• Maximum gate width: 20 ft
• Motor: 24VDC 100W
• Output torque: Max. 8N•m
• Work duty: S2 30min
• Limit switch: Electronic Limit
• Gate Move speed: 13m/min
• Remote control range: 100 ft
• Extra remote control: 20
• Frequency: 433.92 MHz
• Noise: 60 dB
• Working temperature: -20ºC ~ +50ºC
• Extra Battery: 24V 1.3 Ah

Here's Why The J-Slide Slide Gate Operator Is Such A Good Investment for Homeowners

Manufacturer's Warranty

• 2 Years

Product Literature

• FAS-J-SLIDER&P300BBU Rack and Pinion Manual
• FAS-J-SLIDER&P300BBU Rack and Pinion Brochure
• Warranty Disclaimer
