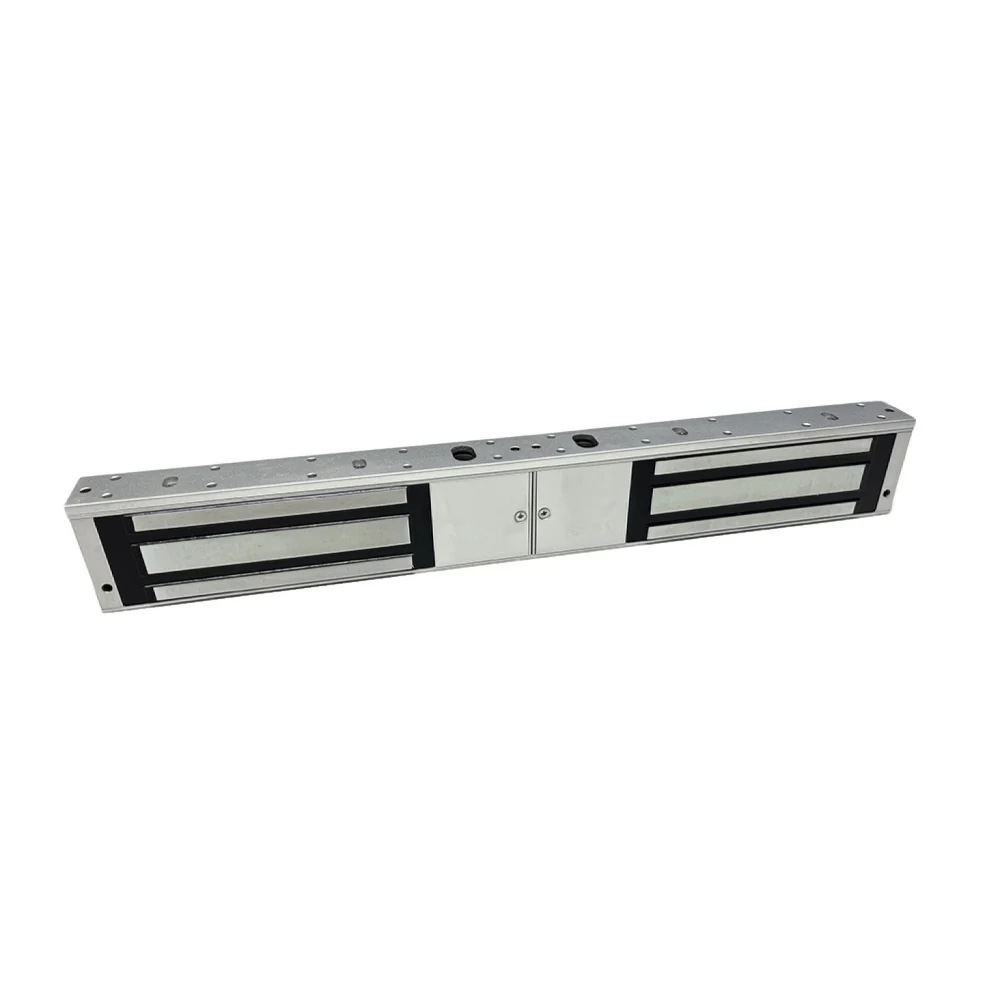

Surface Mount UL Listed Double Door Magnetic Lock | FAS-HUL2X1200LSDM

The HUL2X1200LSDM is a UL listed double-door magnetic lock, with 1200lb holding force for each door (total holding force of 2400 lbs.). It is surface mounts for use with double doors.

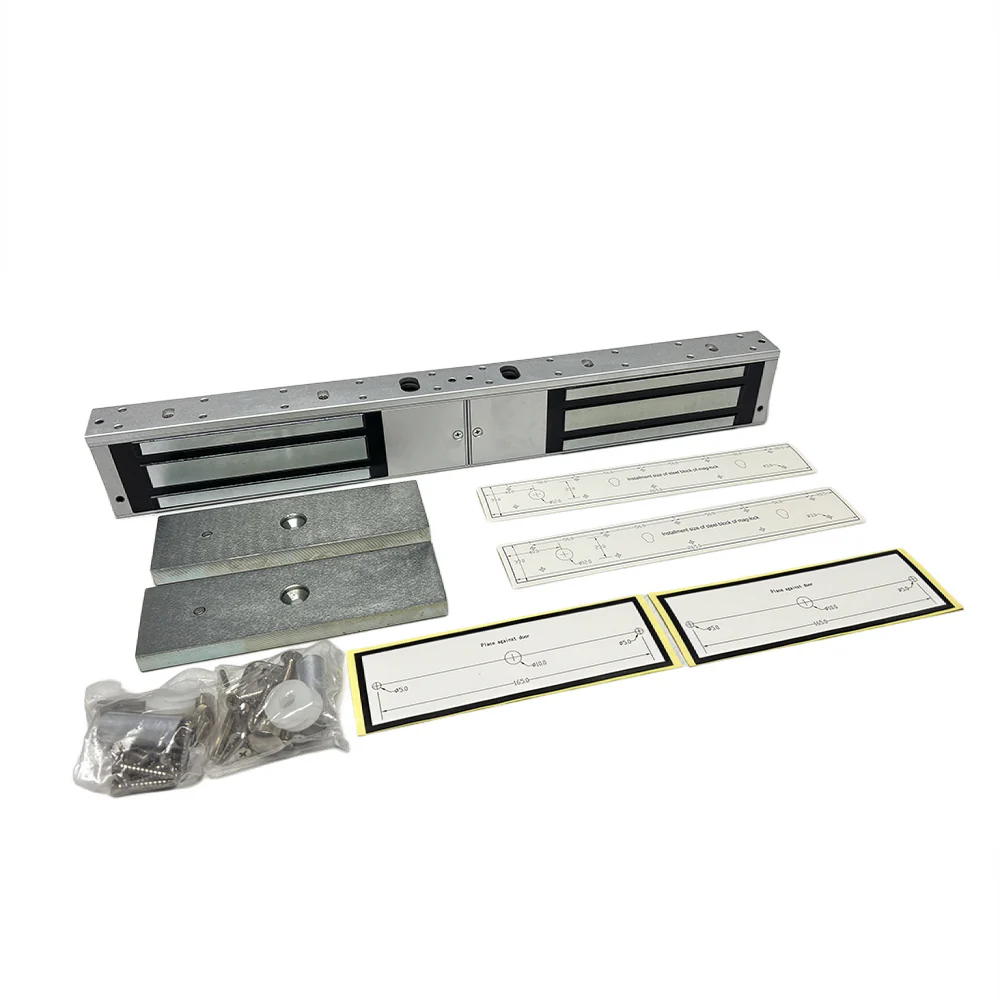

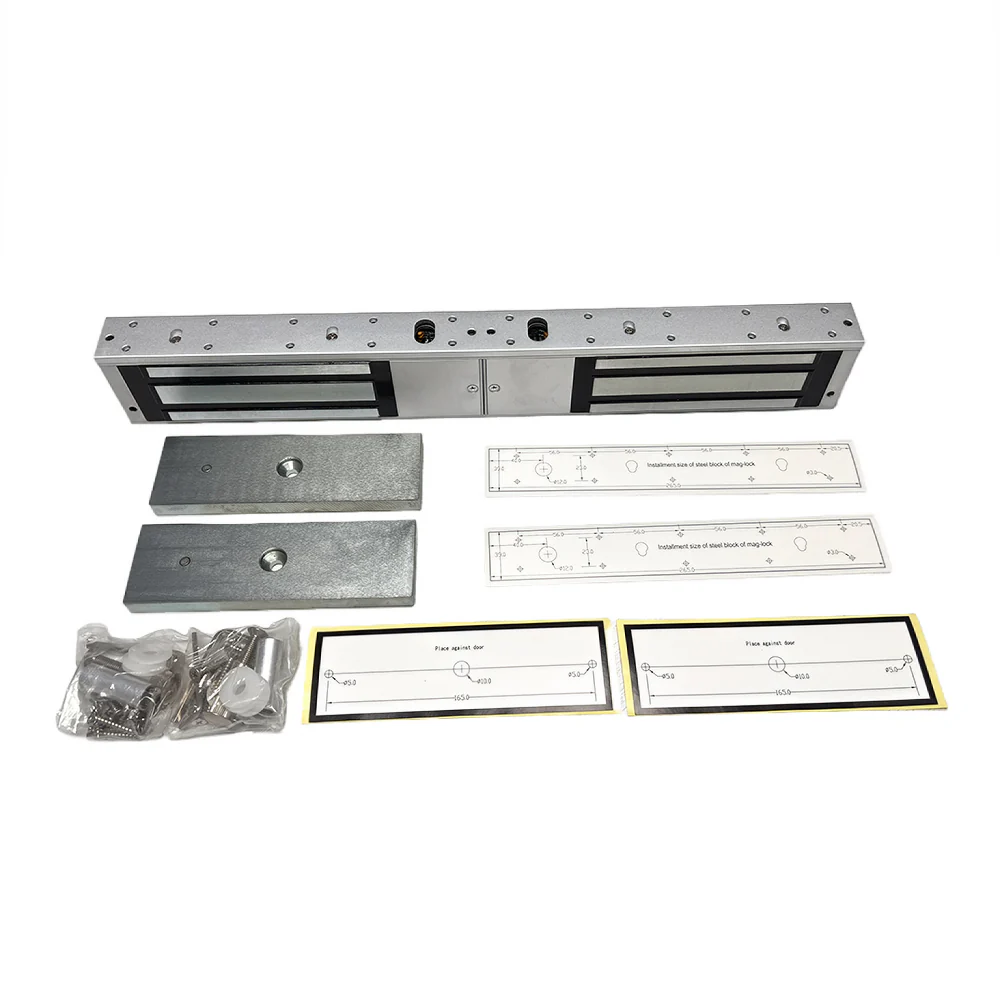

Includes

• Manual
• Armature Plate
• Mounting Hardware For Basic Out-swing Applications

Features

• Mount Type: Surface Mount Double Door
• Delay: Yes
• Monitoring: Yes
• LED: Yes
• Lock Sensor: Yes
• Build-In Voltage Spike Suppressor: Yes
• UL Listed: Yes
• CE Approved: Yes

Technical Specifications

• Holding Force: 2400 Lbs. (1200 Lbs. Holding Force Per Door)
• Dimensions: 21 x 2.9 x 1.6
• Weight: 24 lb.
• Dual Voltage Current Draw: 500mA/12V 250mA24V

Manufacturer's Warranty

• 1 Year

Note

• **In-Swing applications of this maglock require brackets (available above)
• **Magnetic locks require power a supply (available above)

Product Literature

• 1200LSDM Manual
• Double Maglock Illustration
