BEA LED Signal Column Lights

UL Listed Single Color Light

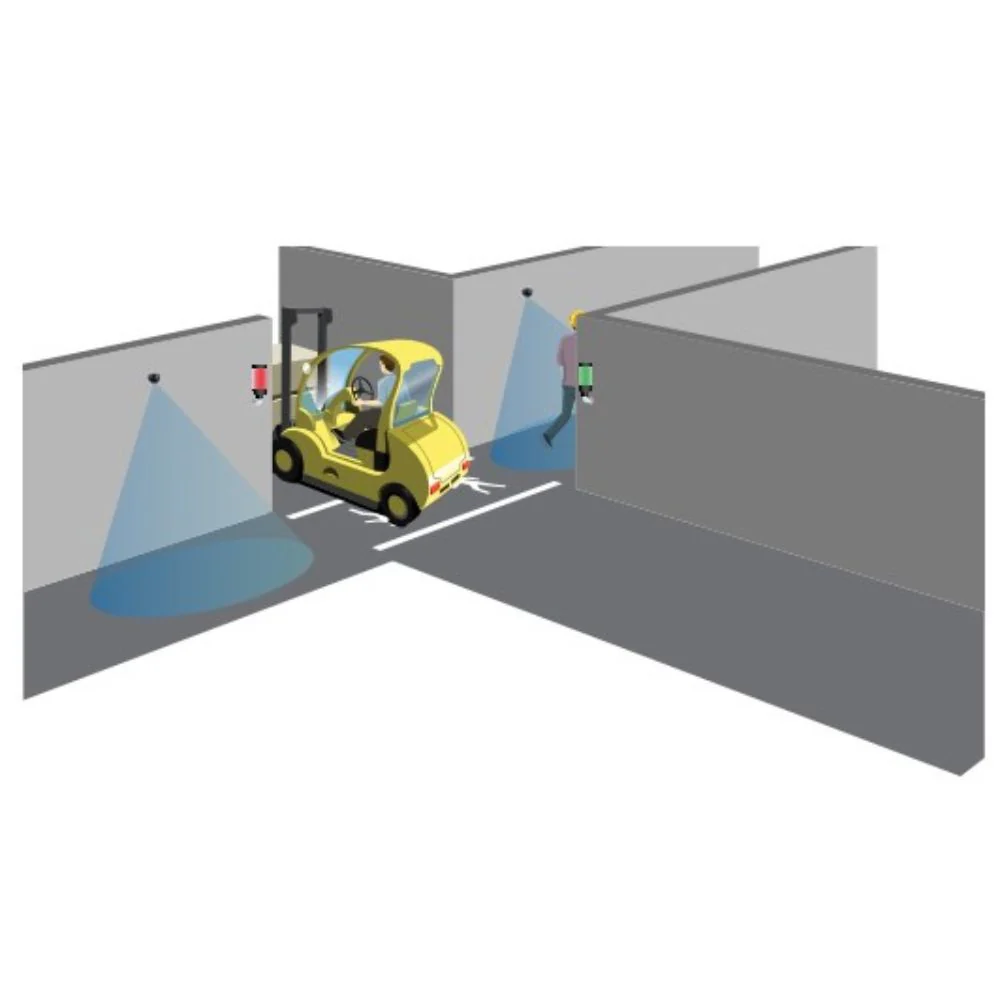

BEA’s LED SIGNAL COLUMN LIGHTS are designed for use in warning indication, industrial automation, and vehicle sensing applications.

The column lights can be ordered in three light colors. LED color options include red, green and yellow.

Features

• Standards compliant - UL Listed
• Ideal for harsh environments - IP67 rating for maximum performance in harsh environments.
• Three highly visible colors - LED colors available include red, green and yellow.
• Selectable voltage - 18 – 30 VDC supply voltage.

Specifications

• Supply Voltage: 18 – 30 VDC
• Indicator Response Time
• Off Response: 10 ms
• On Response: 10 ms
• LED Colors: Red, Green or Yellow
• Connector: 78” / 4-wire integral cable
• Operating Temperature: -40 – 122 °F / 95% @ 122 °F maximum relative humidity (non-condensing)
• Degree of Protection: IP67
• Norm Conformity: CE, UL 1598 Listed, UL 8750 Listed

Product Literature

• BEA LED Signal Column Lights User Guide
• BEA LED Signal Column Lights Cut Sheet
