BEA QUADSCAN Active Infrared Presence Sensor

Product image 1
1 / 3

BEA QUADSCAN Active Infrared Presence Sensor

BEA QUADSCAN Active Infrared Presence Sensor

Door mounted, active infrared safety sensor.

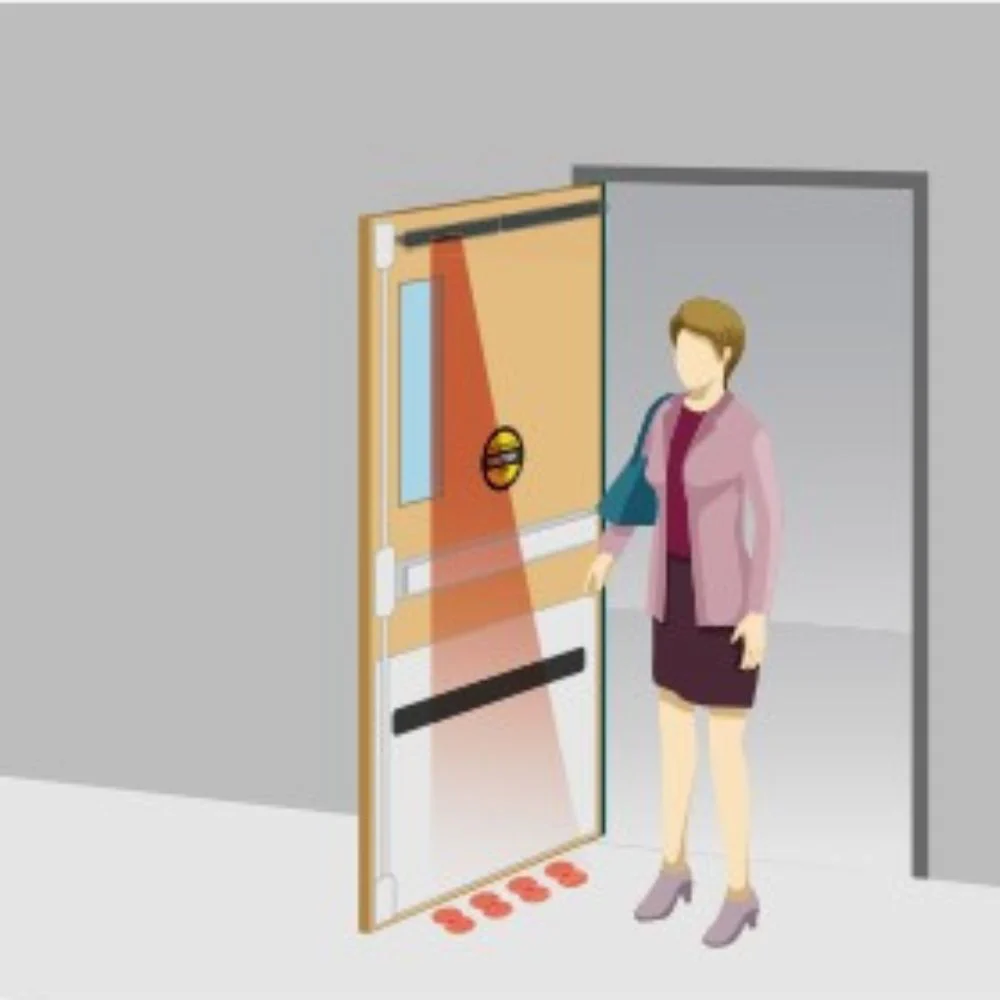

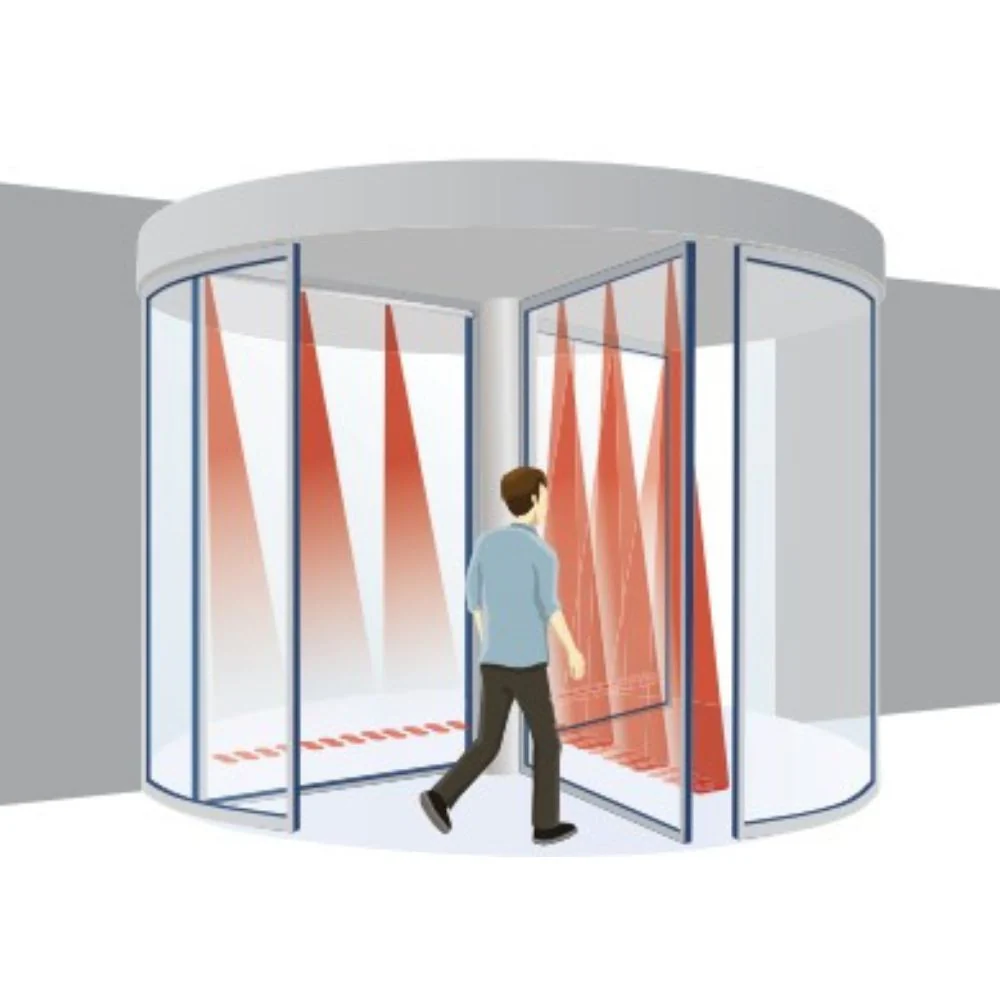

BEA’s QUADSCAN is a presence sensor designed for use on pedestrian automatic swinging doors. The QUADSCAN can be mounted at heights ranging from 43 to 118 inches. At a 78-inch-mounting height, four active infrared safety spots provide approximately 15.75 inches of safety protection per sensor. The QUADSCAN output offers individual safety side and approach side relays.

Features
  • Easy setup and install - Easy installation and setup without the need for remote control.
  • Independent relays - Independent relays for approach and safety side.
  • Customizable - Four DIP switches for user-friendly adjustments; Primary/secondary configuration for ease of wiring.
  • Standards compliant - External monitoring for improved system safety when paired with a monitoring-capable door control (requires a monitoring-capable door control)
  • QUADSCAN I - 1 module, 34.5-inch end cap to end cap
  • QUADSCAN II - 2 modules, 40-inch end cap to end cap for a 42-inch door leaf
Specifications
  • Technology: Active Infrared
  • Mounting Height: 3’ 7” – 9’ 10”
  • Max. Number of Modules: 4; up to 6 if 24 VDC
  • Detection Field at Finished Floor: 15 3/4” (W) × 2 3/4” (D) @ 78” (H)
  • Range Adjustment: Mechanical range adjustment screw
  • Reaction Time: 64 ms (typical)
  • Input: 1 optocoupler (free of potential contact)
    • Max. Contact Voltage: 30 V
    • Voltage Threshold: High: > 10 VDC; Low: < 1 VDC
  • Output: 2 Relays Free of Potential Contact
    • Max. Contact Voltage: 42 VAC / VDC
    • Max. Contact Current: 1 A (Resistive)
    • Max. Switching Power: 30 W (DC); 60 VA (AC)
  • Supply Voltage: 12 V – 24 VAC ±10%, 12 V – 30 VDC −5%; 10%
  • Max Power Consumption: 65 mA @ 24 VAC; Each Module 75 mA @ 24 VDC
  • Object Reflectivity: Min. 5% @ IR-wavelength of 850 nm
  • Degree of Protection: IP53
  • Temperature Range: -13 – 131 ºF (-25 – 55 ºC) 0 – 95% Relative Humidity, Non-condensing
  • Norm Conformity: EMC 2004 / 108 / EC; MD 2006 / 42 / EC; EN ISO 13849-1:2008; Performance Level CAT 2; EN 12978
Product Video
Product Literature
Select Model
From $93.00

Original: $309.99

-70%
BEA QUADSCAN Active Infrared Presence Sensor—

$309.99

$93.00

Product Information

Shipping & Returns

Description

BEA QUADSCAN Active Infrared Presence Sensor

Door mounted, active infrared safety sensor.

BEA’s QUADSCAN is a presence sensor designed for use on pedestrian automatic swinging doors. The QUADSCAN can be mounted at heights ranging from 43 to 118 inches. At a 78-inch-mounting height, four active infrared safety spots provide approximately 15.75 inches of safety protection per sensor. The QUADSCAN output offers individual safety side and approach side relays.

Features
  • Easy setup and install - Easy installation and setup without the need for remote control.
  • Independent relays - Independent relays for approach and safety side.
  • Customizable - Four DIP switches for user-friendly adjustments; Primary/secondary configuration for ease of wiring.
  • Standards compliant - External monitoring for improved system safety when paired with a monitoring-capable door control (requires a monitoring-capable door control)
  • QUADSCAN I - 1 module, 34.5-inch end cap to end cap
  • QUADSCAN II - 2 modules, 40-inch end cap to end cap for a 42-inch door leaf
Specifications
  • Technology: Active Infrared
  • Mounting Height: 3’ 7” – 9’ 10”
  • Max. Number of Modules: 4; up to 6 if 24 VDC
  • Detection Field at Finished Floor: 15 3/4” (W) × 2 3/4” (D) @ 78” (H)
  • Range Adjustment: Mechanical range adjustment screw
  • Reaction Time: 64 ms (typical)
  • Input: 1 optocoupler (free of potential contact)
    • Max. Contact Voltage: 30 V
    • Voltage Threshold: High: > 10 VDC; Low: < 1 VDC
  • Output: 2 Relays Free of Potential Contact
    • Max. Contact Voltage: 42 VAC / VDC
    • Max. Contact Current: 1 A (Resistive)
    • Max. Switching Power: 30 W (DC); 60 VA (AC)
  • Supply Voltage: 12 V – 24 VAC ±10%, 12 V – 30 VDC −5%; 10%
  • Max Power Consumption: 65 mA @ 24 VAC; Each Module 75 mA @ 24 VDC
  • Object Reflectivity: Min. 5% @ IR-wavelength of 850 nm
  • Degree of Protection: IP53
  • Temperature Range: -13 – 131 ºF (-25 – 55 ºC) 0 – 95% Relative Humidity, Non-condensing
  • Norm Conformity: EMC 2004 / 108 / EC; MD 2006 / 42 / EC; EN ISO 13849-1:2008; Performance Level CAT 2; EN 12978
Product Video
Product Literature
