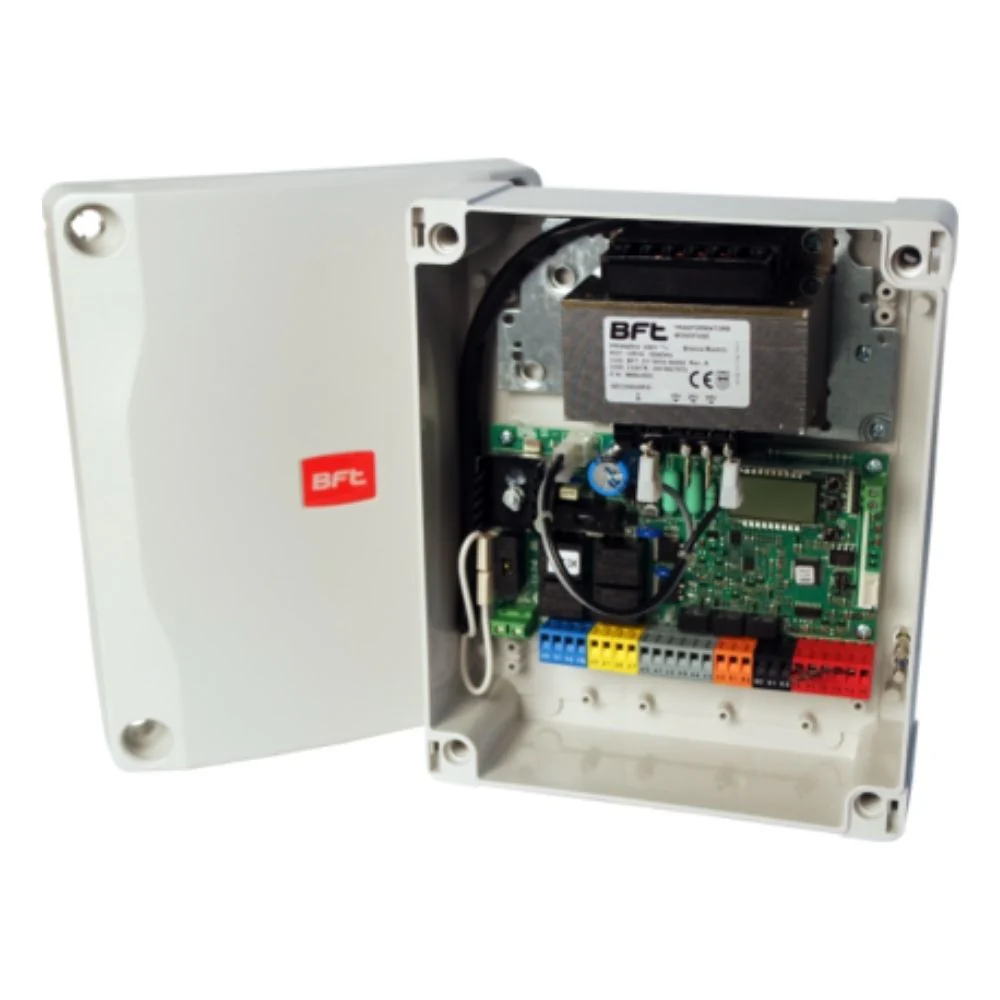

BFT THALIA Board Lite SD 120V for Phobos/Kustos/Igea | BFT-D113745-00001

Application: control panel with display for one or two 24V electromechanical operators for swing gates Board power supply: 120V single-phase Operators power supply: 24Vdc 180W max each operator.

Features

• New standard color removable terminal blocks
• Simplified scenario-based programming with display and integrated dual-channel receiver
• D-Track anti-crushing system
• Slowdown during opening and closing and electronic self-learning
• Main functions: automatic re-closing, fast closing, partial opening, deadman feature
• Compatibility: LIBRA C MA, LIBRA, LIBRA R, LIBRA MA R

Technologies

• U-link A single communication platform for all types of control units and receivers. The innovative interconnectivity systems developed by Bft along with wireless connection solutions in the field of access point automation become integrated through the new U-link system communication protocol. A technology designed and developed to operate using specific gateways for any type of physical media and communication protocol. To fully facilitate installers in creating the system and in maintenance, Bft can offer solutions based on Bluetooth transmission systems in local and TCP/IP environments for remote connection. U-Link ensures an absolutely stable standard, correct communication, as well as secure data protection thanks to two levels of encryption, offered by the data encryption system and password of the protocol and by the underlying communication system. - U-Link is a technological platform that forms the heart of Bft products - U-link uses an open approach: by changing the B-Eba, Bft proprietary gateway, it is possible to adapt to many different communication languages - U-link is flexible: it can work with or without a network connection, depending on the B-Eba gateway installed - U-Link enables remote maintenance of the products thanks to two-way communication - U-link is scalable: an infinite number of objects can be added to a U-link network - U-Link allows the creation of groups of products: various B-Ebas can be grouped to allow individual or group control of the associated products U-link is an innovation that turns products into Bft solutions.
• d-track The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climatic and temperature conditions and degree of mechanical wear.
• 24V A precise, safe, and reliable technology Bft 24V technology ensures optimum performance with a precise adjustment of a slowdown in closing and opening. Safety is another key aspect, ensuring the immediate stopping and reversal of movement in the presence of obstacles. The efficiency of the technology is a guarantee of the product's reliability.

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Interconnectivity: Yes
• Maximum output: 0 W (180+180 W)
• Board power supply: 110-120 V
• Max. n. transmitters: 63
• Programming: Display
• Power supply accessories: 24V - 1A
• Light sensor: 1
• Safety edge: 1
• Resistive edge: 1
• Tested photocell: 1
• Tested safety edge: 1
• Stop: 1
• Start: 1
• Traffic light control: 1
• Open: 1
• Close: 1
• Pedestrian open: 1
• Open with timer: 1
• Pedestrian open with timer: 1
• Blinker: 1
• Configurable AUX 1: 0
• Configurable AUX 2: 0
• Configurable AUX 3: 0
• Solenoid Lock: 0

Product Literature

• BFT D113745 00001 Instruction Manual
