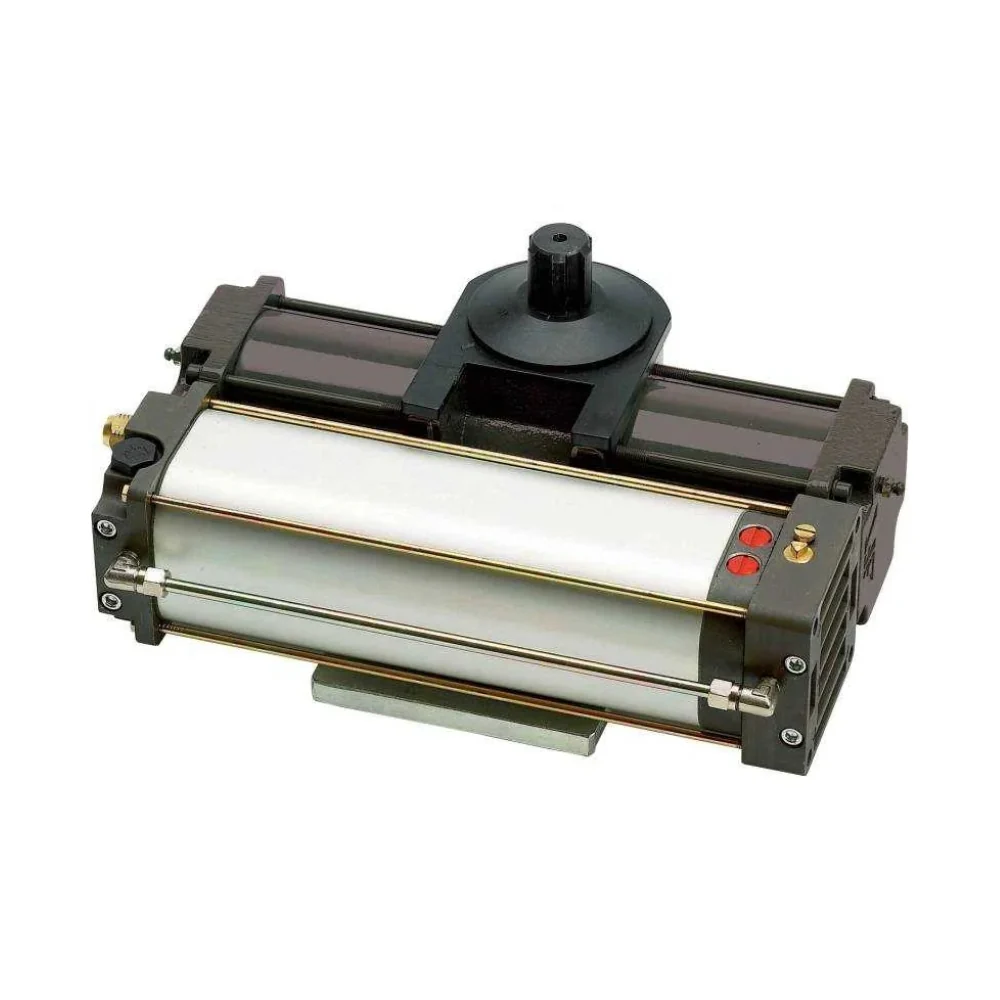

BFT SUB G SC 230V Underground Swing Gate Operator Right -180 Degree Opening | BFT-P930010-00005

In-ground 230 V hydraulic operator, Triangle key for hinged leaves up to 6'. Manoeuvre time 33 s. Right operator.

Features

• The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.
• The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to the needs of each situation.
• Control unit with programming display and new, simplified scenario-based programming

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control unit: RIGEL 6
• Board power supply: 230 V
• Motor voltage: 230 V
• Power consumption: 250 W
• Max. width of door/gate wing: 6 ft (1.8 m)
• Max. weight of door/gate wing: 1763 lbs (800 kg)
• Maximum angle: 180 °
• Cycle time: 33 s
• Type of limit switch: Work time
• Slowdown: No
• Locking: Open/close hydraulics
• Release: Triangle key
• Impact reaction: Hydraulic clutch
• Frequency of use: Very intensive
• Protection rating: IP67
• Environmental conditions: 14 ÷ 140 °F (-10 ÷ 60 °C)
• Interconnectivity: No

Product Video

Product Literature

• BFT P930010 00005 Instruction Manual
• BFT P930010 00005 Spec Sheets
