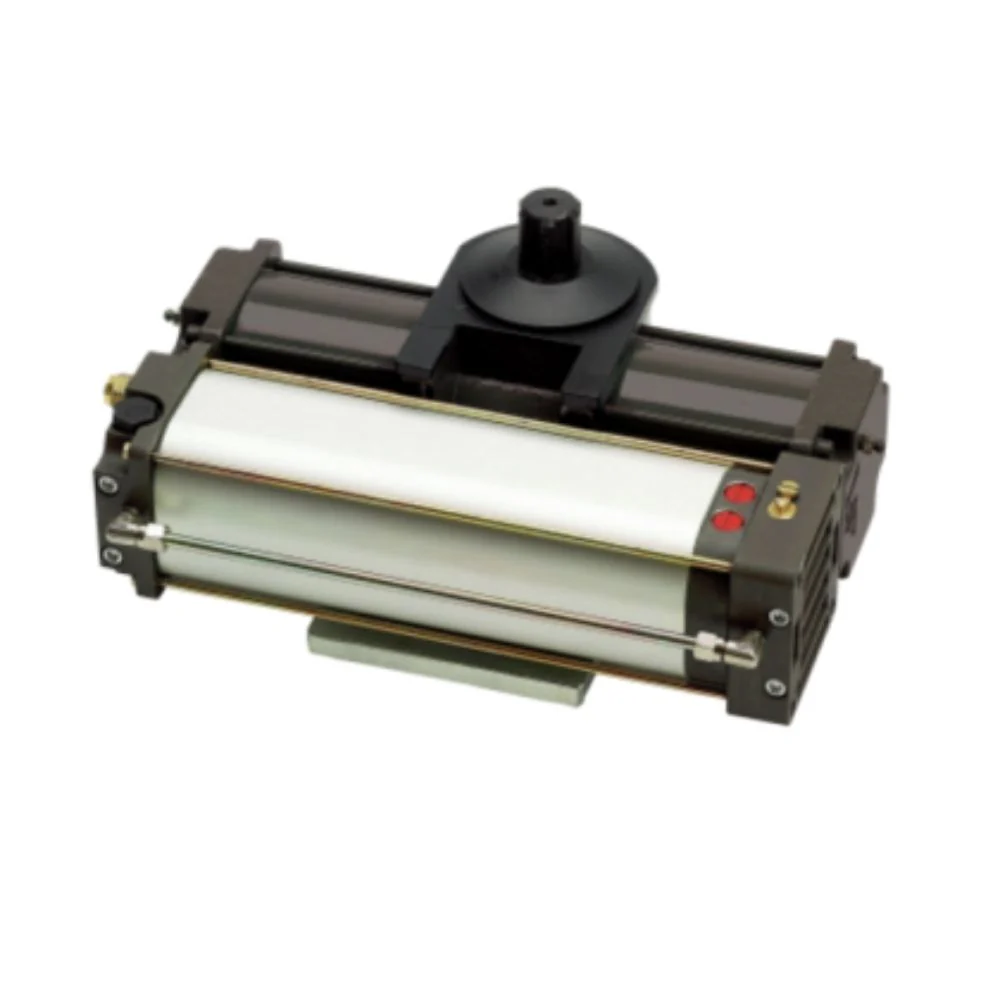

BFT SUB R UL/CSA 120V Underground Swing Gate Operator - Right Side with CID DX | BFT-P930012-00007

In-ground 120 V irreversible hydraulic operator for swing gates up to 11.5' with slowdown. Maneuver time 14+slowdown s. Right operator.

Features

• The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.
• The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to the needs of each situation.
• Control unit with programming display and new, simplified scenario-based programming

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control unit: RIGEL 6
• Board power supply: 230 V
• Motor voltage: 120 V
• Power consumption: 250 W
• Max. width of door/gate wing: 11.5 ft (3.5 m)
• Max. weight of door/gate wing: 1763 lbs (800 kg)
• Maximum angle: 130 °
• Cycle time: 14+slowdown sec
• Type of limit switch: Work time
• Slowdown: Yes
• Locking: Open/close hydraulics
• Release: Non-reversing
• Impact reaction: Hydraulic clutch
• Frequency of use: Very intensive
• Protection rating: IP67
• Environmental conditions: 14 ÷ 140 °F (-10 ÷ 60 °C)
• Interconnectivity: No

 Product Video

Product Literature

• BFT SUB R and G Manual
• BFT SUB Spec Sheets
• BFT SUB Cut Sheets
