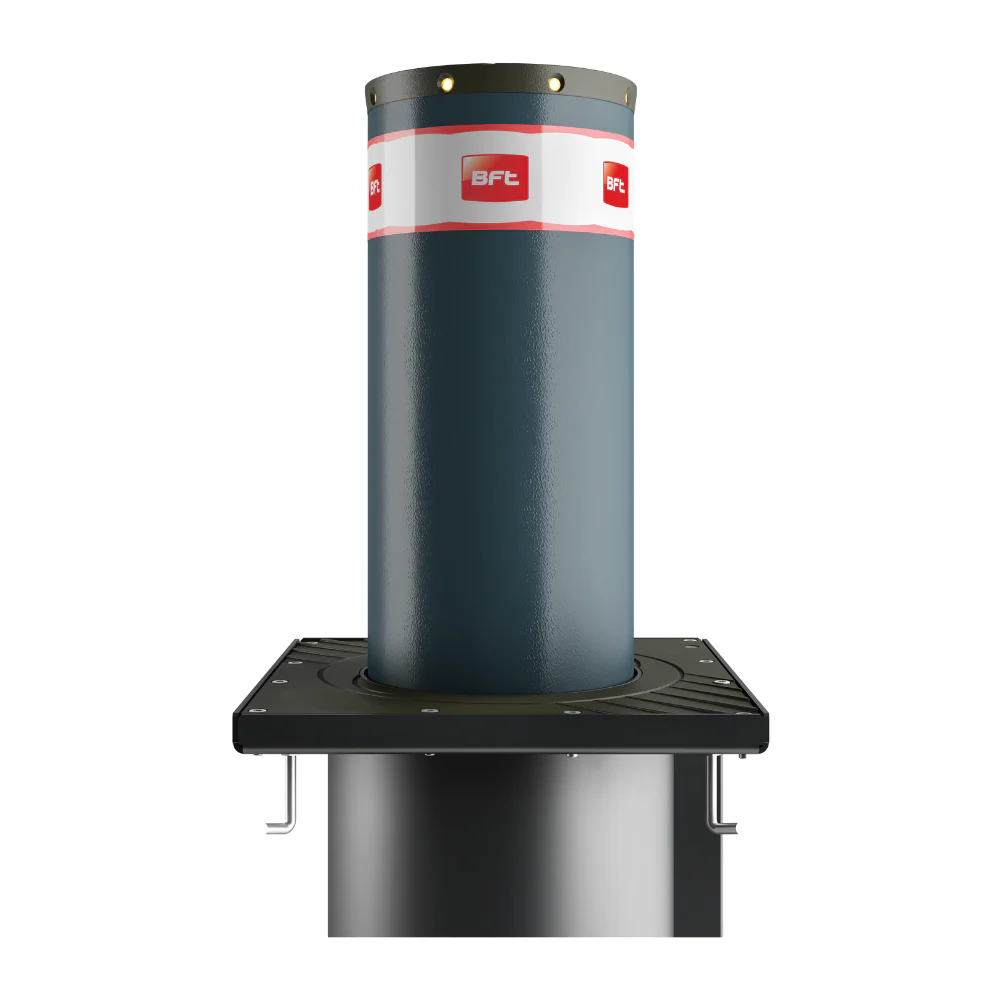

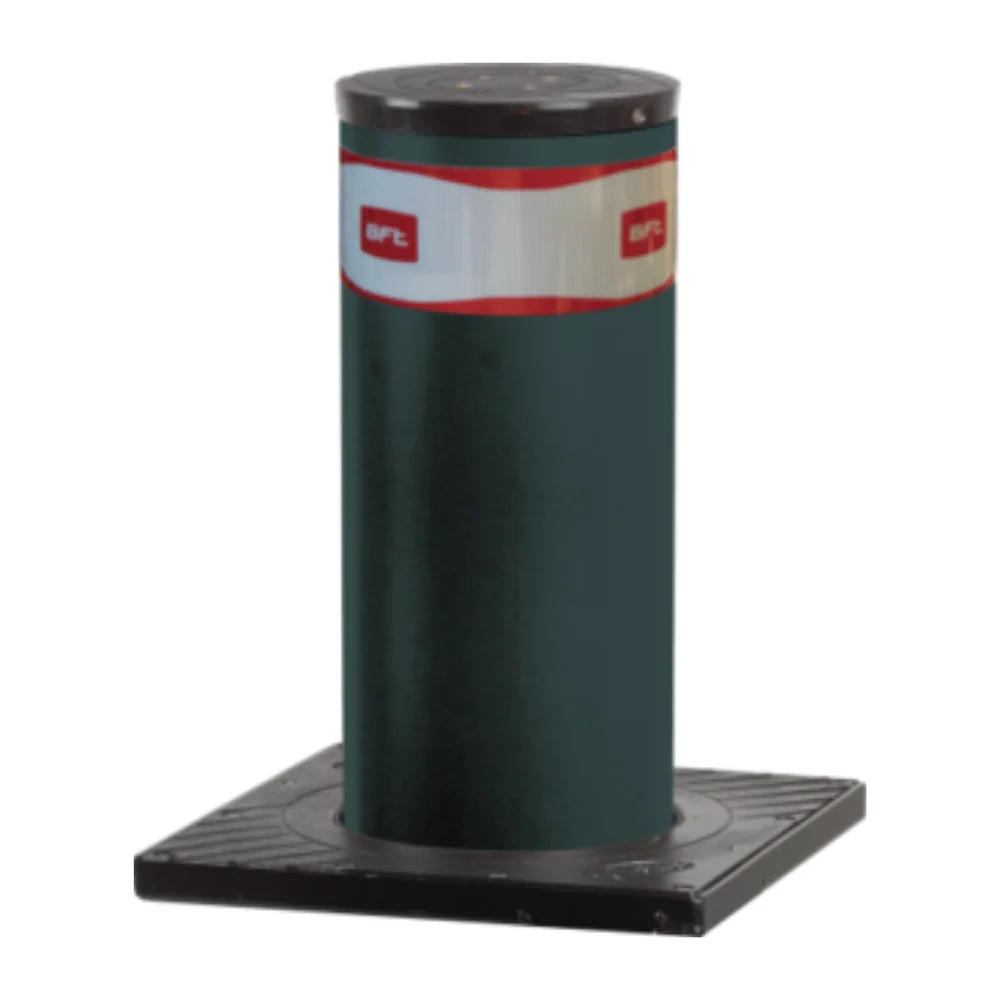

BFT PILLAR B 275/600.6C L Hydraulic Bollard | BFT-P970092-00001

BFT PILLAR B 275/600.6C L- 230 V hydraulic bollard, shaft height 23.62" and a diameter of 10.75". LED light cap and adhesive strip: 3.94", approved. The shaft automatically lowers in case of a power failure. Painted steel version, RAL 7015. Foundation box included. Cap with lights.

Technologies

• Easy This solution, included in the range of BFT hydraulic bollards, allows quick maintenance without the use of a shaft lifting crane.

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control unit: PERSEO CBE 230. P SD
• Opening or closing time: 5 s
• Rod height: 23.62 inches (600 mm)
• Rod thickness 0.24 inch (6mm)
• Type of limit switch: REED magnetic sensor
• Slowdown: No
• Impact resistance: 20,000 J
• Break-in proof: 250,000 J
• Manual cycle: reversible in the absence of voltage
• Frequency of use: 3000 Op/gg
• Protection rating: IP67
• Environmental conditions: -40 ÷ 140 °F (-40 ÷ 60 °C)
• Interconnectivity: No
• Material: Fe 360 (S 235 JR) Carbon Steel (~ASTM A36)
• Rod treatment: RAL7015 cataphoresis coating and paint
• Power supply: 230 V
• Rod diameter: 10.75 inches (273 mm)
• Includes 33ft (10m) multi-cable

Product Literature

• BFT PILLAR B 275/600.6C L Manual
• BFT PILLAR B 275/600.6C L Spec Sheet
