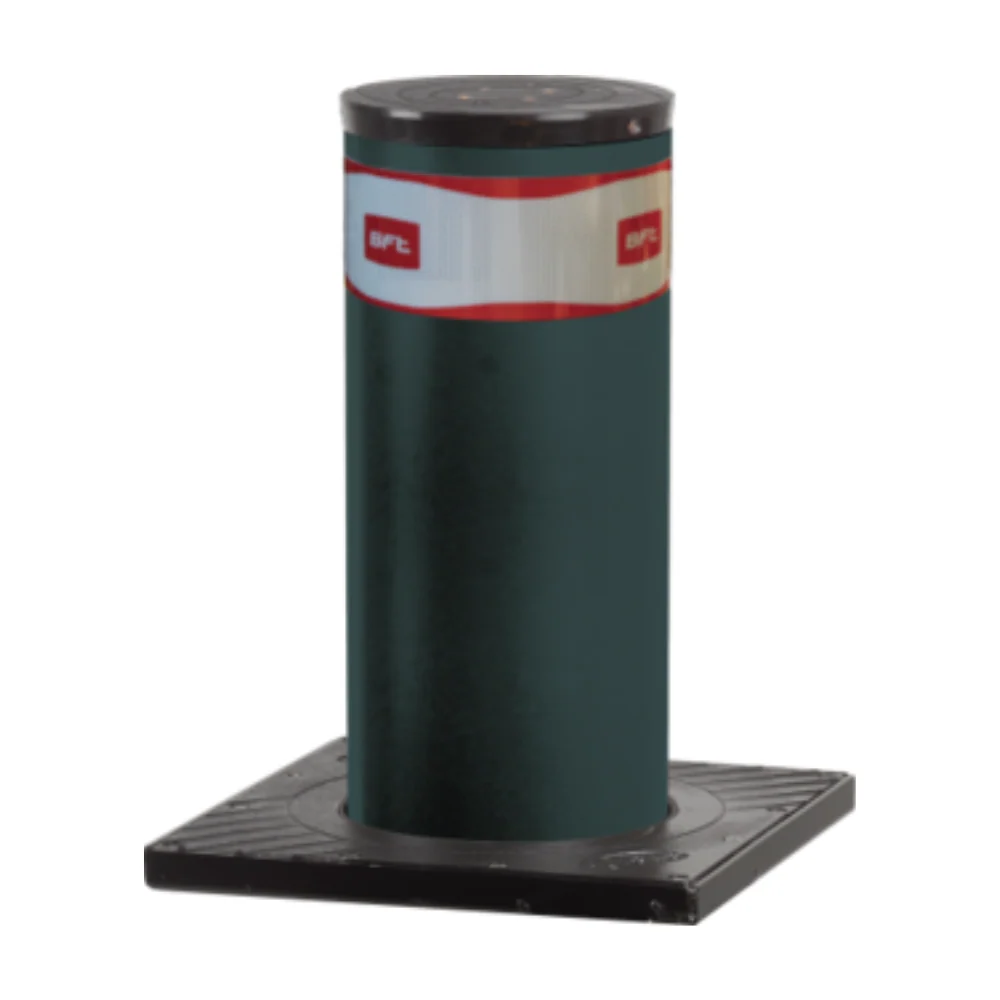

BFT PILLAR B 275/800.6C L Hydraulic Bollard | BFT-P970093-00001

BFT PILLAR B 275/800.6C L - 230V hydraulic bollard, shaft height 31.5" and a diameter of 10.75". LED light cap and adhesive strip: 3.94". The shaft automatically lowers in case of a power failure. Painted steel version, RAL 7015. Foundation box included. Cap with lights.

Technologies

• Easy This solution, included in the range of BFT hydraulic bollards, allows quick maintenance without the use of a shaft lifting crane.

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control unit: PERSEO CBE 230. P SD
• Opening or closing time: 6 s
• Rod height: 31.5" (800 mm)
• Rod thickness: 0.24" (6 mm)
• Type of limit switch: REED magnetic sensor
• Slowdown: No
• Impact resistance: 20,000 J
• Break-in proof: 250,000 J
• Manual cycle: reversible in the absence of voltage
• Frequency of use: 3000 Op/gg
• Protection rating: IP67
• Environmental conditions: -40 ÷ 140 °F (-40 ÷ 60 °C)
• Interconnectivity: No
• Rod treatment: RAL7015 cataphoresis coating and paint
• Power supply: 230 V
• Rod diameter: 10.75" (273 mm)

Product Literature

• BFT PILLAR B 275/800.6C L Manual
• BFT PILLAR B 275/800.6C L Spec Sheet
