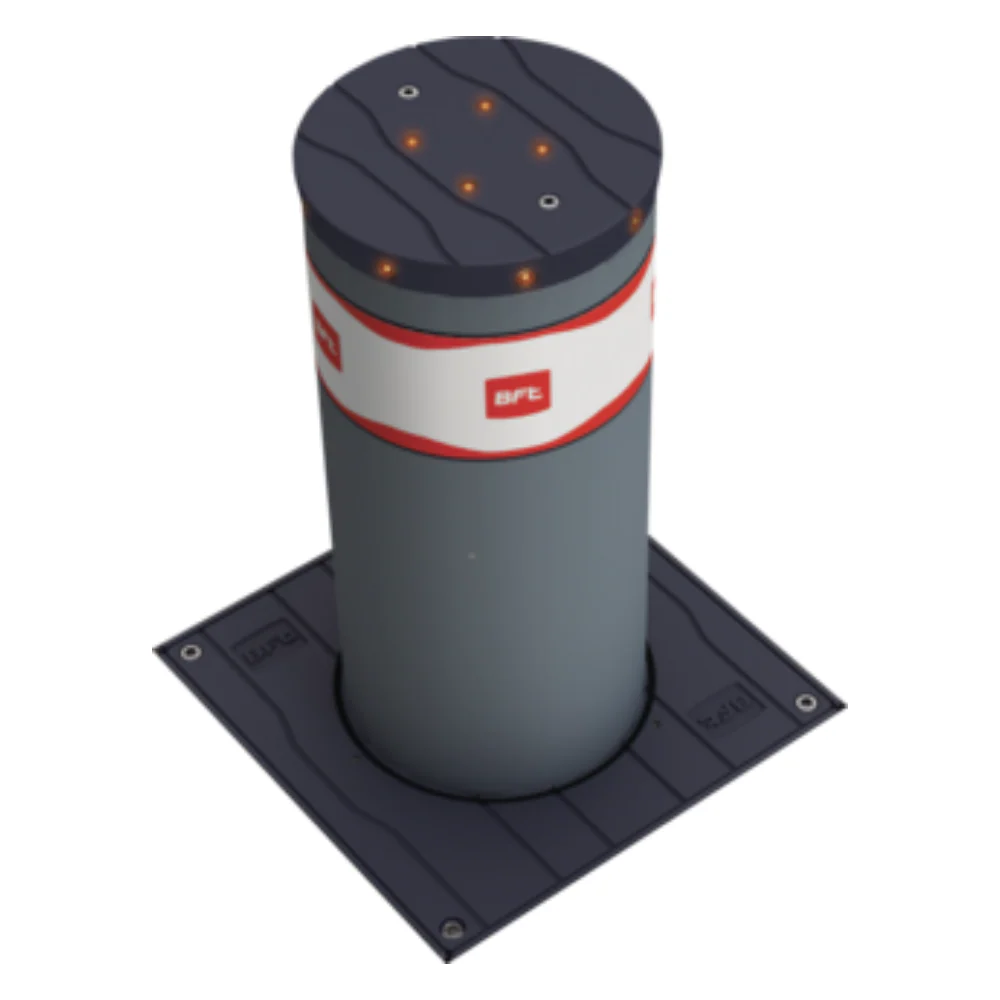

BFT STOPPY MBB KIT 219/700.C 230 L C Electromechanical Bollard | BFT-R950009-00003

BFT STOPPY MBB KIT 219/700.C 230 L C -Electromechanical bollard with foundation box, with shaft height 27.56" and diameter 8.62". Impact resistance 10500 J. Cap with integrated lights and buzzer. Painted stainless steel version, RAL 7015.

Features

• The option of supplying as an integrated unit or with an outer casing separate from the operator allows the installer to complete digging and preparation for installation ahead of time.
• The new square flange allows for perfect architectural integration and hence better insertion into the full range of urban contexts.
• The conical stem cap and EPDM flange gasket provide highly effective protection against foreign matter entering between the stem and the outer casing, thus making the unit maintenance-free.
• Bollard Lowers Automatically in case of a Power Outage
• High reflective sticker H = 4” (100 mm)
• Includes 33ft (10m) multi-cable

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control unit: PERSEO CBE 230.P SD
• Power consumption: 300 W
• Opening or closing time: 9 s
• Rod height: 27.56" (700 mm)
• Type of limit switch: REED magnetic sensor
• Slowdown: Yes
• Impact resistance: 10,500 J
• Break-in proof: 150,000 J
• Manual cycle: Reversible in the absence of voltage
• Frequency of use: Very intensive
• Protection rating: IP67
• Environmental conditions: -40 ÷ 140 °F (-40 ÷ 60 °C)
• Interconnectivity: No
• Power supply: 230 V
• Rod diameter: 8.62" (219 mm)
• Rod treatment: RAL7015 cataphoresis coating and paint

Product Literature

• BFT STOPPY MBB KIT 219/700.C 230 L C Manual
• BFT STOPPY MBB KIT 219/700.C 230 L C Spec Sheet
