D&D Technologies SureClose ReadyFit RF 108 S Aluminum Hinge/Closer | DND-74108313T
D&D Technologies SureClose ReadyFit RF 108 S Aluminum Hinge/Closer | DND-74108313T

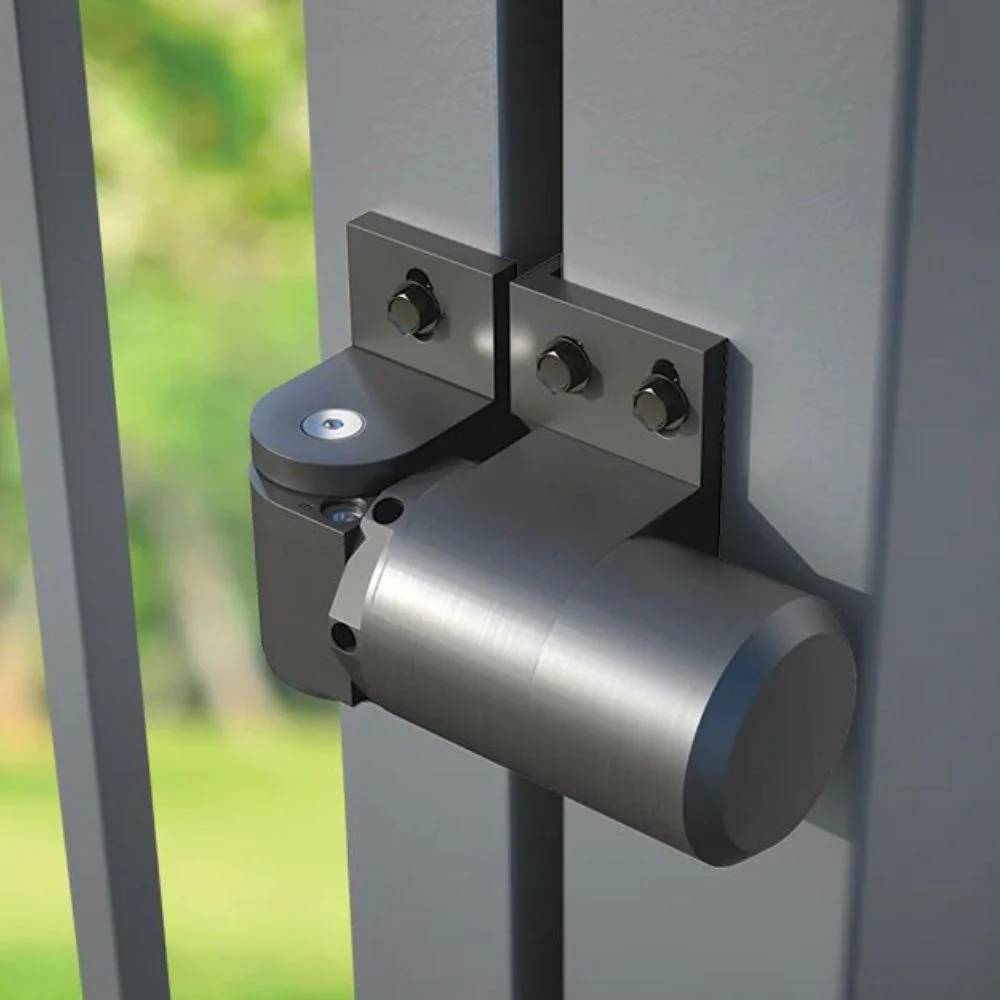

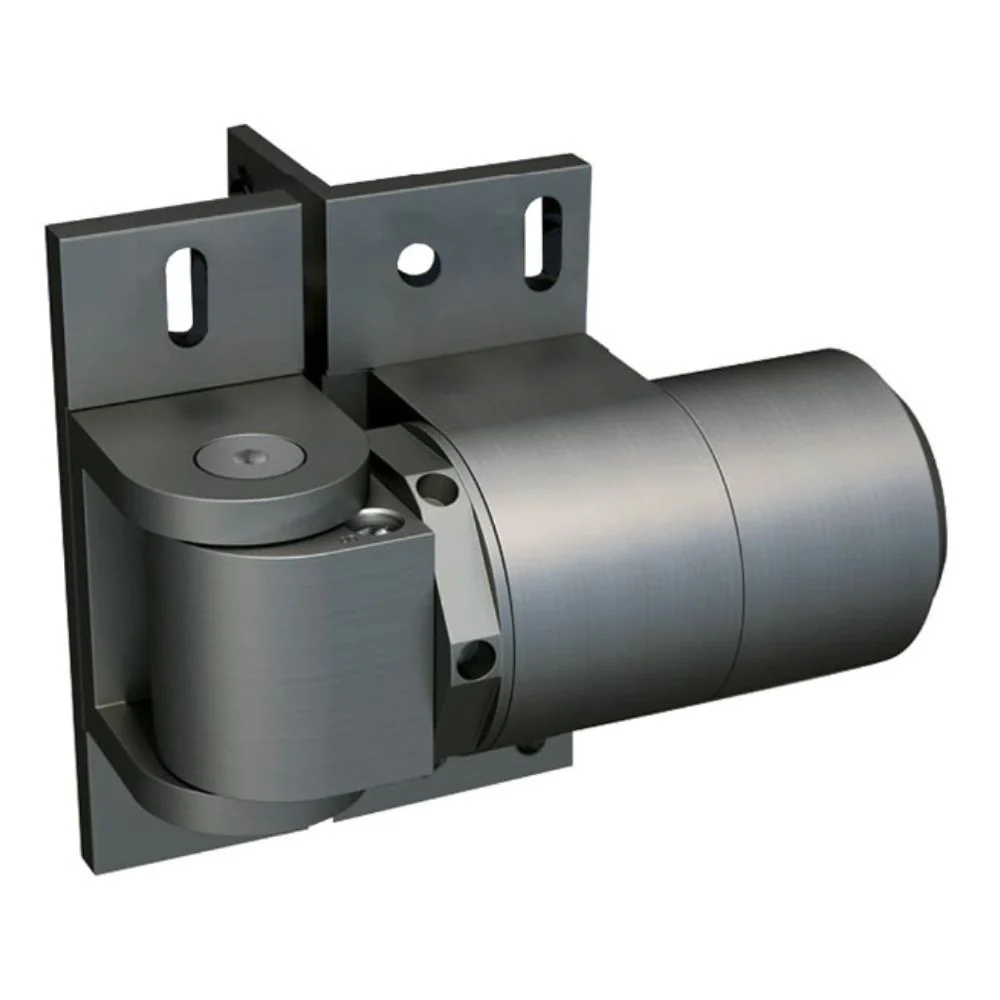

Externally Mounted, Hydraulic Self-Closing Hinge-Closer with Hold Open.
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.
Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminum.
Features
- Controlled quiet close
- Flush Mount
- Final Snap Close Action
- The face of the gate and posts are aligned.
- Include fasteners, gate and post mounting brackets.
Manufacturer's Warranty
- 5-Year Limited Warranty
Specifications
- Brand: SureClose
- Gate Application
- Front Gate
- Side Gate
- Pedestrian Gate
- Pet Gate
- Playground Gate
- Public/Commercial Gate
- Security Gate
- Privacy Gate
- Material and Mounting: Aluminum / Screw
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: (2") 50mm+
- Ideal Gate Gap: (½-1½") 12-35mm
- Hinge Gap: 1/2" - 1-3/8"
- Max Opening Angle: 180⁰
- Self Closing: From 83°
- Requires Gate Stop: No
- Fixing Method: Screw-On
- Color/Finish: Black Anodised
