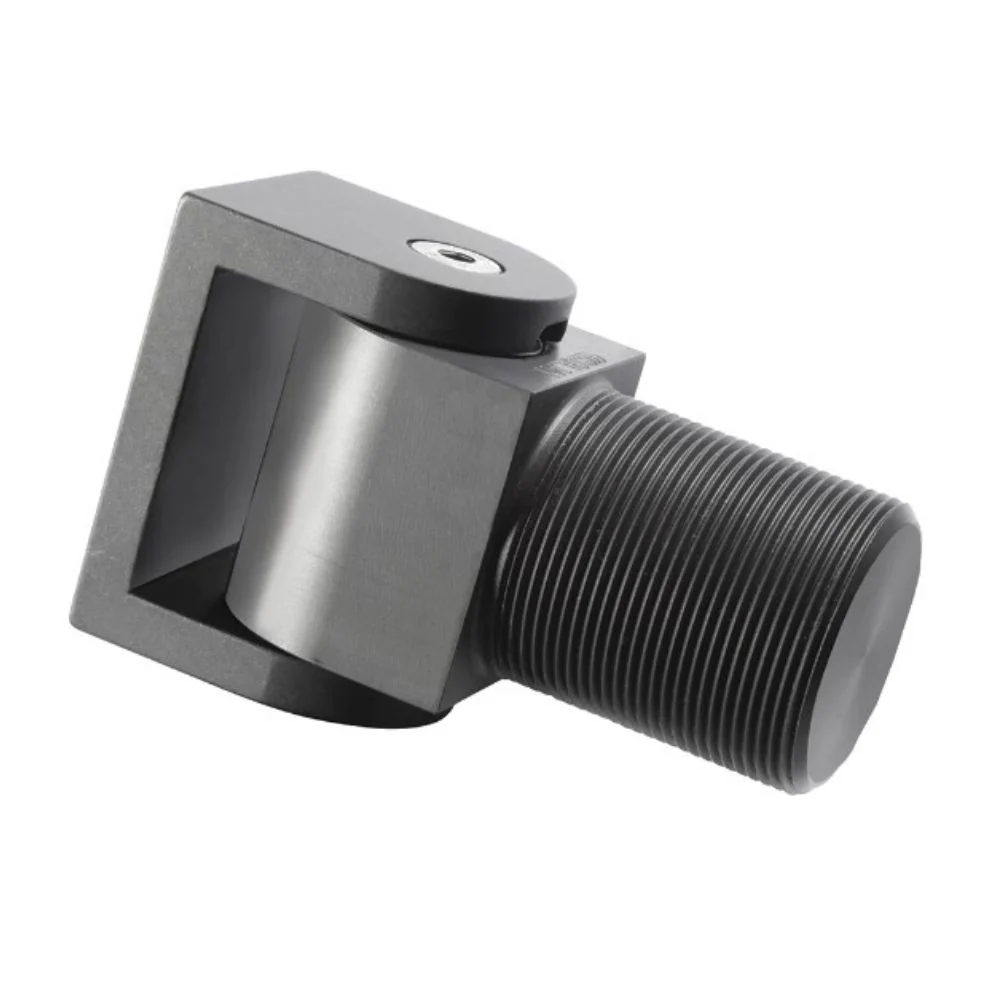

D&D Technologies SureClose 57 W Center Mount Hinge/Closer Steel Weld-On | DND-75057114M
D&D Technologies SureClose 57 W Center Mount Hinge/Closer Steel Weld-On | DND-75057114M
Hinge Closer
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.
All SureClose® hinges and closers come packaged with the gate mounting bracket included. Post-mounting brackets are sold separately. Aluminum gate mounting brackets: Pre-drill using a 5mm drill bit and use #14 countersunk through bolts or fasteners. See post brackets for their fastener requirements.
Features
- Internally Mounted, Hydraulic, Gate Hinge-Closers
- Maintenance free
- Multiple adjustment options
- Prevents gate slam noise & gate damage
- 50 Micron hard anodizing (Aluminum Components)
- High corrosion resistance
- 5-Year Limited Warranty
Specifications
- Brand: SureClose®
- Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
- Gate Type: TBC
- Gate Material: Aluminium, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 80kg (180lbs)
- Self-Closing From: 85°
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post: Shape Square-to-Square
- Horizontal Adjustment: Yes
- Min Post Size: 50mm+ (2")
- Ideal Gate Gap: 64-76mm (2½ - 3")
- Max Opening Swing: 90⁰
- Fixing Method: TBC
- Color/Finish: Black Anodised
