D&D Technologies SureClose 57SF S Center Mount Safety Hinge/Closer Aluminum Screw-On | DND-75057123M
D&D Technologies SureClose 57SF S Center Mount Safety Hinge/Closer Aluminum Screw-On | DND-75057123M
D&D Technologies SureClose 57SF S Center Mount Safety Hinge/Closer Aluminum Screw-On | DND-75057123M

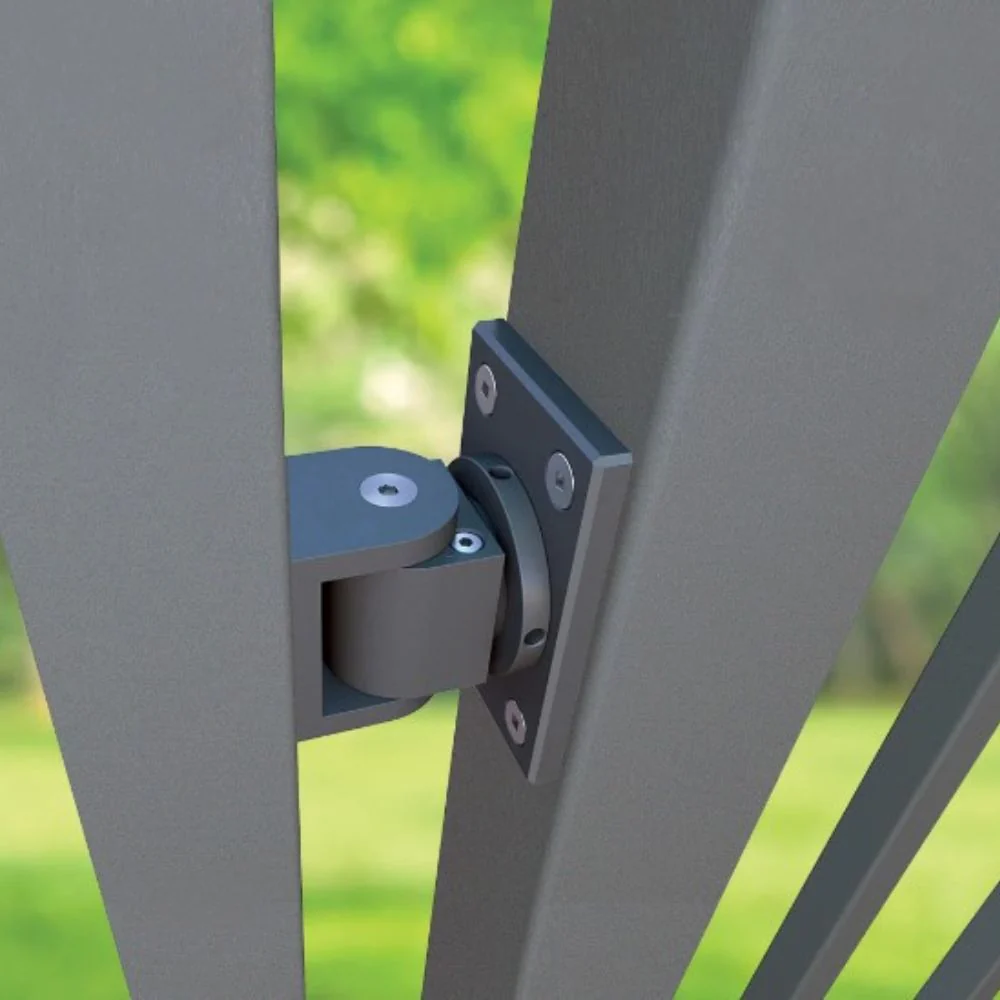

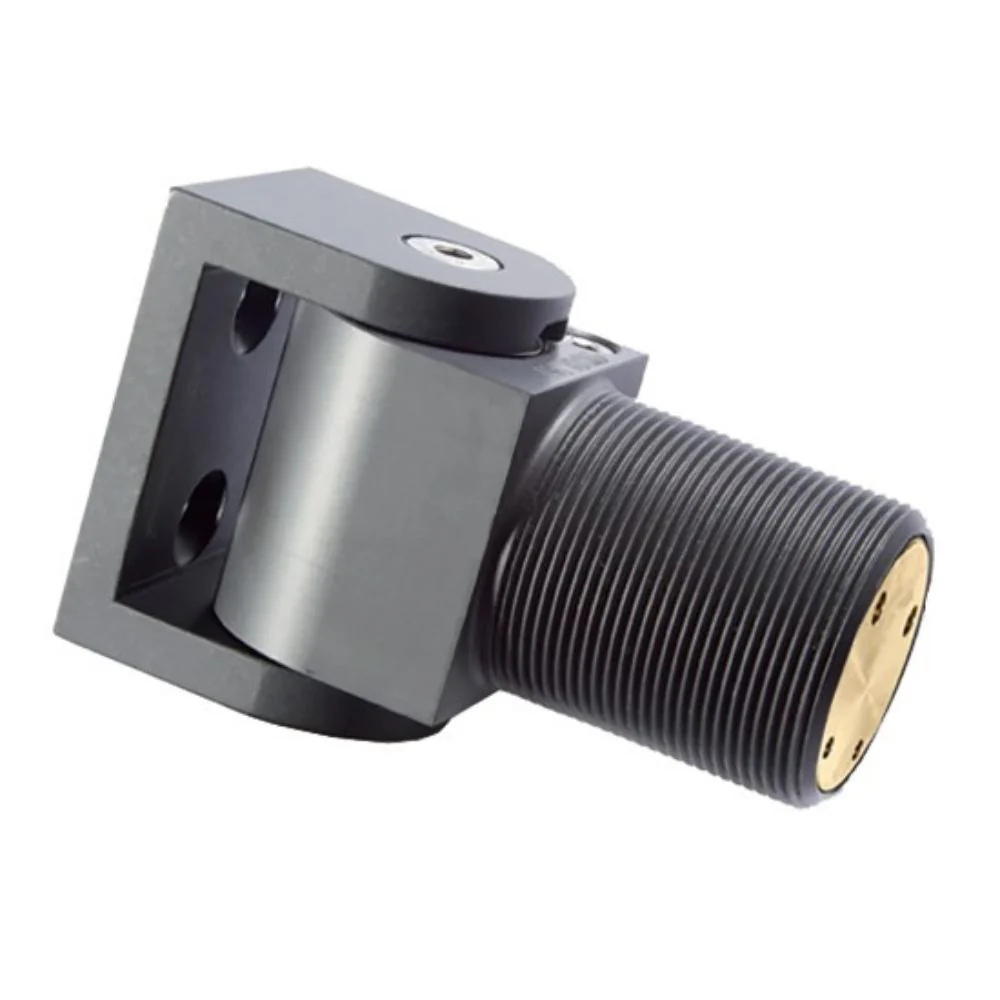

Safety Hinge Closer
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.
SureClose 108SF and 57SF models are suitable for pool and safety gates. SF models open to and self-close from 90 degrees;* NO hold-open feature. All SureClose hinges and closers come packaged with the gate mounting bracket included. Post-mounting brackets are sold separately. Aluminum gate mounting brackets: Pre-drill using a 5mm drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.
Note
- When installing this hinge to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.
- A gate stop must be installed when using SF models. The gate must not be allowed to open past 90˚. Doing so voids the warranty.
- Hinges must be at least 36" (900mm) apart so they cannot be used as footholds by toddlers.
Features
- Internally Mounted, Hydraulic, Gate Hinge-Closers
- Maintenance free
- Multiple adjustment options
- Prevents gate slam noise & gate damage
- 50 Micron hard anodizing (Aluminum Components)
- High corrosion resistance
- 5-Year Limited Warranty
Specifications
- Brand: SureClose®
- Product Code: 75108113M-75108114M-75108123M -75108124M
- Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
- Gate Type: Self-Closing
- Gate Material: Aluminium, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 80kg (180lbs)
- Self-Closing From: 90⁰
- Max Open Swing: 90⁰
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post Shape Square-to-Square
- Min Post Size: 50mm+ (2")
- Ideal Gate Gap: 64-76mm (2½ - 3")
- Fixing Method: Screw-On
- Color/Finish: Black Anodised
