D&D Technologies SureClose 57 AT90 S Flush Mount Hinge/Closer Aluminum Screw-On | DND-75057213M
D&D Technologies SureClose 57 AT90 S Flush Mount Hinge/Closer Aluminum Screw-On | DND-75057213M
D&D Technologies SureClose 57 AT90 S Flush Mount Hinge/Closer Aluminum Screw-On | DND-75057213M

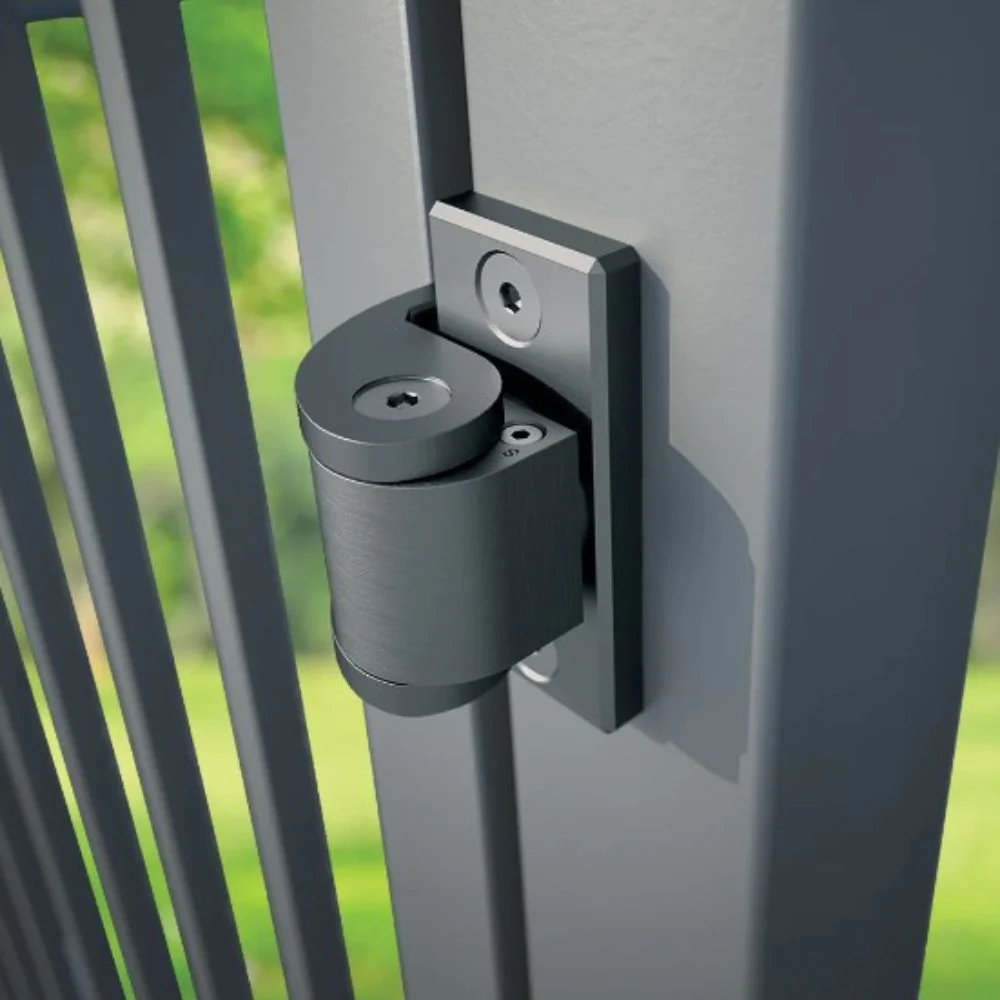

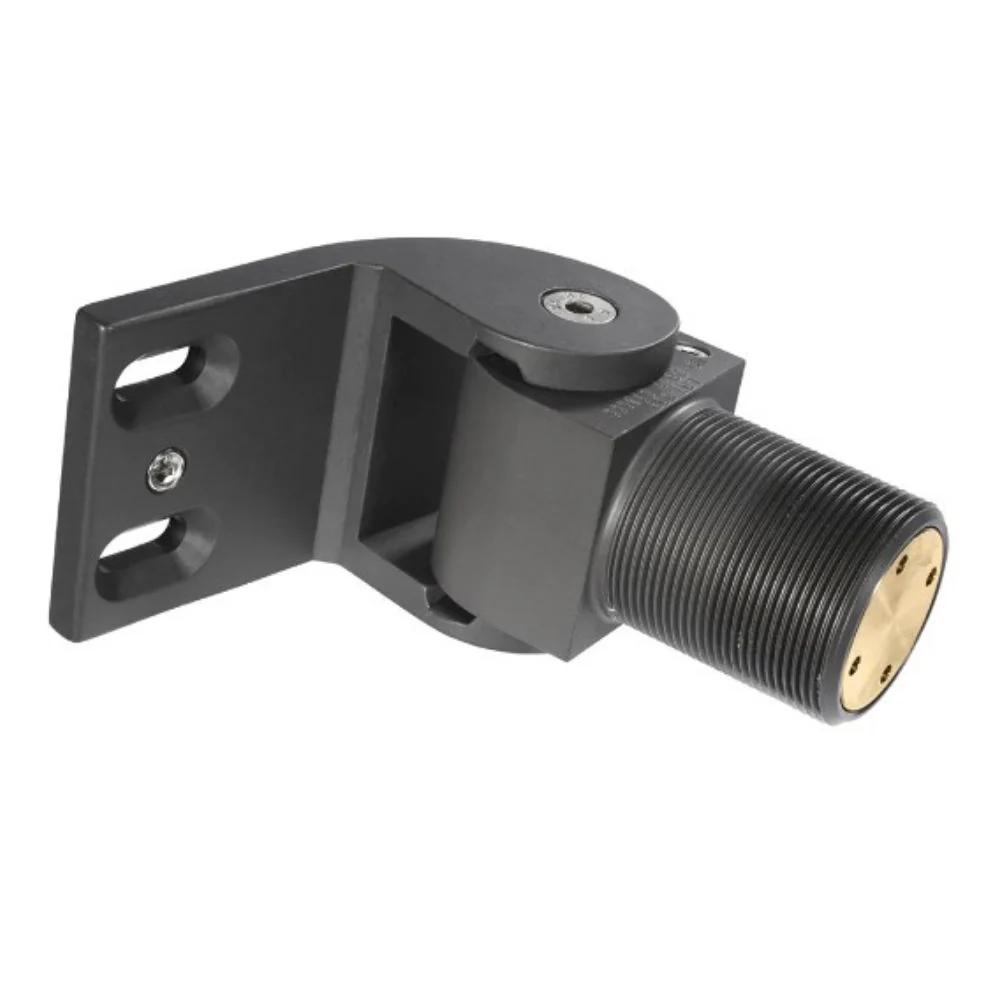

Hydraulic Hinge Closer
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. SureClose 108 and 57 models are concealed hydraulic gate closers.
Designed to never leak hydraulic fluid, the SureClose 108 or 57 are extremely safe and do not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. All SureClose hinges and closers come packaged with the gate mounting bracket included. Post-mounting brackets are sold separately. Aluminum gate mounting brackets: Pre-drill using a 5mm drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.
Note: When installing this hinge to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.
Features
- Internally Mounted, Hydraulic, Gate Hinge-Closer
- Maintenance-free
- Multiple adjustment options
- Prevents gate slam noise & gate damage
- High corrosion resistance
- 50 Micron anodised (Aluminium Components)
- 5-Year Limited Warranty
Specifications
- Brand: SureClose®
- Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
- Gate Type: Self-Closing
- Gate Material: Aluminium, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 80kg (180lbs)
- Self-Closing From: 83°
- Max Open Swing: 178⁰
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 55mm+ (2¼")
- Ideal Gate Gap: 13mm (½")
- Fixing Method: Screw-On
- Color/Finish: Black Anodised
