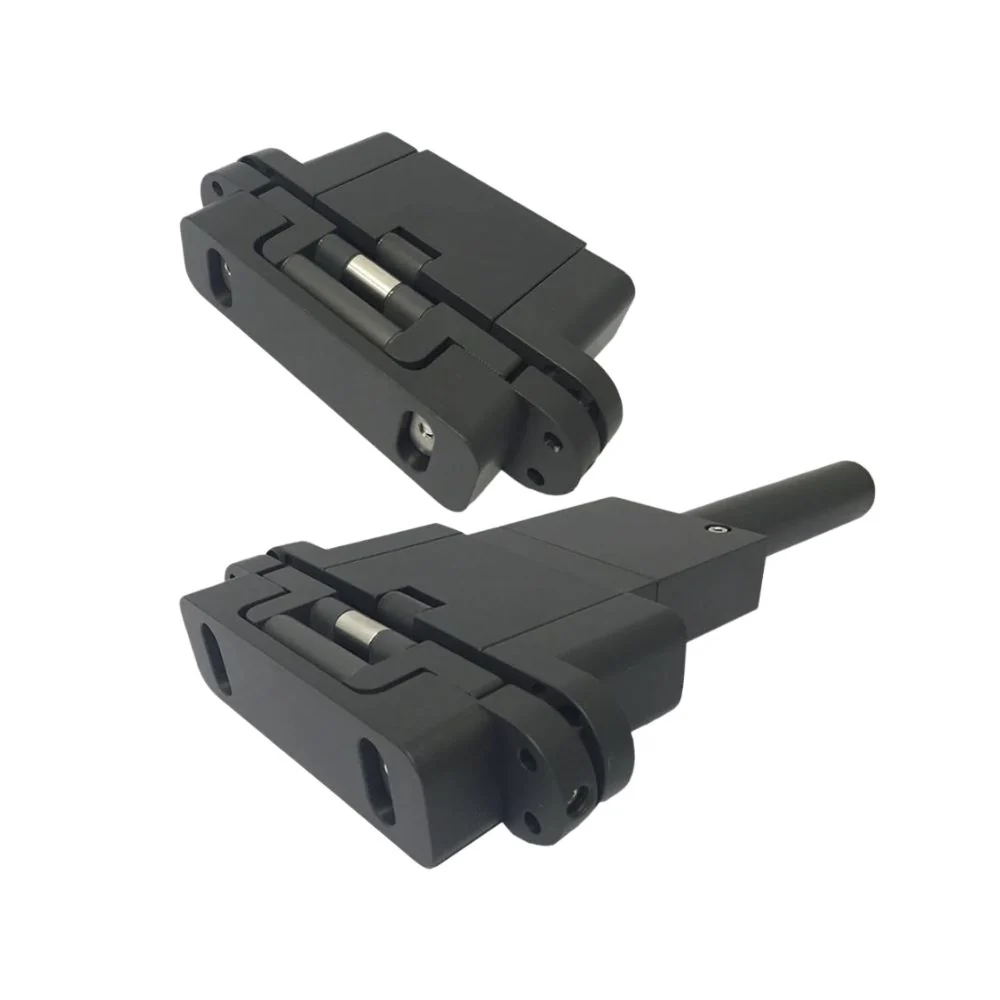

D&D Technologies SureClose CONCEALFIT Kit for Gates and Doors (Hinge-Closer + Hinge Only) | DND-77108523

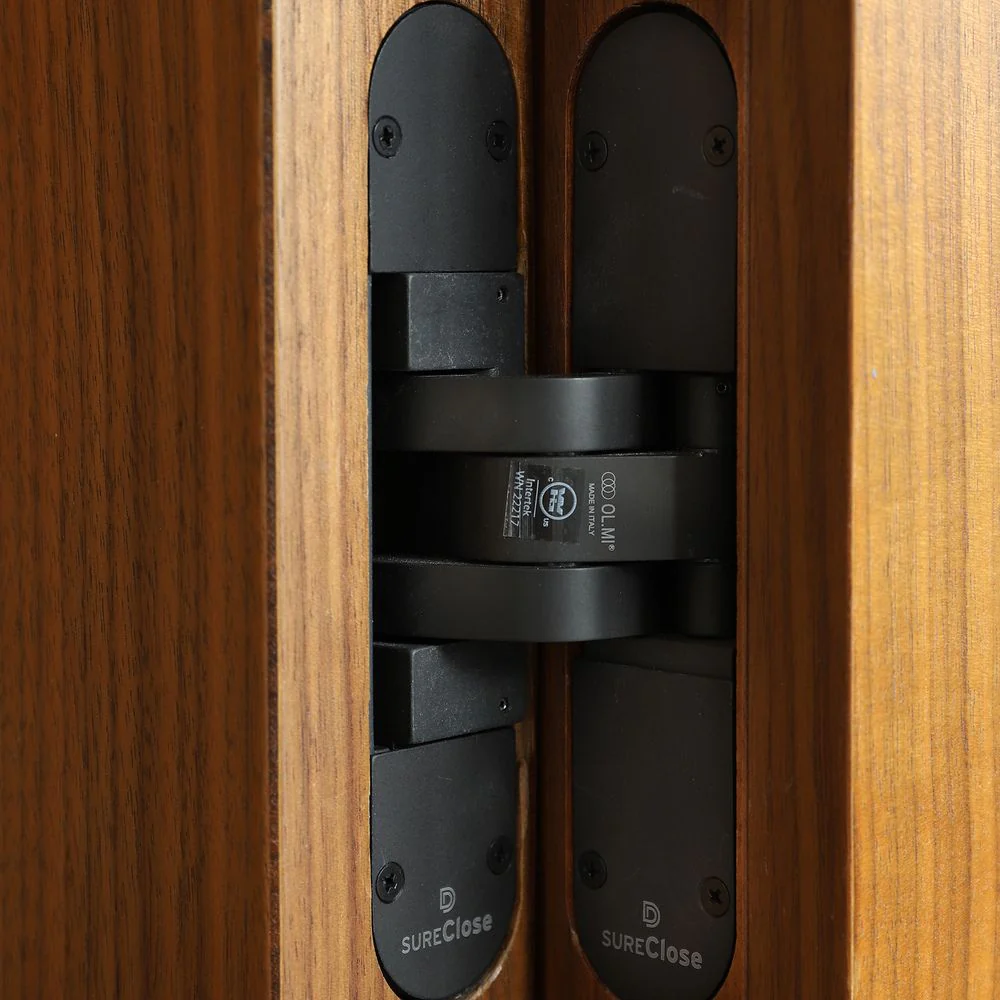

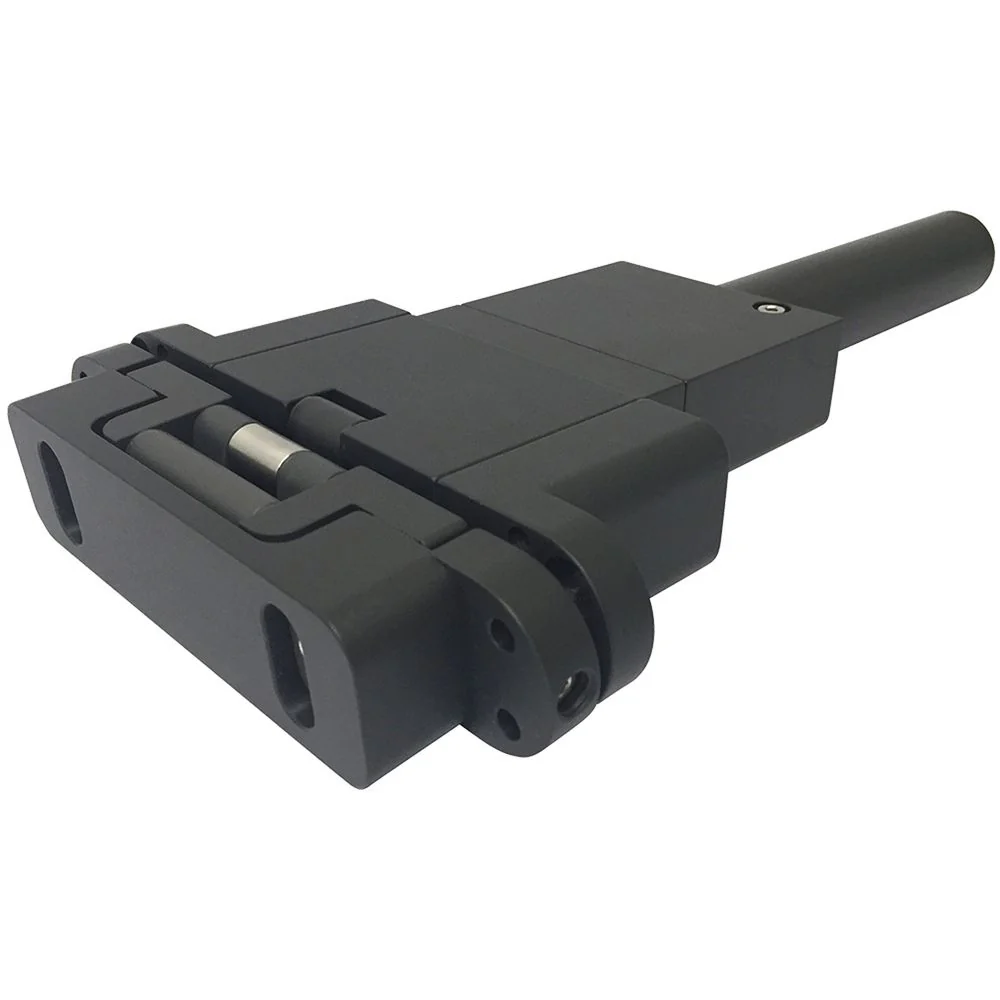

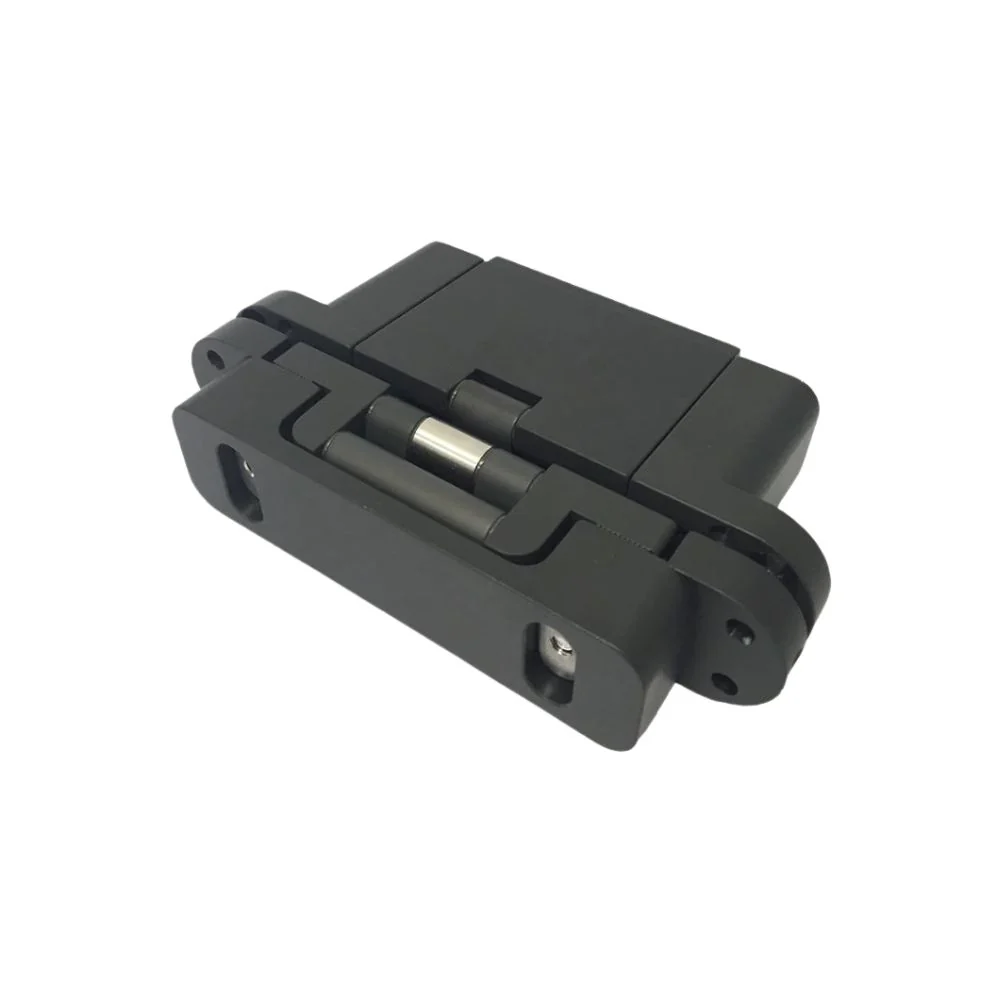

SureClose® CONCEALFIT Gate Closer & Hinge Sets are designed to replace conventional, bulky commercial gate hinges and closers. These high-quality, hydraulic hinge-closer units provide a concealed finish, a highly adjustable self-closing function, and burglary and vandalism resistance. When closed, the SureClose® CONCEALFIT system cannot be seen or tampered with. Superb engineering and patented design allow total concealment of the hinge-closer unit in a remarkably small housing.

SureClose® CONCEALFIT features ‘Final Snap-Close Action’, which increases the speed at the end of closing to ensure latching and to overcome electric or coded locks. Soft, quiet closure protects the gate’s latching/locking system. 'Closing Speed', 'Final Snap-Close', and ‘Backcheck' are adjustable using a simple Allen key. The hinge-closer is easily adjustable in three dimensions (horizontal, vertical, and in/out) for fine positioning and speedy gate alignment. Gate gaps can be as low as 5⁄64”, which means no exposed parts to serve as a climbing foothold, thereby increasing security. This hinge-closer set also features a UL10C fire rating, is tested to ADA standards, and is independently tested to over 500,000 open/close cycles. Designed to never leak hydraulic fluid, the SureClose® CONCEALFIT technology is extremely safe and will not present resistance if closed quickly in an emergency.

Note: A Gate Stop is required to prevent a gate opening beyond 125º (see fitting instructions). Forcing a gate beyond a 125º opening may damage the closer and void the Warranty.

Features

• Powerful, hidden hydraulic closure
• Concealed hydraulics (don’t need to add fluid)
• Easily accessed, adjustable self-closing and self-latching speed valves
• Concealed mechanisms for a stylish, clean, distinctive look and burglary resistance
• Easily installed internally – within the door or frame
• Decorative dress covers included
• Tested to over 500,000 open-close cycles
• Suitable for ADA applications, certified DDA use
• 20-minute UL10C & cUL10C fire rating (Intertek W/N 22217)
• Aluminum and steel gates require a welded box

Manufacturer's Warranty

• 5-year Limited Warranty

Specifications

• Brand: SureClose
• Product Code: 77108523

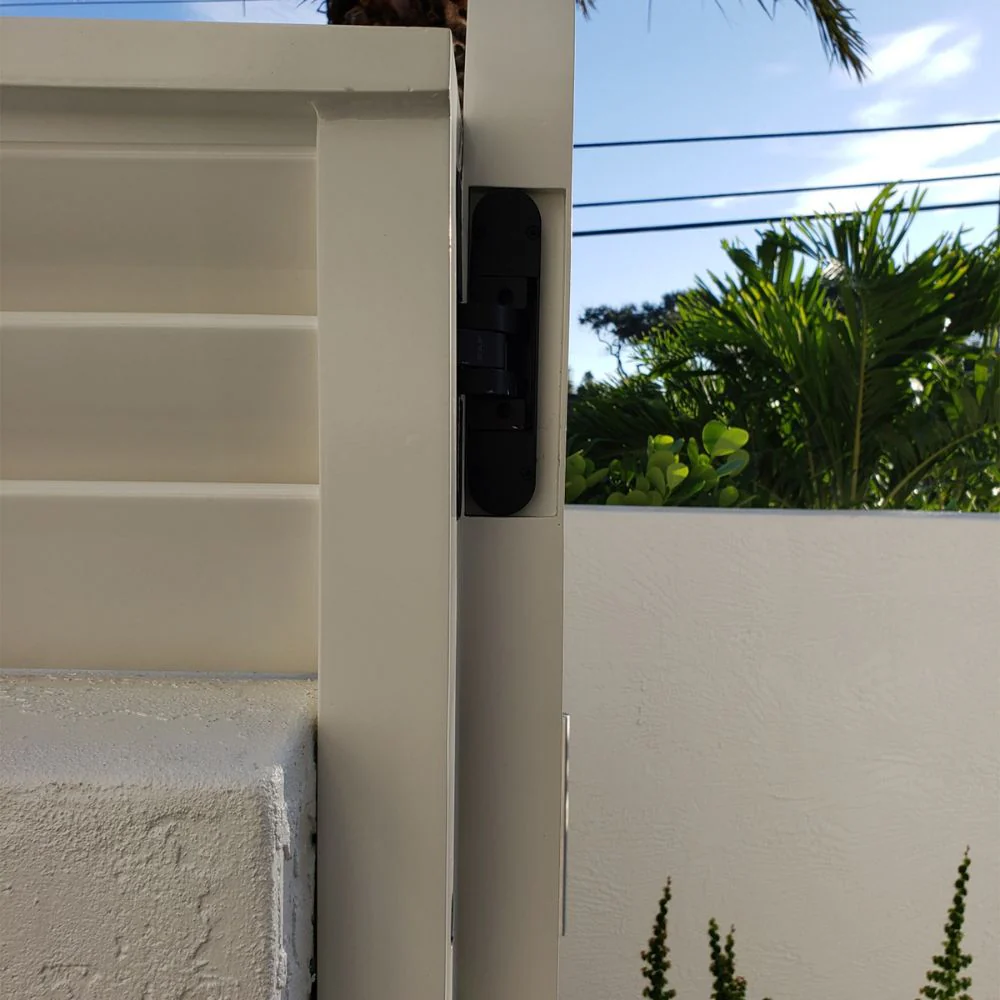

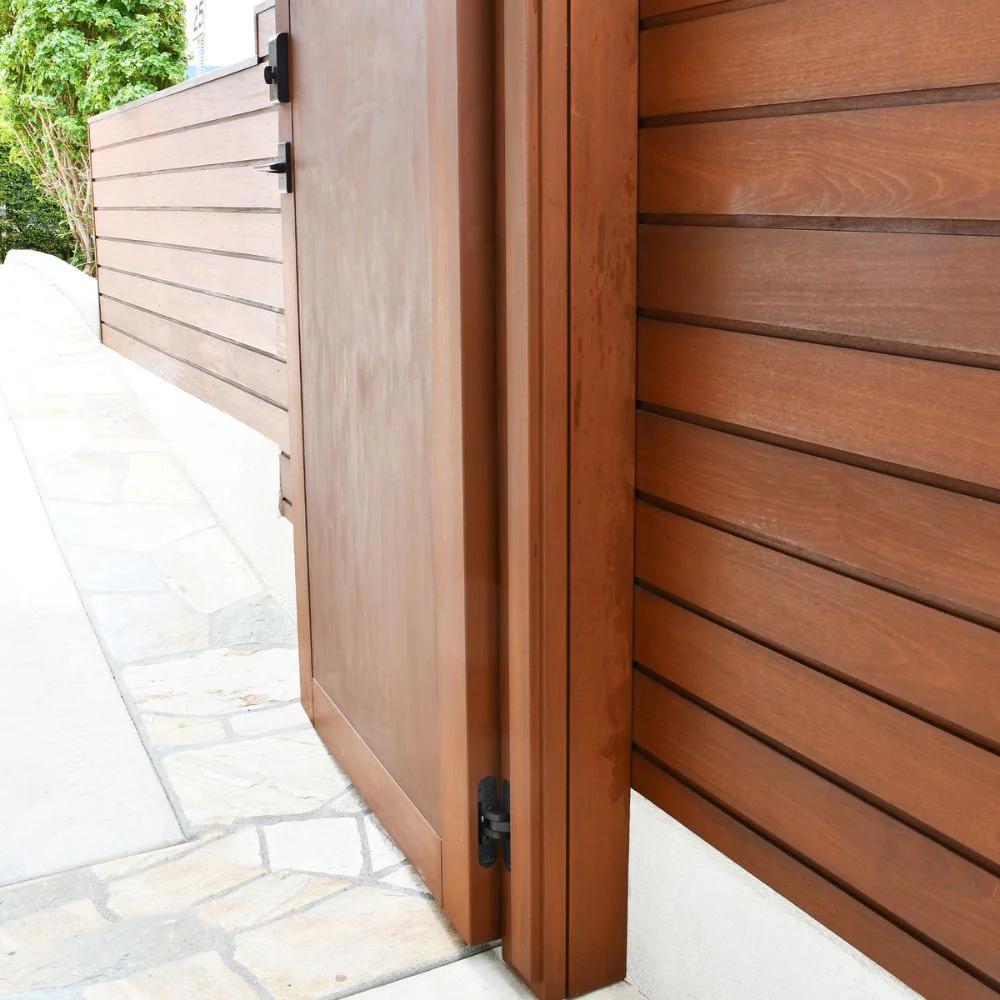

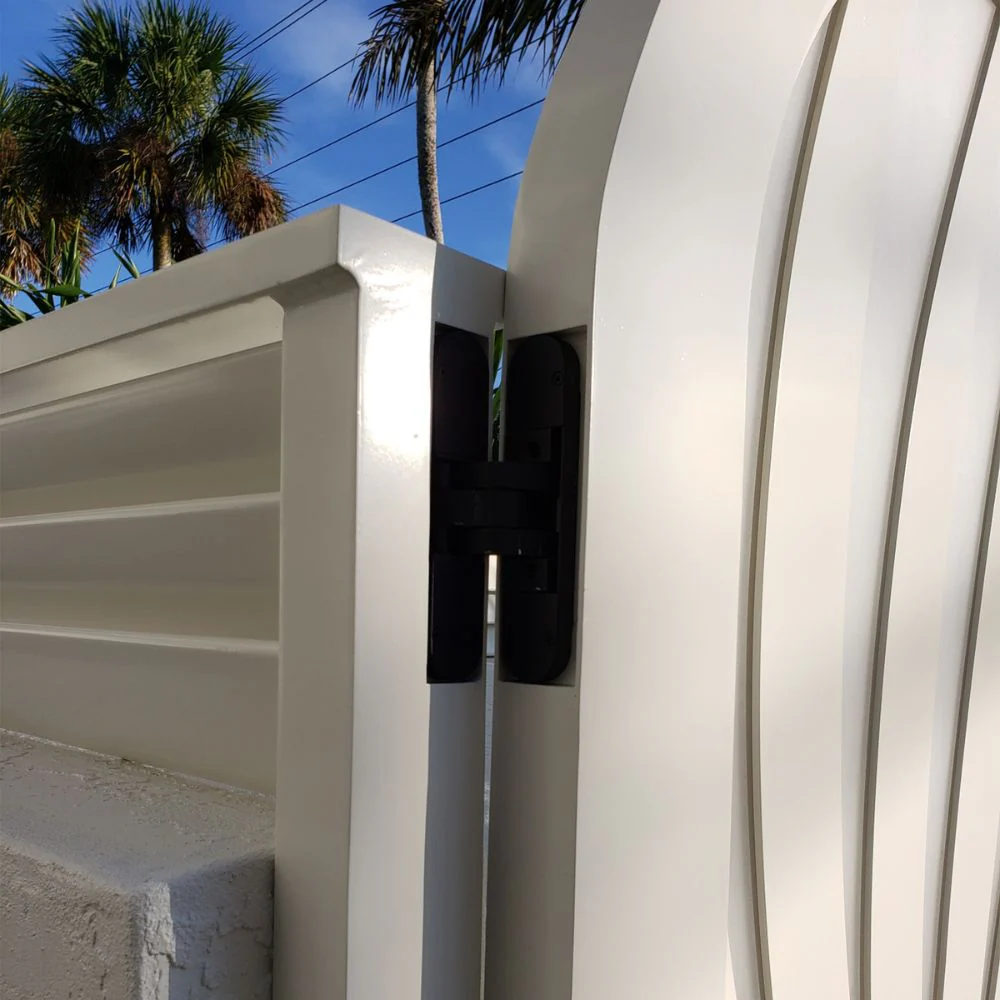

• Gate Application
• Pool Gate
• Child Safety Gate
• Front Gate
• Side Gate
• Pedestrian Gate
• Driveway Gate - Single
• Public/Commercial Gate
• Security Gate
• Privacy Gate
• Safety Gate
• Door Application
• Interior Door
• Front Door
• Fire Rated Door
• Force Entry Resistant Door
• Hotel Door
• Theatre Door
• Residential Garage Door
• Soundproof Door
• Gate Type: Self-Closing
• Door Type: Self-Closing, Residential and Commercial Flush Doors
• Gate Material: Aluminium, Steel, Wood (Hardwood)
• Door Material: Wood Door, Hollow Core Door (Metal, Fibreglass FBG)
• Self-Closing Gate Weight: Up to 100kg (220lb)
• Self-Closing Door Weight: Up to 100kg (220lb)
• Approx Gate Size: 1.2m x 1.8m (4ft W x 6ft H)
• Approx Door Size: 1220mm (Max 48”) Width
• Min Post Size: (2") 50mm +
• Min Door Thickness: (1 ¾") 40mm
• Ideal Gate Gap: Adjustable from (5⁄64”) 2mm –  (¼”) 6mm
• Adjustability (Door): Vertical (5/64") +/- 2mm, Horizontal (3/64") +/- 1.25mm, Door Clearance from (5/64") 2mm to (1/4") 6mm
• Fixing Method: Screw-On
• Color/Finish: Black Anodised

Product Literature

• D&D Technologies SureClose CONCEALFIT Kit for Gates Installation Instructions
• D&D Technologies SureClose CONCEALFIT Kit for Doors Installation Instructions
• D&D Technologies SureClose CONCEALFIT Kit for Gates Datasheet
• D&D Technologies SureClose CONCEALFIT Kit for Doors Datasheet
• D&D Technologies SureClose CONCEALFIT Kit Dimensional Drawings
