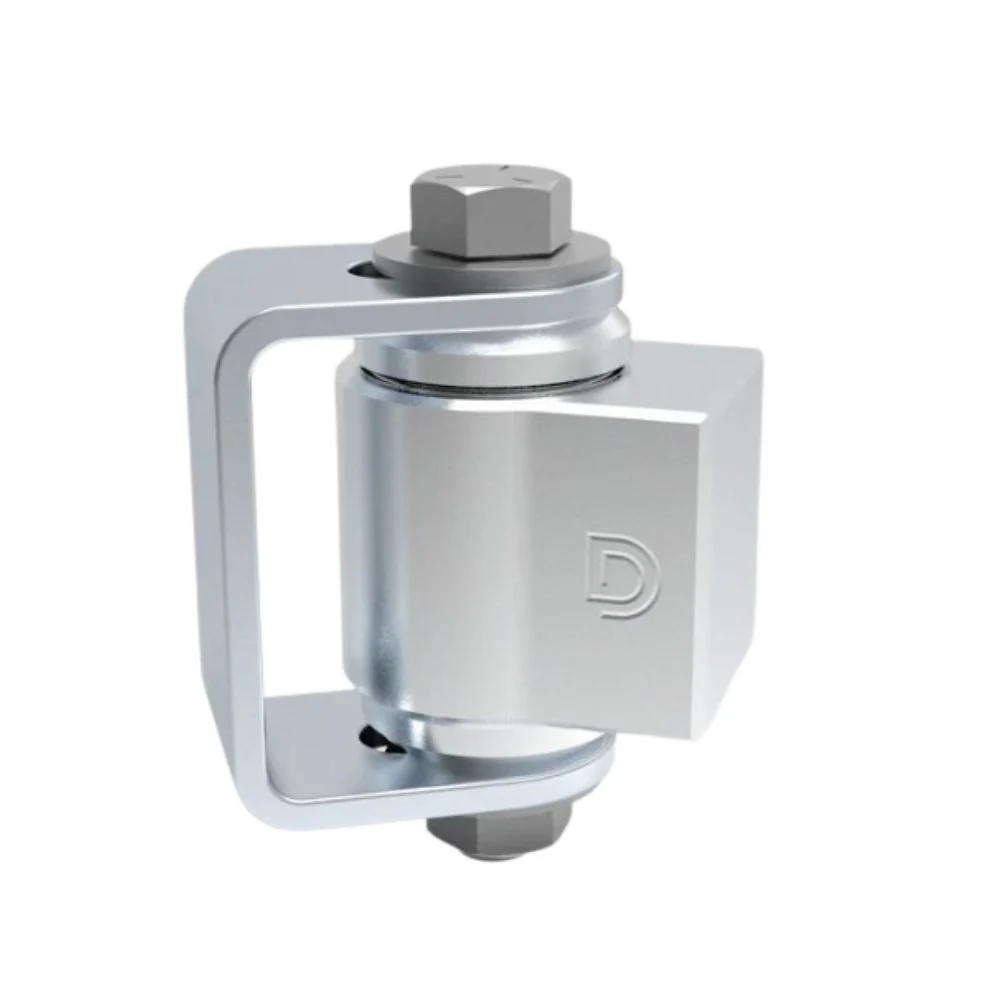

SteeD&D Technologies Shut It Combo BadAss with Aluminum Body Gate Hinge | DND-CI3300

The Combo BadAss Gate Hinge was designed using the same technology as all our BIG hinges, but with the understanding that not all installations are exclusively steel or aluminium. The Combo BadAss is perfect for that high-end installation where an aluminum gate is welded to a steel end post application.

Features

• Two sealed maintenance-free bearings
• Adjustable bracket for precise installations
• Perfect for that high-end installation
• Ideal for flat post installation

Specifications

• Brand: Shut It® BadAss
• Product Code: CI3200
• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non-Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Approx Gate Size: 2m H x 3m W - (7ft x 10ft)
• Gate Frame/Post Shape: Square-to-Square, Square-to-Round
• Min Post Size: 38mm+ (1½")
• Ideal Gate Gap: 61-74mm (2½ - 3")
• Fixing Method: Weld-On
• Color/Finish: Raw, Zinc
• Load rating per gate: 450kg (1,000 lbs)
• Maximum gate weight: 270kg (600 lbs)
• No. of Bearings: 2
• Yoke Material: Steel
• Body Material: Aluminum
• Height: 3.8
