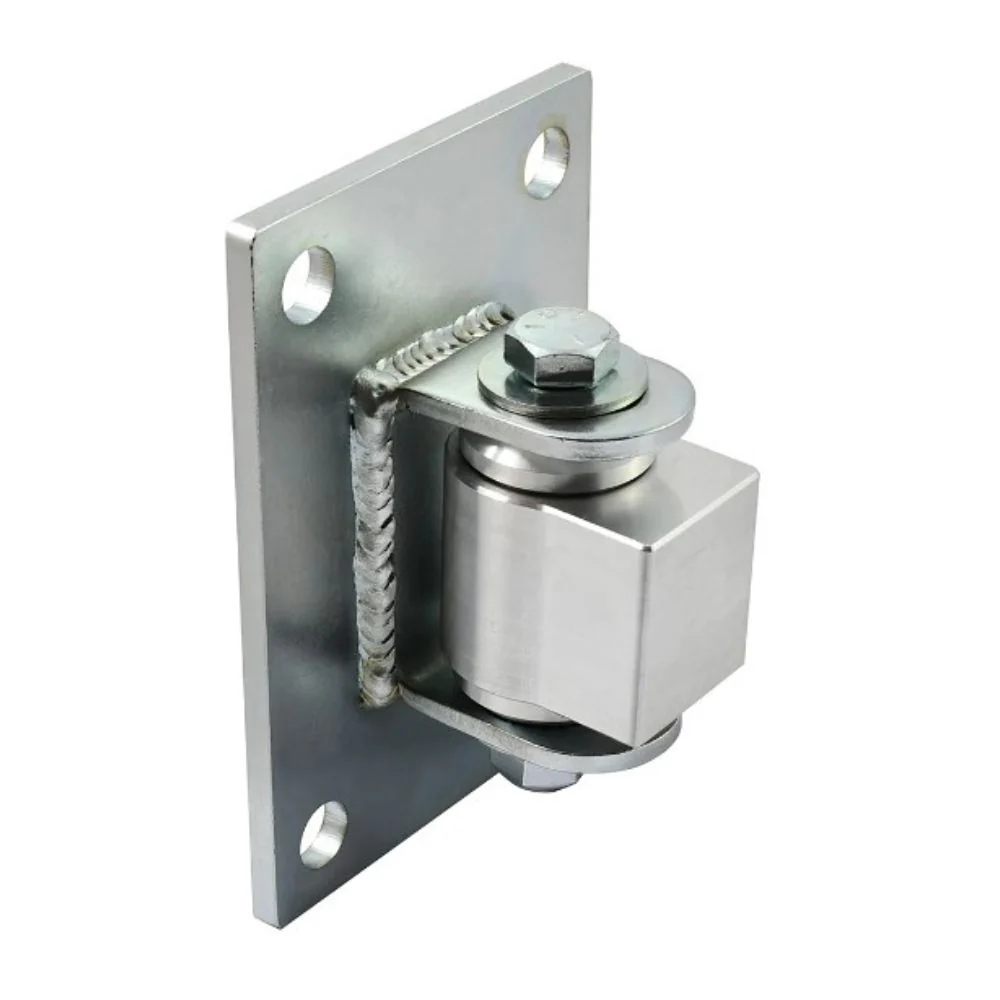

D&D Technologies Shut It 4" Combo Steel/Aluminum Body Half Bolt-on BadAss | DND-CI3740

With a wide mounting plate and four anchor points, the 4” and 6” Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industry’s first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Features

• Made to bolt or weld to 100 -125mm (4” or 5”) fence posts
• Wider brackets enable anchor points to be positioned at the sides, rather than center of fence post - reducing flexing, and preventing fatigue in fence post
• High-temperature sealed bearings - safe to powder coat with hinges installed on gate
• No greasing, no maintenance. EVER!
• Precision bushing - distributes gate load for optimal performance and longer life
• CNC machined to perfection and near frictionless movement

Specifications

• Brand: Shut It® BadAss
• Product Code: CI3740
• Gate Type: Non Self-Closing
• Gate Material: Aluminum
• Approx Gate Size: 1.5m x 2m (6ft W x 8ft H)
• Gate Frame/Post Shape: Square-to-Square, Square-to-Round
• Min Post Size: 38mm+ (1½")
• Ideal Gate Gap: 73-86 mm (3 ¼" - 3 ¾")
• Fixing Method: Bolt-On, Weld-On
• Colour/Finish Zinc
• Max Gate Load: 450kg (1,000 lb)
• Max Gate Weight: 270kg (600 lb)
• No. of Bearings: 2
• Yoke Material: Steel
• Body Material: Aluminum
• Height: 6.0

Product Literature

• D&D Technologies Shut It Half Bolt-on BadAss Product Sheet
