D&D Technologies Shut It Baby Bolt-On BadAss Gate Hinge | DND-CI3750

Designed for gates where welding is not an option

Like the Baby BadAss, this hinge Bolt-on Gate Hinge by SHUT IT is CNC machined to the tightest tolerances in the industry. Unlike The Baby BadAss, The Bolt-On Bady BadAss was designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option. The Bolt-On BadAsses produce near frictionless movement with maintenance-free usage.

Features

• One sealed maintenance-free bearing
• Adjustable barrel for precise installations
• Flat, bolt-on brackets for through bolting
• Zinc plated

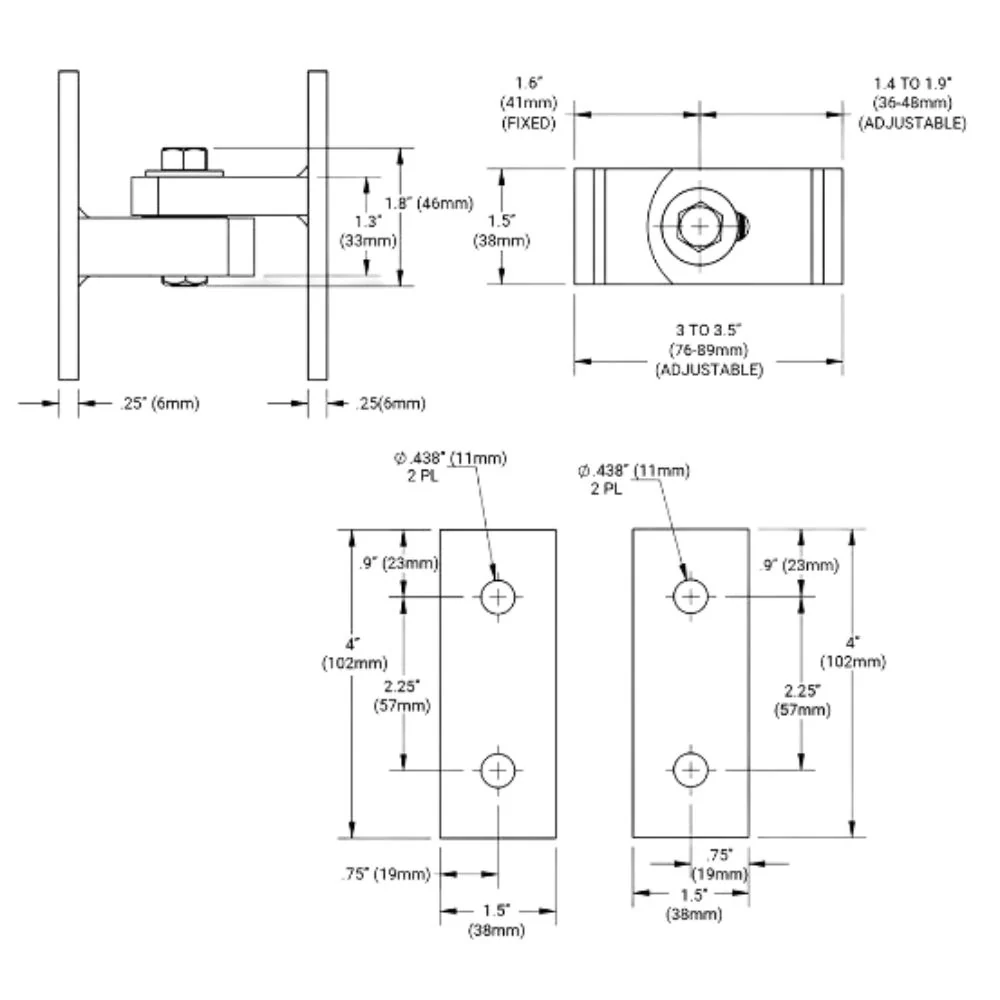

Specifications

• Brand: Shut It® BadAss
• Product Code: CI3750
• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non-Self-Closing
• Gate Material: Steel/Ornamental Iron
• Approx Gate Size: 2m H x 3m W - (7ft x 10ft)
• Gate Frame/Post Shape: Square-to-Square
• Min Post Size: 38mm+ (1½")
• Ideal Gate Gap: 76-89mm (3- 3½")
• Fixing Method: Bolt-On
• Color/Finish: Zinc
• Load rating per gate: 270kg (600 lbs)
• Maximum gate weight: 100kg (250 lbs)
• No. of Bearings: 1
• Yoke Material: Steel
• Body Material: Steel
• Height: 4.0
