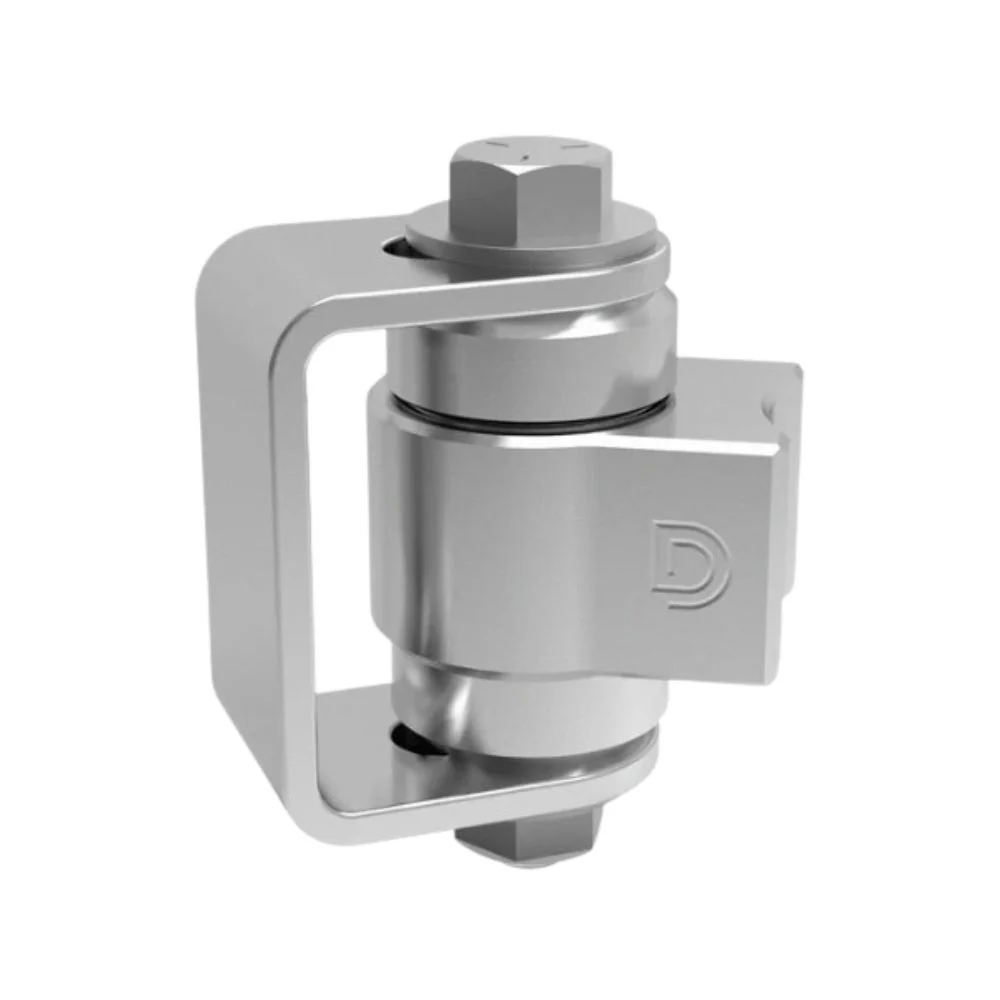

D&D Technologies Shut It Stainless Steel BadAss Gate Hinge | DND-CI3800

Like The ORIGINAL BadAss, The Stainless Steel BadAss Gate Hinge is CNC machined to the tightest tolerances in the industry. However, for this hinge we went all out and used stainless steel for ALL the components. Yes, we said ALL components (even the bearings).

Features

• 304 stainless steel including the bearings, shaft (bolt), washers and lock nut
• Two sealed maintenance-free bearings (no greasing)
• Adjustable yoke for perfect installations
• Ideal for both square and round post installations

Specifications

• Brand: Shut It® BadAss
• Product Code: CI3800
• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non-Self-Closing
• Gate Material: Steel/Ornamental Iron
• Approx Gate Size: 2m H x 3m W - (7ft x 10ft)
• Gate Frame/Post Shape: Square-to-Square, Square-to-Round
• Min Post Size: 38mm+ (1½")
• Ideal Gate Gap: 61-74mm (2½ - 3")
• Fixing Method: Weld-On
• Color/Finish: Stainless Steel
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 500kg (1,100 lbs)
• No. of Bearings: 2
• Yoke Material: Stainless
• Body Material: Stainless
• Height: 3.8

Product Literature

• D&D Technologies Shut BadAss Heavy Duty Gate Hinge Product Sheet
