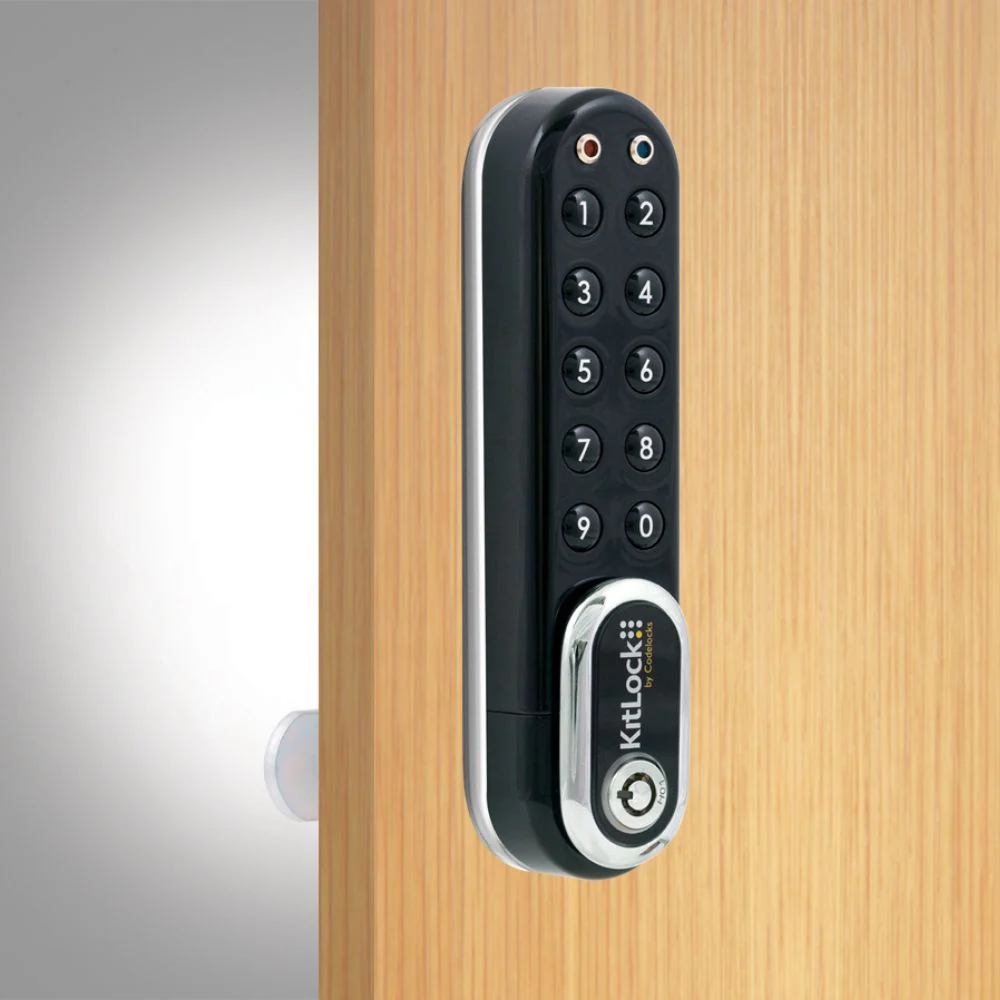

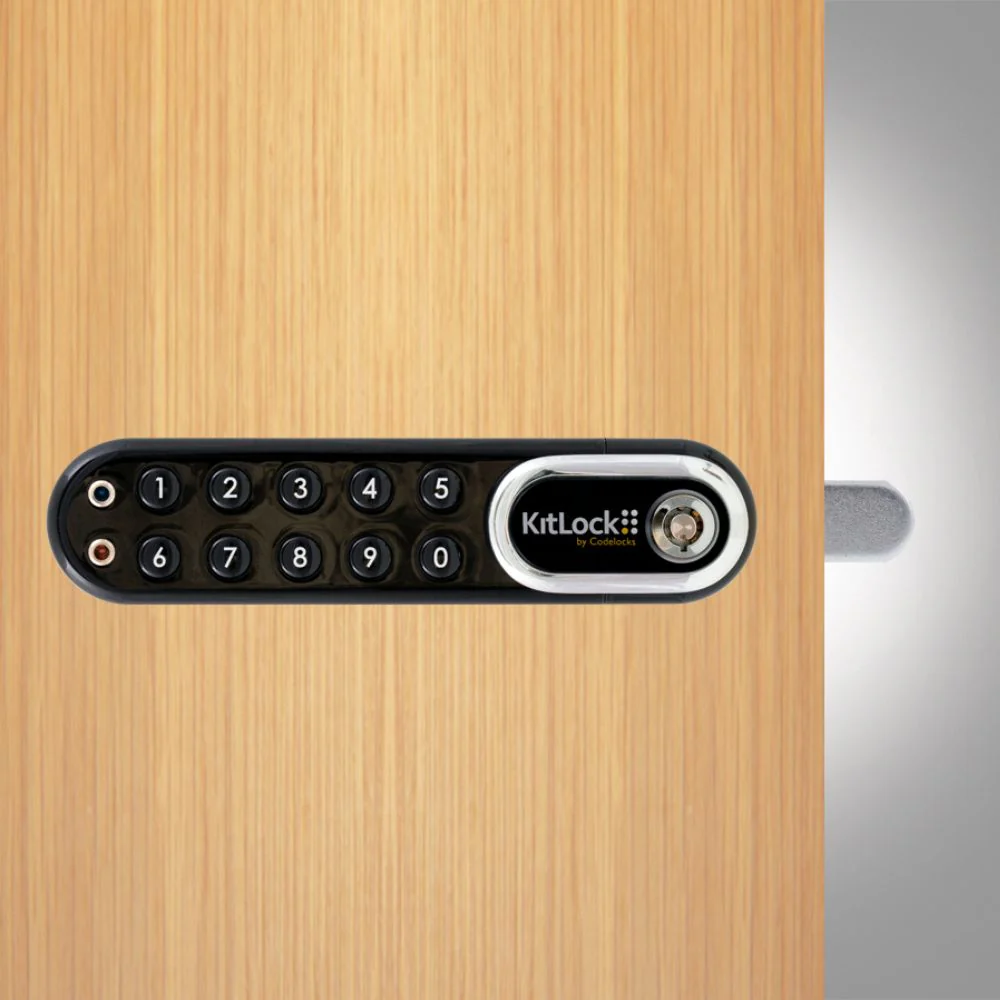

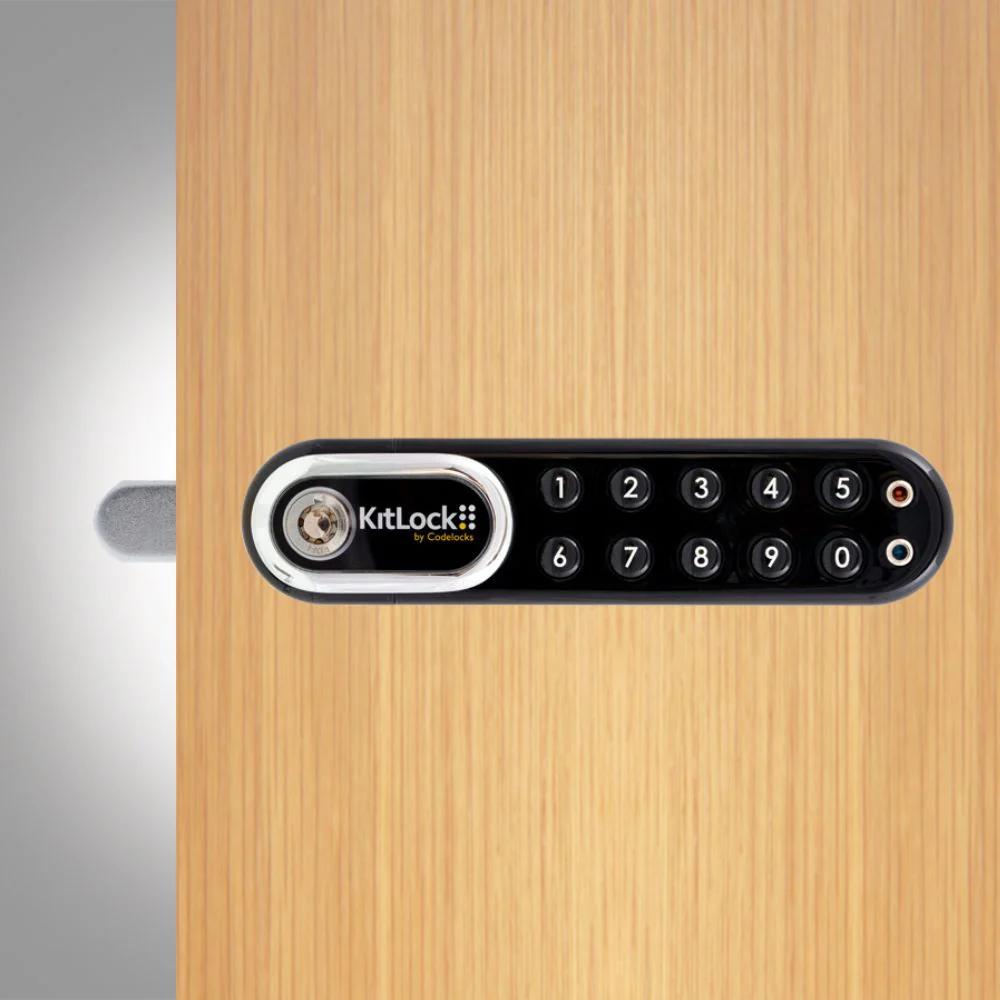

D&D Technologies CodeLocks KL1000 G3 KitLock Locker Lock - Black Chrome

Introducing the KL1000 G3; designed through the evolution of our best-selling KitLock, the KL1000, and boasting all popular features of the KL1000 Classic+ including 20 User Codes and 24hr countdown timer.

KitLock by Codelocks is a convenient alternative to traditional locks and keys suitable for a wide range of cabinet and locker applications. The KL1000 G3’s key override and front battery change capabilities provide ease of use and peace of mind. The updated chrome effect back panel and handle finishes reflect their surroundings giving the lock a slimmer, more subtle aesthetic.

Sharing the same fittings & fixings as the KL1000 KitLock, this lock is easily retrofitted, ideal for upgrading existing installations with increased flexibility and convenience for both guests and staff.

Private Function

This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.

Public Function

This is the default function and is already pre-programmed in new locks. In this function, the KitLock operates with a single User Code. The user enters a personal four-digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short-term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.

Features

• Easy install
• Easy retrofit for existing cam locks
• Battery Override
• Auto-unlock after a set time

• Black Chrome finish

Key Override

Allows key holders to access the locker in the event of a forgotten code or an emergency. The override key is available separately.

Front Battery Change

The KL1000 G3 battery compartment can be accessed via the front of the lock. Entering a valid code and turning the handle reveals a security screw that, once removed, allows the cover to slide up and batteries to be replaced.

24hr Auto-Unlock Countdown Timer

When operating in Public Function, the KL1000 G3 can be programmed to auto-unlock between 1 and 24 hours after locking¹, saving valuable locker management time.

Up to 20 User Codes

The KL1000 G3 offers up to 20 unique 4-digit User Codes when operating in Private Function, thus allowing a single cabinet to be accessed by multiple users.

Specifications

• Battery Override: A 9-volt PP3 battery can be placed against external contacts
• Brand: KitLock by Codelocks
• Buttons: 2 x 5 + Programming
• Code Change Method: Keypad (On Door)
• Codes: 8-digit Master and Sub-Master Code, 6-digit Technician Code, 20 4-digit User Codes
• Countdown Timer: Open after X hours
• Door Thickness: Ready to fit doors up to 1" (25mm)
• Finish: Black Chrome
• Function: Private, Public
• IP Rating: IP54 when fitted with gasket (IP55 available for special order)
• Latch Type: Cam, Slam Latch
• Lock Dimensions: 5 ³⁄₈" (136mm) x ¹¹⁄₁₆" (28mm) x ¹⁵⁄₁₆" (33mm)
• Lock Material: Mixed Plastic and Alloy
• Low Battery Warning: Red LED will flash on opening to indicate low battery
• Operations: Up to 100,000 operations per 2 x AAA batteries
• Orientation: Vertical, Left Handed, Right Handed
• Power: 2x AAA
• Spindle: Fitted with ¹⁵⁄₁₆" (24mm) spindle as standard
• Suitable For: Internal, External
• User Levels: Master, Sub Master, Technician, User
• User Types: Code

Product Video

Product Literature

• D&D Technologies CodeLocks KL1000 G3 Brochure
• D&D Technologies CodeLocks KL1000 G3 Datasheet
• D&D Technologies CodeLocks KL1000 G3 Getting Started Guide
• D&D Technologies CodeLocks KL1000 G3 Programming and Operating Instructions
