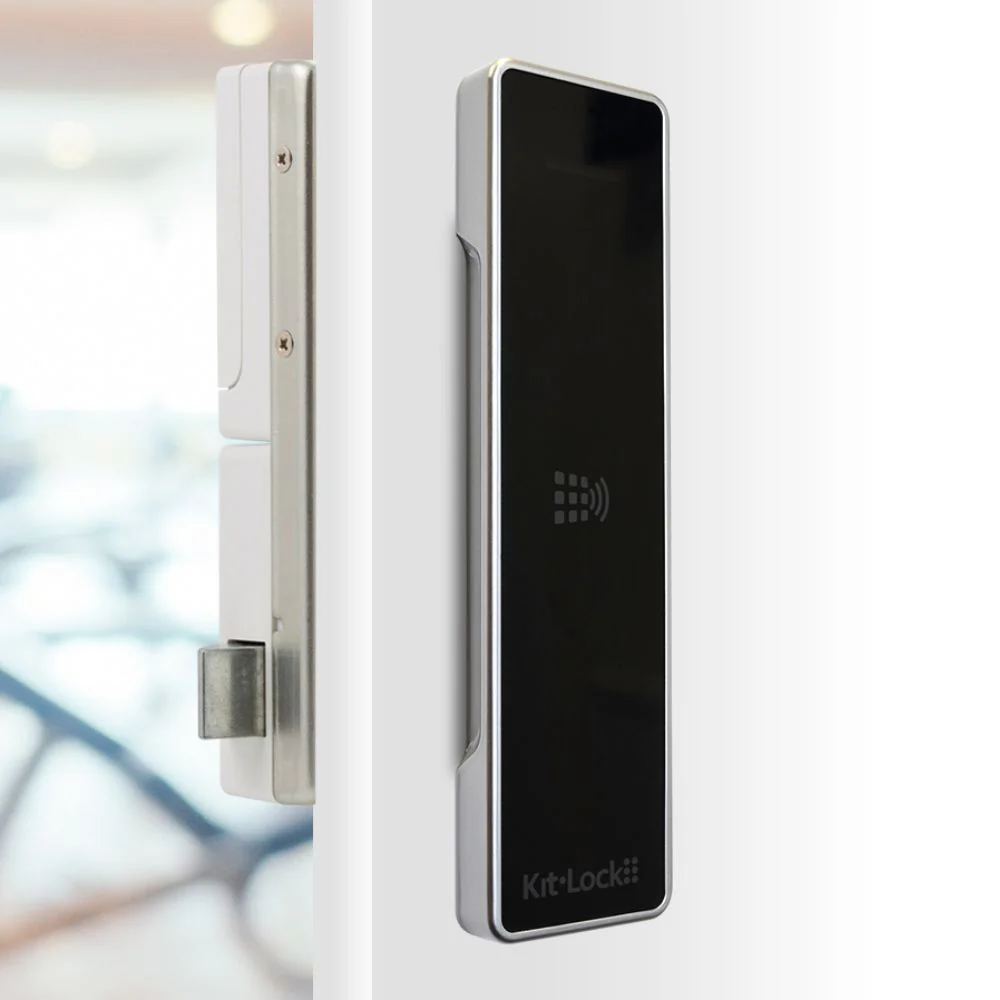

D&D Technologies CodeLocks KL1100 RFID KitLock Locker Lock

Slimline and stylish, the KL1100 RFID offers contactless smart card access and Remote Card Authorization options.

Choose between offline or cloud-based software options to configure your locks and cards. The KL1100 RFID is perfect for applications with a large number of lockers that would benefit from issuing and managing Card Clients from reception desks, for example, gyms, leisure centers, hospitals, hotels, schools, and universities.

The KL1100 RFID is easy to install, operate and manage, featuring a powered latch enabling intuitive ‘push shut’ closing. Available in a Metallic Silver or Gloss Black finish.

Features

• Master Card
• Technician Card
• Standalone Mode
• RCA (Remote Card Authorisation) Mode via offline or cloud-based software
• Local management via plug-in Keypad Programmer (sold separately)
• Date and time-based features
• Powered latch
• Battery override
• Override code
• MIFARE® Classic 1k compatible cards, fobs, or wristbands can be used

Standalone Mode

Standalone Mode requires a Keypad Programmer (sold separately) for adding / removing cards and managing functions of the lock.

RCA Mode

Remote Card Authorisation (RCA) Mode offers remote management allowing Card Clients to be authorised via a PC using offline or cloud-based software and a USB Card Reader (sold separately).

Specifications

• Battery Override: Connect to 5V micro USB power source for temporary power
• Brand: KitLock by Codelocks
• Clients – Smart Cards: Master, Technician, User, Initialisation, Block and Audit - Supports MIFARE® Classic 1k
• Door Thickness: Ready to fit doors up to 1" (25mm)

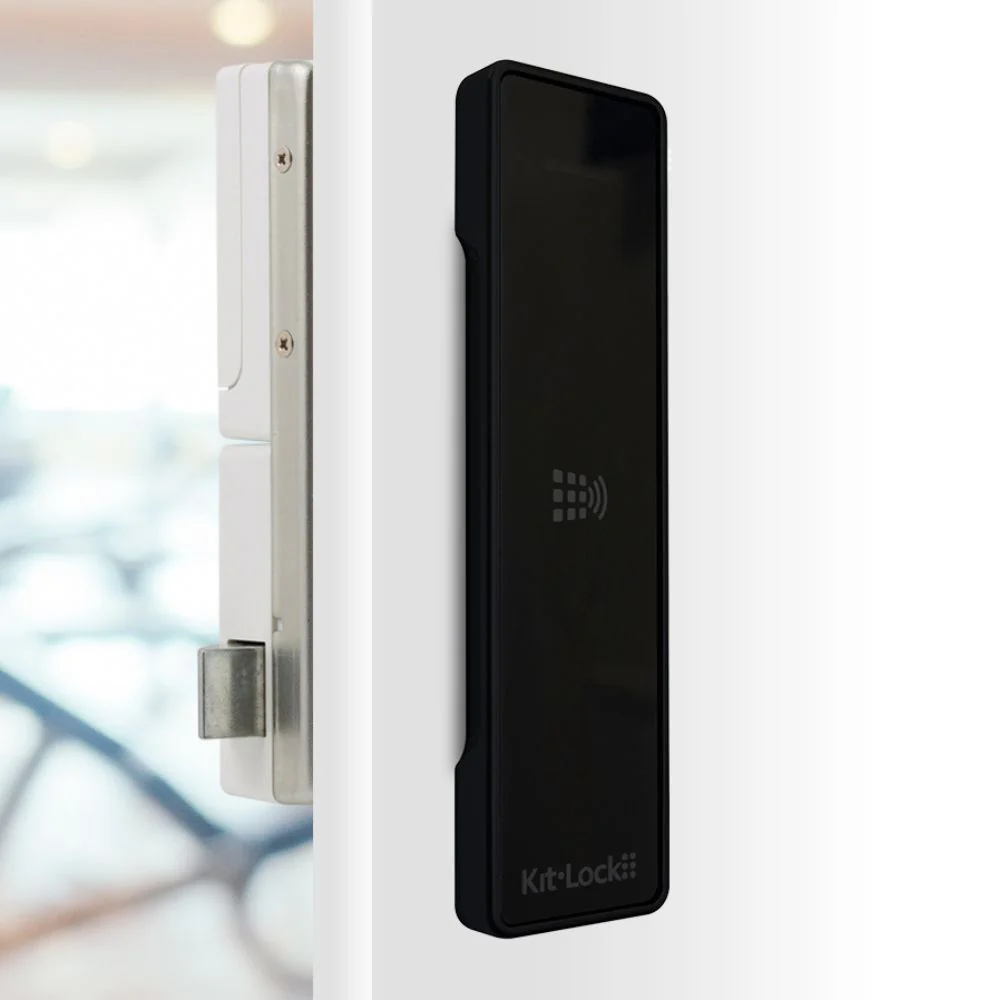

• Finish: Gloss Black, Metallic Silver
• Function: Private, Public
• IP Rating: IP55 when fitted with gasket
• Latch Type: Powered Latch
• Lock Dimensions: 5 ³⁄₄" (H) x 1 ¹⁄₂" (W) x ¹⁄₂" (D)
• Lock Material: Mixed Plastic and Alloy
• Low Battery Warning: Red LED will flash 3 times before unlocking
• Memory: Non-volatile memory - programming will be retained
• Operations: Up to 100,000 operations
• Orientation: Vertical, Left Handed, Right Handed
• Power: 4 x 1.5 volt AA batteries (supplied)
• Suitable For: Internal
• User Types: Card
