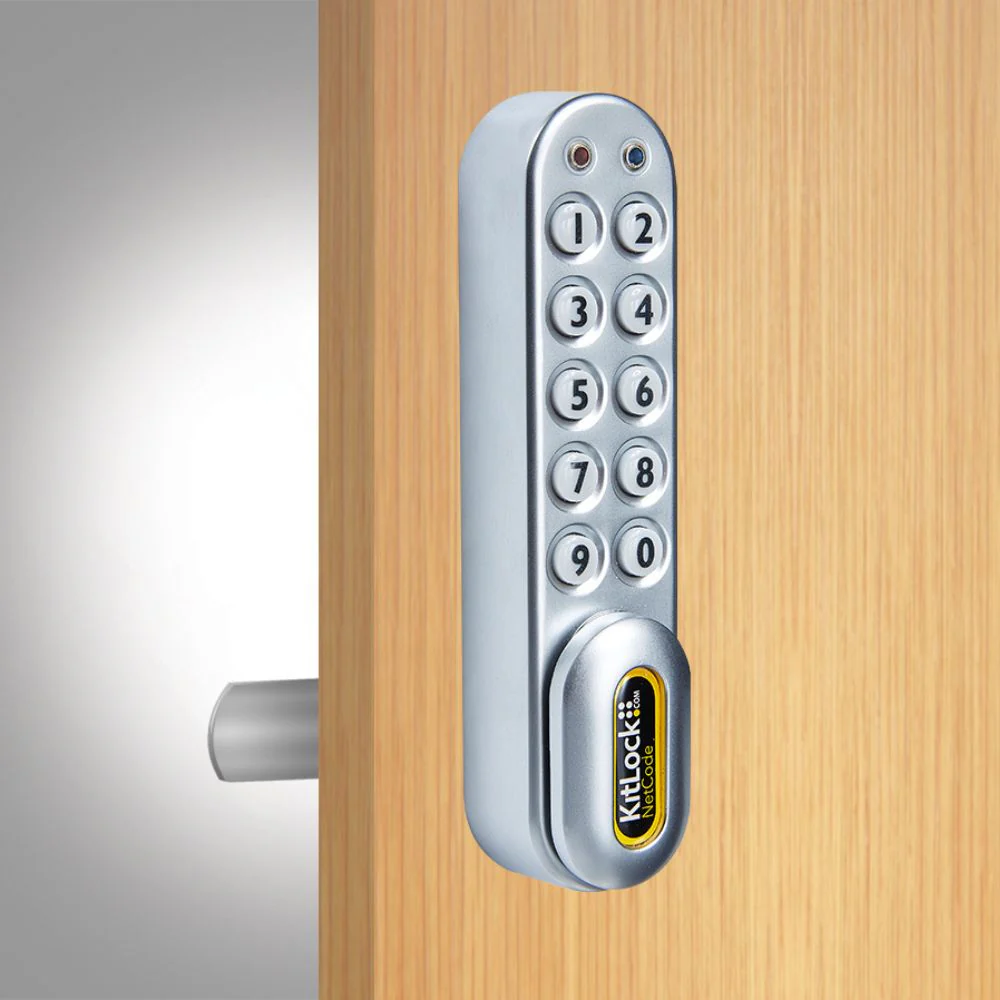

D&D Technologies CodeLocks KL1000 NetCode® KitLock Locker Lock - Silver Gray | DND-DDKL1000NCSG

The KL1000 NetCode® provides a smart way to generate time-sensitive codes for a wide range of lockers and cabinets.

Through the online Codelocks Connect Portal or via the Codelocks simple API (application programming interface), you can create codes that have a specified start date, time and duration. Once the duration expires, the codes no longer work. Using time-sensitive codes is a more secure way to grant access as the code will not work outside a designated timeslot. Issue codes to visiting service engineers, delivery personnel (drop boxes), and medium-term locker rental. Generated codes can be sent by email or SMS.

Features

• No wired or wireless communication required
• Create codes for short, medium, and long-term
• Web-based NetCode® generation
• Send generated codes via email or SMS** (Additional charges apply. Buy NetCode® credits from Codelocks to issue NetCode® access and send via SMS)
• Five types of NetCode®
• Additional NetCode® features
• 15,000 operations from 2 x AAA batteries
• 11 button keypad
• Master Code
• Sub-Master Code
• User Code
• Technician Code
• NetCode®
• Battery override
• Easy to install and set up
• IP55 rated when fitted with gasket
• Not suitable for a Chlorine environment
• All parts / fixings / templates included
• Two-year guarantee

Functions

In addition to NetCode®, the KL1000 NetCode® retains the standard Public and Private Functions.

Private Function

This function is used where the same code will be repeatedly used. Choose a single four-digit User Code to use multiple times. Ideal for use where the lock is allocated to a single person for a long period of time.

Public Function

This function is used for short-term, multiple occupancy applications. Enter a four-digit User Code to lock the locker, the same code is used to unlock. The lock remains open, ready for a new user and a new code.

Types of NetCode®

Five types of NetCode® are available:

• Short-term multi-use codes with durations from 1 to 12 hours and 1 to 7 days
• Short-term single-use codes with durations from 1 to 12 hours and 1 to 7 days
• Medium-term codes with durations from 1 to 21 days + 28 days
• Long-term codes that work for periods of up to 1 year
• Codes that will expire on a particular date

Additional NetCode® Features

New NetCode® Blocks Previous NetCode®

This feature automatically blocks the last used NetCode® when a new NetCode® is entered.

Mode Restrictions

Choose which types of NetCode® to support. This is a useful feature if the number of potentially available NetCode® modes needs to be reduced.

Block a NetCode®

Block a NetCode® directly on the lock using either the Master Code or another valid NetCode®.

Person User Code

Allow a NetCode® user to create a personal 4-digit number that retains the same validity period as their originally allocated NetCode®.

Specifications

• Battery Override: A 9-volt PP3 battery can be placed against external contacts
• BrandKit: Lock by Codelocks
• Buttons: 2 x 5 + Programming
• Code Change Method: Keypad (On Door)
• Door Thickness: Ready to fit doors up to 1" (25mm)
• Finish: Silver Grey
• Function: Private, Public, NetCode^®
• Handed: Non-Handed
• Hinge Type: Standard
• Keypad: 11 individual round buttons
• Latch Type: Cam
• Lock Dimensions: 5 ³⁄₈" (136mm) x ¹¹⁄₁₆" (28mm) x ¹⁵⁄₁₆" (33mm)
• Lock Material: Zinc Alloy
• Low Battery Warning: Red LED will flash 3 times before unlocking
• Memory: Non-volatile memory will be retained
• NetCode®:Standard (Multi-Use), Standard (Single Use), Rental 365, Rental 1 - 21 Days
• Operations: Up to 15,000 operations per 2 x AAA batteries
• Orientation: Vertical
• Power: 2x AAA
• Suitable For: Internal, External
• User Levels: Master, Sub Master, Technician, User
• User Types: Code, NetCode

Product Literature

• D&D Technologies CodeLocks KL1000 NetCode Installation Instructions and Quick Start Guide
• D&D Technologies CodeLocks KL1000 NetCode New Feature Introduction (KL1060C2)
• D&D Technologies CodeLocks Switching NetCode Modes
• D&D Technologies CodeLocks Programming and Operating Instructions (KL1060C2)
• D&D Technologies CodeLocks KL1000 NetCode Fact Sheet
• D&D Technologies CodeLocks KL1000 NetCode Keypad Rotation
• D&D Technologies CodeLocks KL1000 NetCode Brochure
