Doorking Key Switch Stand Alone Ace Cylinder Key Switch Surface Mount | DKS-1210-080

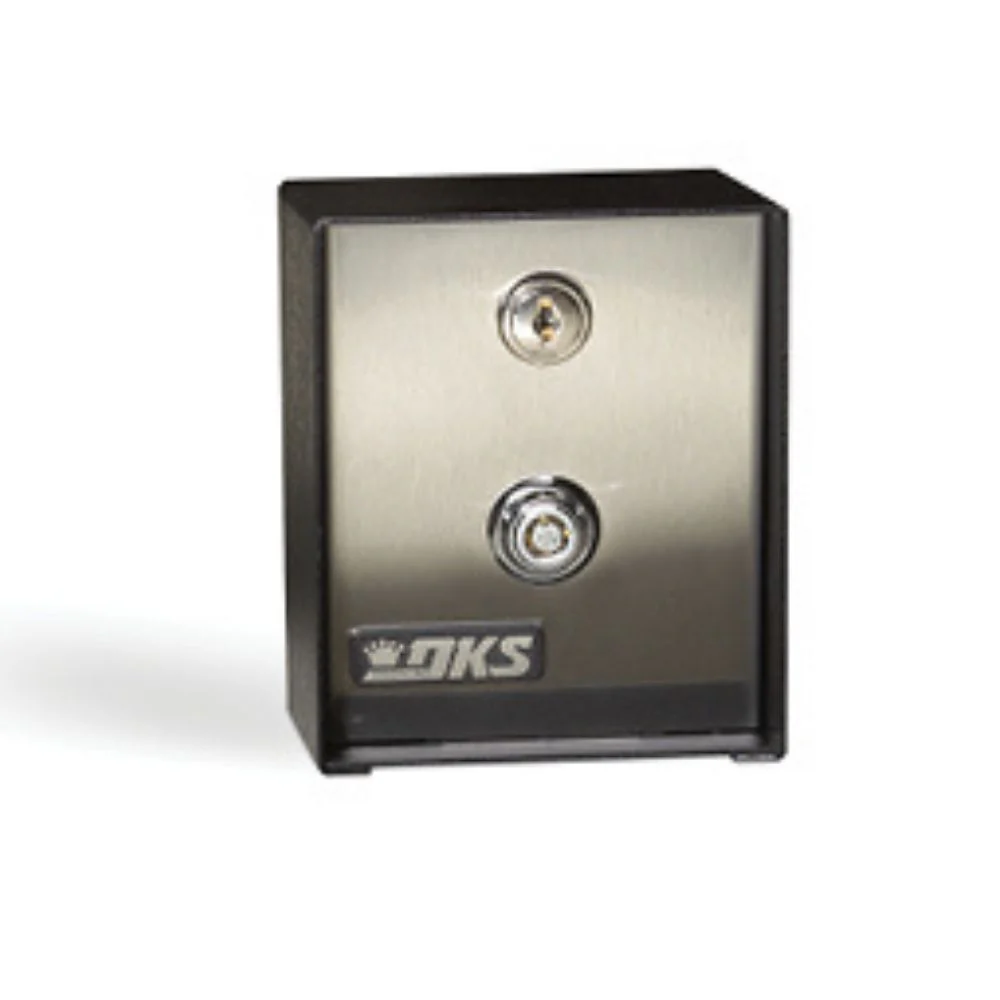

A Stand alone Ace cylinder Key Switch in a surface mount with black housing and stainless steel faceplate.

Key switches are the most basic access control where simple entry is needed, or where security guards control entry. Ace cylinder key switches are used in applications where a higher degree of security is desired.

Features

• Provides convenience and security for basic access control applications
• Designed for outdoor or indoor use
• Can be post or surface mounted
• Two keys supplied with each unit
• Each key switch is housed in a rugged steel cabinet with a stainless steel faceplate making these switches vandal resistant
• 16 gauge steel box painted black

Technical Specifications

• Housing: Stainless steel face plates
• Key Cylinder Type: Ace type security key cylinder
• Output: Dry contact switch
• Constant contact, normally open
• Operating Temperature: -10°F to 145°F (-23°C to 62°C)
• Weight: 1210 approx. 4 Lbs. (1.8kg)
• Dimensions: 5.38"H x 4.5"W x 5.38"D

Manufacturer's Warranty Period

• 2 years
