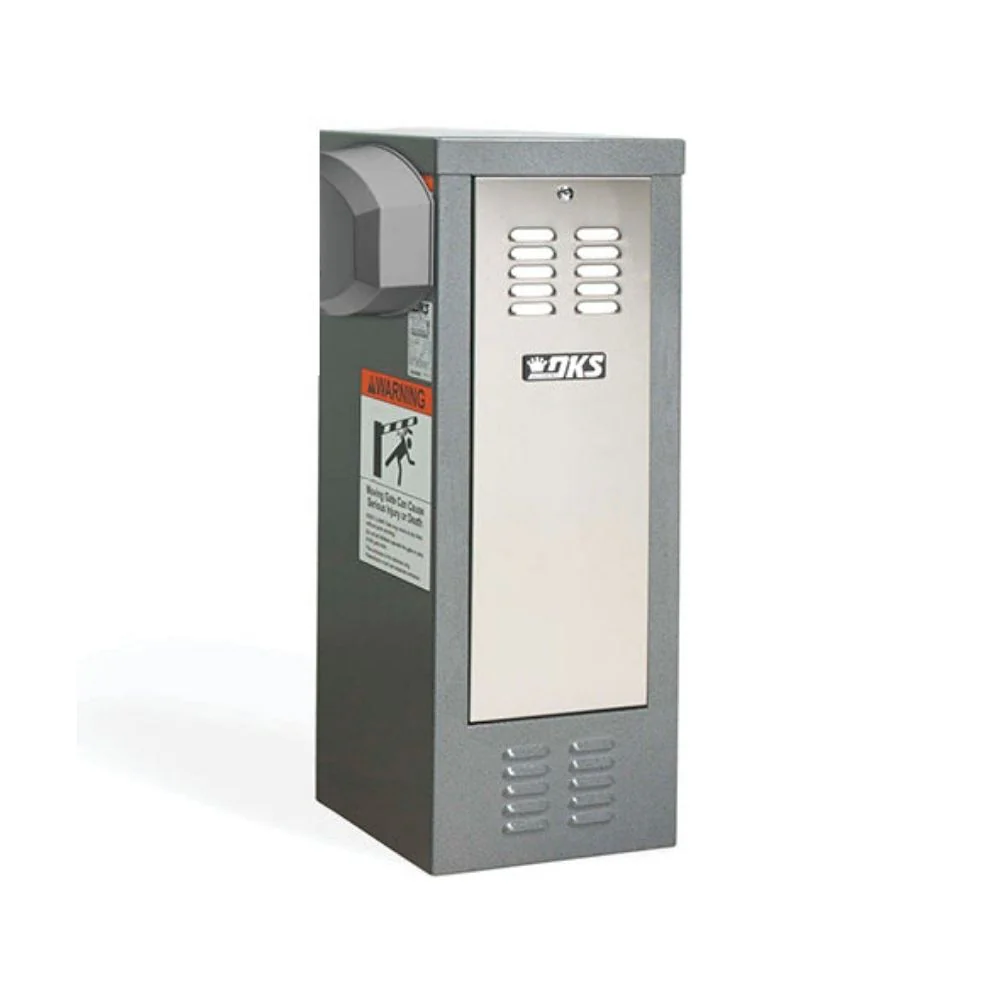

Doorking Barrier Gate Operator with DC Convenience Open Option (1/2HP, 115VAC, 5.4AMP) | DKS-1601-481

The 1601 operator is designed for single-lane (14 ft. max) vehicular traffic control in high-traffic commercial and industrial applications. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.

Arm And Hardware Kit Sold Separately

Technical Features

Mechanical

• Primary Reduction is provided by a 60:1 Worm Gear Reduction System running in a continuous oil bath.
• The arm rotates 90° in approximately 2.5 seconds
• G90 Galvanized Steel Housing- Gray
• Fail-Secure Mechanical Release Method
• 360º gearbox rotation before the motor changes direction.

• Left- or Right-Hand Mount

Gate Tracker

• Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.

Electrical

• Magnetic Electronic Limit Controls
• Auto-Close timer 1-23 seconds
• P.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate Operator
• Up Input Memory Buffer
• Down Memory Option
• Multiple Up Commands
• Port for plug-in Open (Up) Detector
• Port for plug-in Reverse (Down) Detector
• Built-in Power On/Off Switch

• Programming Switches

Miscellaneous

• Environmental: 10°F to 140°F (-12°C to 62°C)
• DKS Pedestrian Protection System: The system reverses Barrier Arm if a person is detected, and lowers Barrier Arm if an unauthorized vehicle enters.
• Compliant with UL 325 and 991. ETL Listed.
