Doorking DK Prox 1815-300 Proximity Card Reader Mounted On A Surface Mount Enclosure | DKS-1815-330

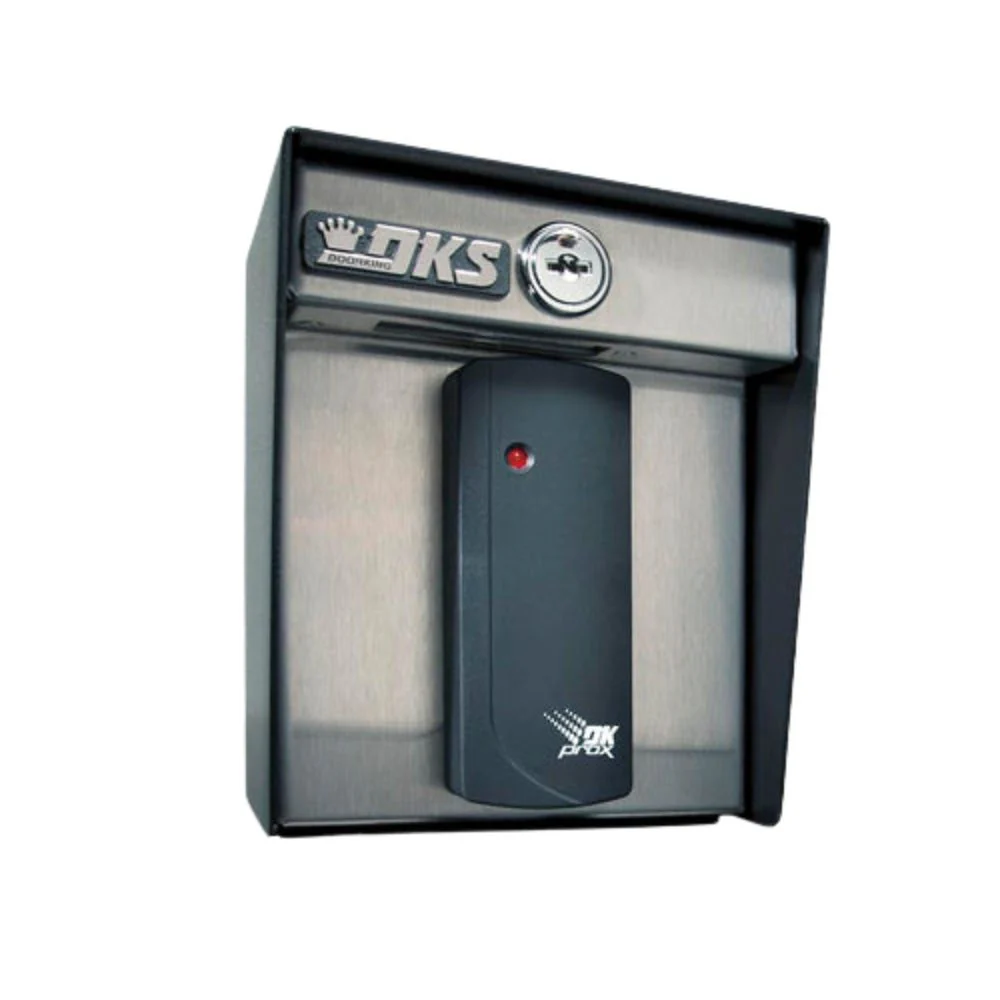

A DK Prox reader on a surface mount enclosure.

Features

• Because physical contact is not required, proximity card readers can read card data through common building materials like: concrete, brick, stone, drywall, plaster, glass, wood, plastic...in fact, through anything but metal.
• Proximity card readers are maintenance free. There are no parts to wear out or adjust.
• Passive card technology provides an unlimited number of "card reads" with no battery to wear out.
• Passive cards, unless they are physically abused, will last virtually forever.
• Clamshell, ISO Graphic and KeyTag type cards are available.
• Read ranges are not absolute and will vary depending on several factors including where the reader is mounted, the mounting surface and product application.
• These card readers output their data in 26-bit wiegand format.
• Most card readers operate on 5-12 VDC. AVI systems may operate at different voltages.
• These card readers are not designed for stand-alone operation (see 1520/1524 readers) and must be connected to an access controller (DKS 1830 Series systems).

Technical Specifications

• Output: 26-bit Wiegand
• PROXIMITY CARD READERS
• Power: 12 VDC
• Range: Prox Readers: 2-4 in. (5.1 - 10.1 cm)
• LED(Red & Green)/Beeper: Proximity Readers Only
• Frequency: 125 kHz

Manufacturer's Warranty Period

• 5 years

Product Literature

• Doorking 1815-330 Cut Sheet
• Doorking 1815-330 Warranty Policy
