Doorking Swing Gate Operator Only (24VDC) | DKS-6006-380
Doorking Swing Gate Operator Only (24VDC) | DKS-6006-380

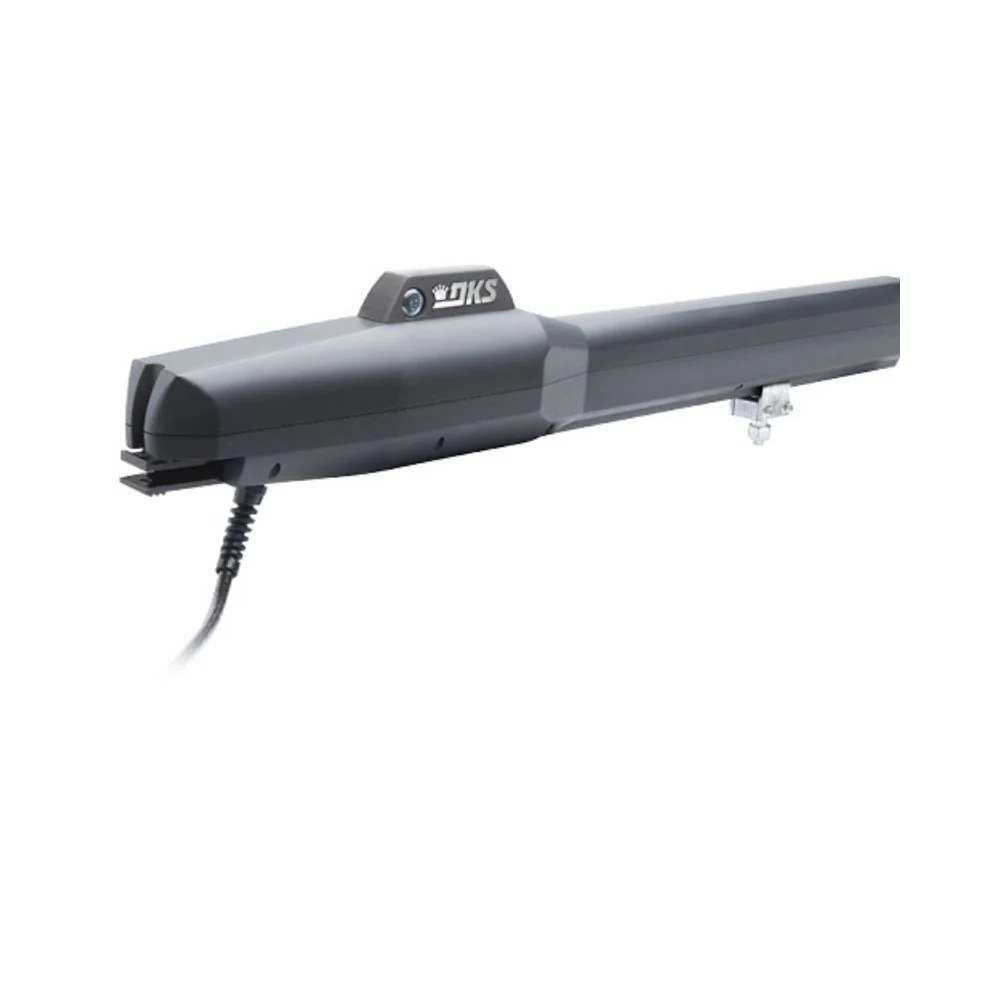

The 6006 actuator operates on 24 Volt DC power and features built-in limit switches that precisely control the start/stop speed, and travel of your gate. The microprocessor-based electronic control board provides many advanced features typically not found in operators in this class. The control box can be powered by 120 Volt AC, which is then converted to 24 Volt DC to power the actuator and control board. Two 120 Volt control boxes are available to choose from, Deluxe and Standard. The Deluxe control box includes three 120 VAC outlets to power accessory transformers. Both include 3.5 Ah (Amp Hour) batteries for backup power operation. You can also select our Solar Powered control box, which eliminates the need for high voltage power runs.
Technical Features
Mechanical
- Primary Reduction: worm gear 1:27
- Speed: 90° in approximately 18-20 secs.
- Maximum Opening: 110°
- Case: 3.5mm double-painted aluminum
- Easily adjustable magnetic limits
- Left or right-hand mounting
- Keyed Release provided
- Fail-Secure mechanical
- Control Box enclosure rated NEMA 4X
- Protection Class IP54
Electrical
- Built-in Battery Charger
- Gate overlap for Dual Gate operation
- Built-in Reset and Test Button
- Maximum Run Timer
- Built-in High Current Warning
Miscellaneous
- Environmental: 32 F to 115 F (0 C to 46 C)
- UL 325 and 991 Compliant, ETL Listed
Technical Specifications
- Class of Operation: I, II
- Max Weight and Gate Length
- 600 lbs (272.1kg) / 18 ft (5.48m)
- 800 lbs (362.8kg) / 16 ft (4.87m)
- 1600 lbs (725.7kg) / 8 ft (2.43m)
- Motor: Continuous Duty DC Motor
- Input Power: 24 VDC
- Dimensions (actuator only): 4" (10.1cm)D x 6.25" (15.8cm)H x 40" (101.6cm)L
- Dimensions (120 Volt deluxe control box): 14.5"W x 24"H x 4.25"D
- Dimensions (120 Volt standard control box): 12.5"W x 16.5"H x 4.25"D
- Dimensions (24 Volt Solar control box): 13"W x 21"H x 8"D
Manufacturer's Warranty Policy
- 2-Year Limited Warranty
Product Literature
$333.00
Original: $1,109.99
-70%Doorking Swing Gate Operator Only (24VDC) | DKS-6006-380—
$1,109.99
$333.00Product Information
