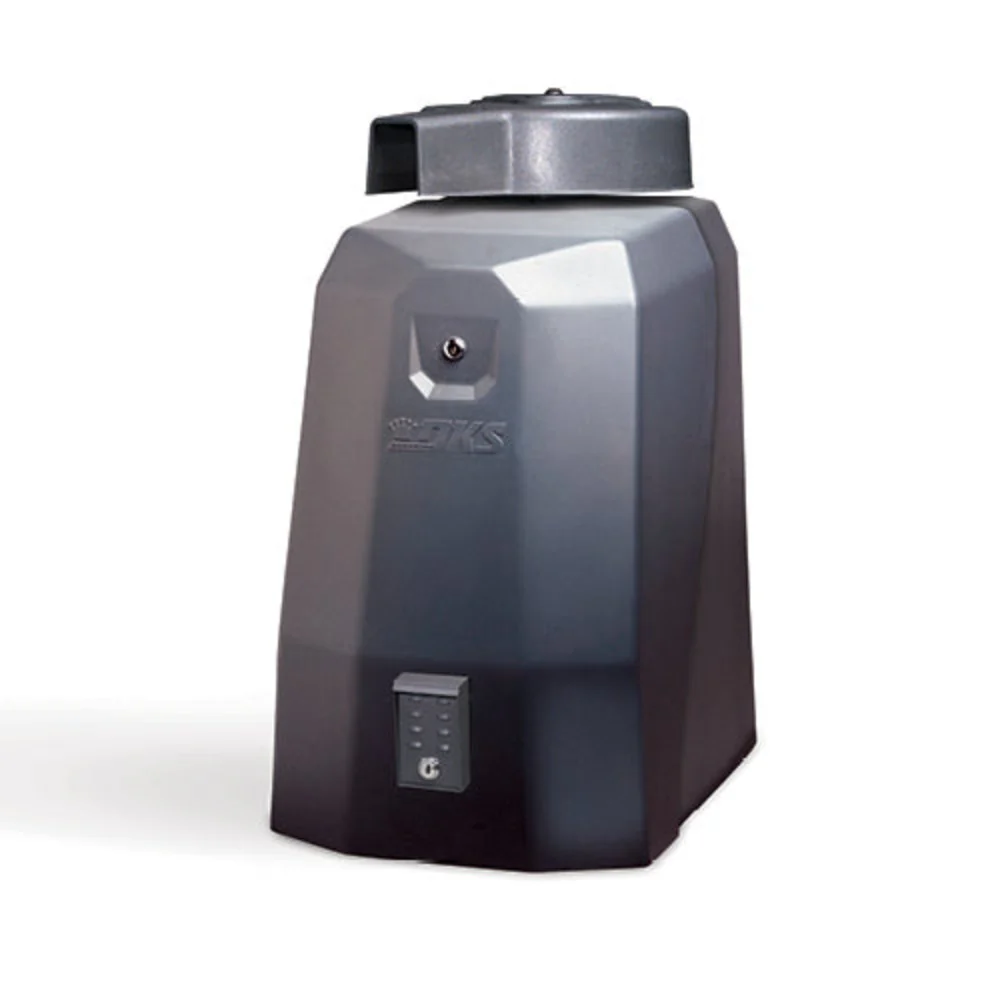

Doorking Swing Gate Operator (1/2HP, 115VAC, 5.4A, 60Hz) | DKS-6500-380

The 6500 series operators are designed to operate vehicular swing gates in residential, commercial, and industrial applications for both single and bi-parting gates. The unique design of this operator allows for easy access to the electronics and mechanical areas of the operator without ever having to remove the gate arm. This simplifies installation and maintenance. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt-driven gear box make this operator one of the quietest on the market today.

Includes

• Pad Mount
• Arm (6500-430)

Technical Features

Mechanical

• Primary reduction is provided by a pulley/belt driving a 60:1 worm gear reduction system running in a continuous oil bath.
• The 6500 rotates the gate 90° in approximately 12-14 seconds.
• Operator mechanics are mounted on a steel frame plated for corrosion resistance.
• Two-piece articulating arm mechanical slow-start / slow-stop function.
• Keyed access is provided to the release arm for manual gate operation in the event of a power outage.
• Split polypropylene housing simplifies installation and maintenance.
• A unique breakaway hub helps to protect the gearbox if the gate is rammed.

Gate Tracker

• Reporting output provides operator data to a DKS 1833,1835, 1837, or 1838 access control system.

Electrical

• Adjustable electronic magnetic limits
• Auto-close timer (1-23 seconds)
• Gate overlap feature for bi-parting (dual) gate operation
• Simple connection for secondary operator in bi-parting gate systems
• Built-in On / Off switch
• Built-in alarm reset switch
• Selectable shadow / reverse loop function
• Magnetic lock power
• Ports for plug-in open and reverse loop detectors (DKS plug-in detectors only)
• Three 115 VAC convenience outlets for accessory transformers

Miscellaneous

• Compliant with UL 325 and 991. ETL Listed
• Environmental: 10°F to 115°F (-12°C to 62°C)

Technical Specifications

• Class of Operation: I, II, III, IV
• Max Gate Length: 18 ft (5.5 m)
• Max Gate Weight: 700 lb (318 kg)
• Dimensions: 18.38"W x 31.63"H x 23.25"D
• Motor: 1/2 HP Continuous Duty AC Motor
• Input: 115 VAC, 60 Hz, 5.4A

Manufacturer's Warranty Policy

• 5-Year limited warranty

Product Literature

• Doorking 6500 Swing Gate Operator Specifications Sheet
• Doorking 6500 Swing Gate Operator Quick Start
• Doorking 6500 Swing Gate Operator Installation Guide
• Doorking 6500 Swing Gate Operator IPB
