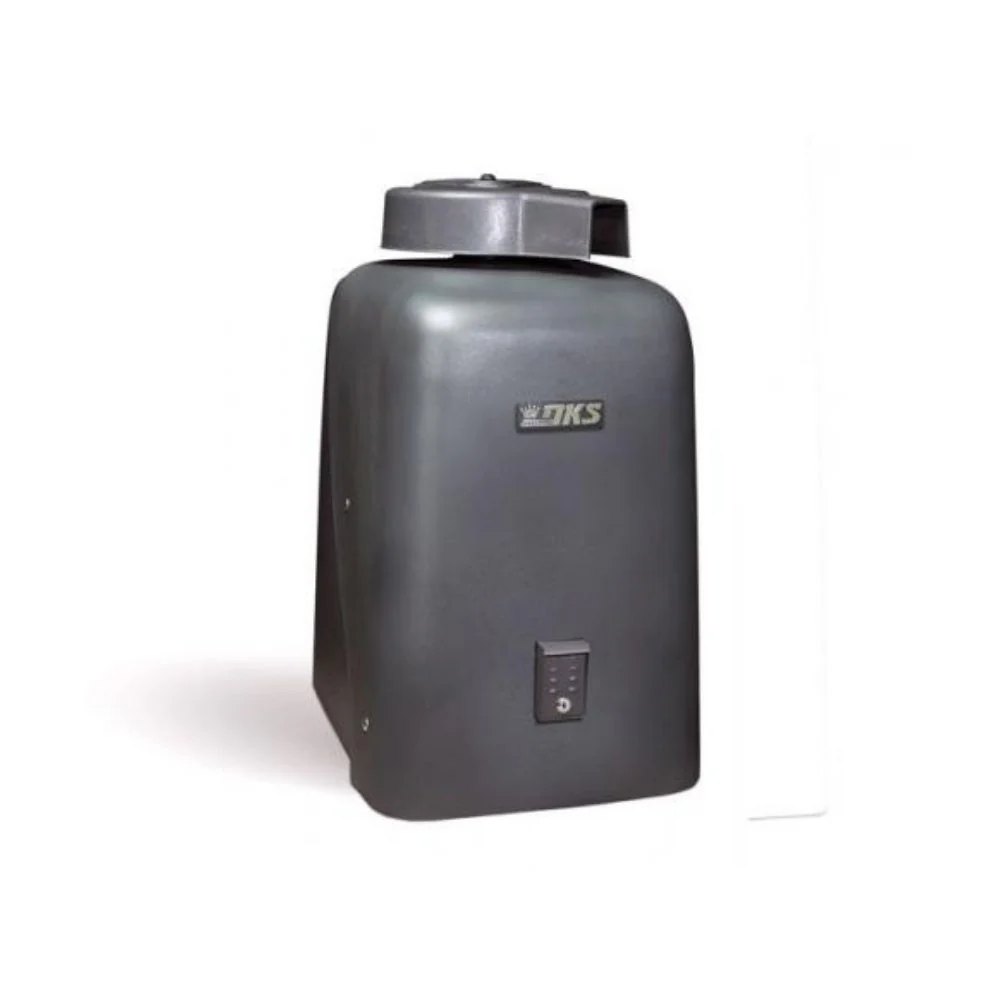

Doorking Swing Gate Primary Operator (1 HP, 115VAC, 9.7AMP) | DKS-6550-380

The 6550 operators are designed to operate very large vehicular swing gates in commercial and industrial applications. Requires monitored Type B1 and/or Type B2 entrapment protection devices.

Includes

• Arm (6550-430)

Technical Features

Mechanical

• Primary reduction is provided by a pulley/belt driving a 60:1 worm gear reduction system running in a continuous oil bath.
• Rotates the gate 90° in approximately 12-14 seconds.
• Operator mechanics are mounted on a steel frame plated for corrosion resistance.
• Two-piece articulating arm mechanical slow-start / slow-stop function.
• Keyed access is provided to the release arm for manual gate operation in the event of a power outage.
• Split polypropylene housing simplifies installation and maintenance, no need to remove the gate arm.
• A unique breakaway hub helps to protect the gearbox if the gate is rammed.
• Secondary operators used in bi-parting (dual) gate applications cannot be used as a stand-alone device.

Gate Tracker

• Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.

Electrical

• Adjustable electronic magnetic limits
• Auto-close timer (1-23 seconds)
• Gate overlap feature for bi-parting (dual) gate operation
• Simple connection for secondary operator in bi-parting gate systems
• Built-in On / Off switch
• Built-in alarm reset switch
• Selectable shadow / reverse loop function
• Magnetic lock power
• Ports for plug-in open and reverse loop detectors.
• DKS plug-in detectors only
• Three 115 VAC convenience outlets for accessory transformers.

Miscellaneous

• Environmental: 10°F to 115°F (-12°C to 46°C)
• A thermostatically controlled heater kit is recommended for colder environments.
• Compliant with UL 325 and 991. ETL Listed.

Technical Specifications

• Class of Operation: I, II, III, IV
• Max Gate Length: 25 ft (7.62 m)
• Max Gate Weight: 2000 lb (907 kg)
• Dimensions: 20.5"W x 38.5"H x 30"D (52cm W x 97.8cm H x 76.2cm D)
• Motor: 1 HP
• Input: 115 VAC, 60 HZ, 9.7A

Manufacturer's Warranty Policy

• 5-Year limited warranty

Product Literature

• Doorking 6550 Swing Gate Primary Operator IPB
• Doorking 6550 Swing Gate Primary Operator Specifications Sheet
• Doorking 6550 Swing Gate Primary Operator Installation Guide
