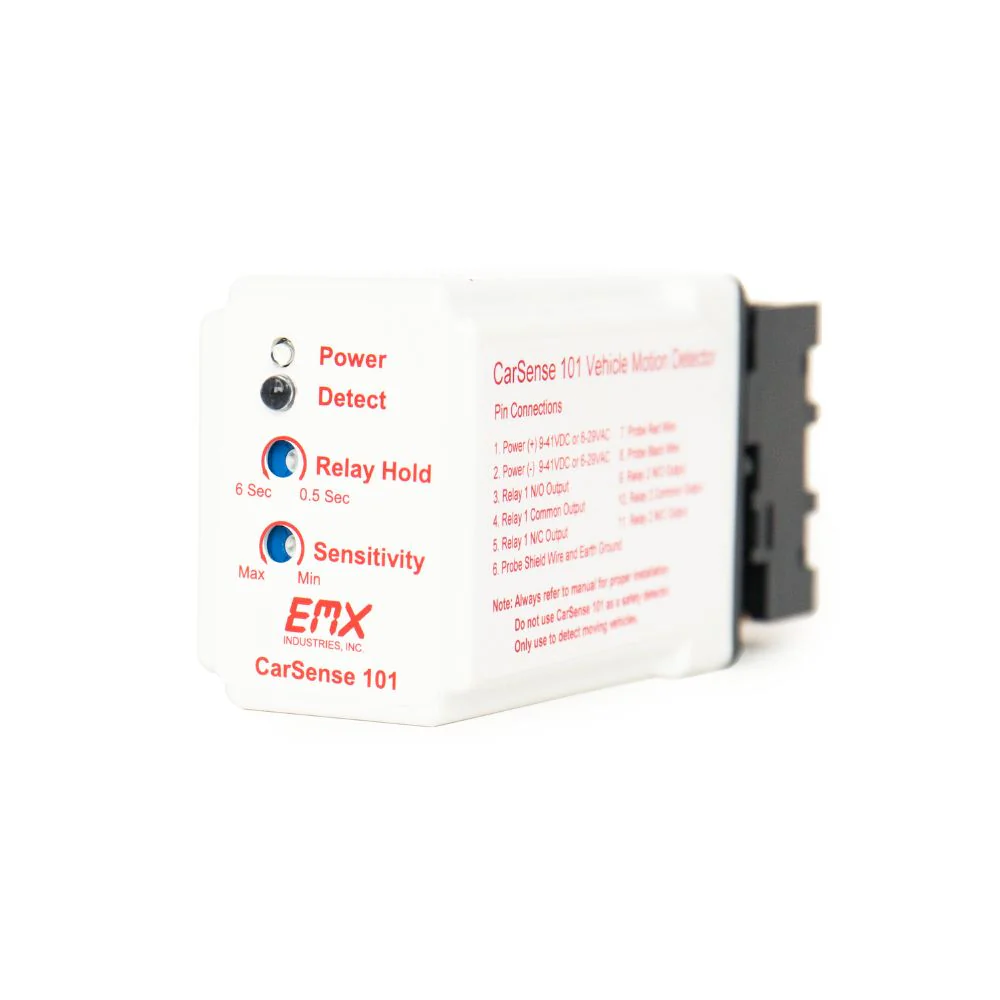

EMX Carsense 101 Vehicle Motion Detector with Sensing Probe | EMX-CS-101

The CarSense101 operates by detecting the movement of vehicles near the probe with an adjustable detection range up to 12 feet at a minimum speed of 5 mph. The CS101 will only detect a moving vehicle and will not detect a stationary vehicle. It may be used as a free exit sensor to allow gates to open and guests to exit without the use of a key fob or passcode. The CS101 may also be wired to notify a home automation system or security system that a vehicle is moving down a driveway. This vehicle motion detector requires a probe that is ordered separately and available in 50, 100, or 150-foot lead lengths.

The CS101 provides a solution for many vehicle detection challenges, including:

• Safety – detects moving vehicles in blind areas along a driving path and actuates warning lights
• Security – detects approaching vehicles or unauthorized movement of parked vehicles and actuates alarms, video cameras or other annunciators
• Access control – acts as a free exit vehicle detector for gates, overhead doors and parking barriers

Note: Sensing probe is sold separately.

Manufacturer's Warranty

• 2 Years

Features

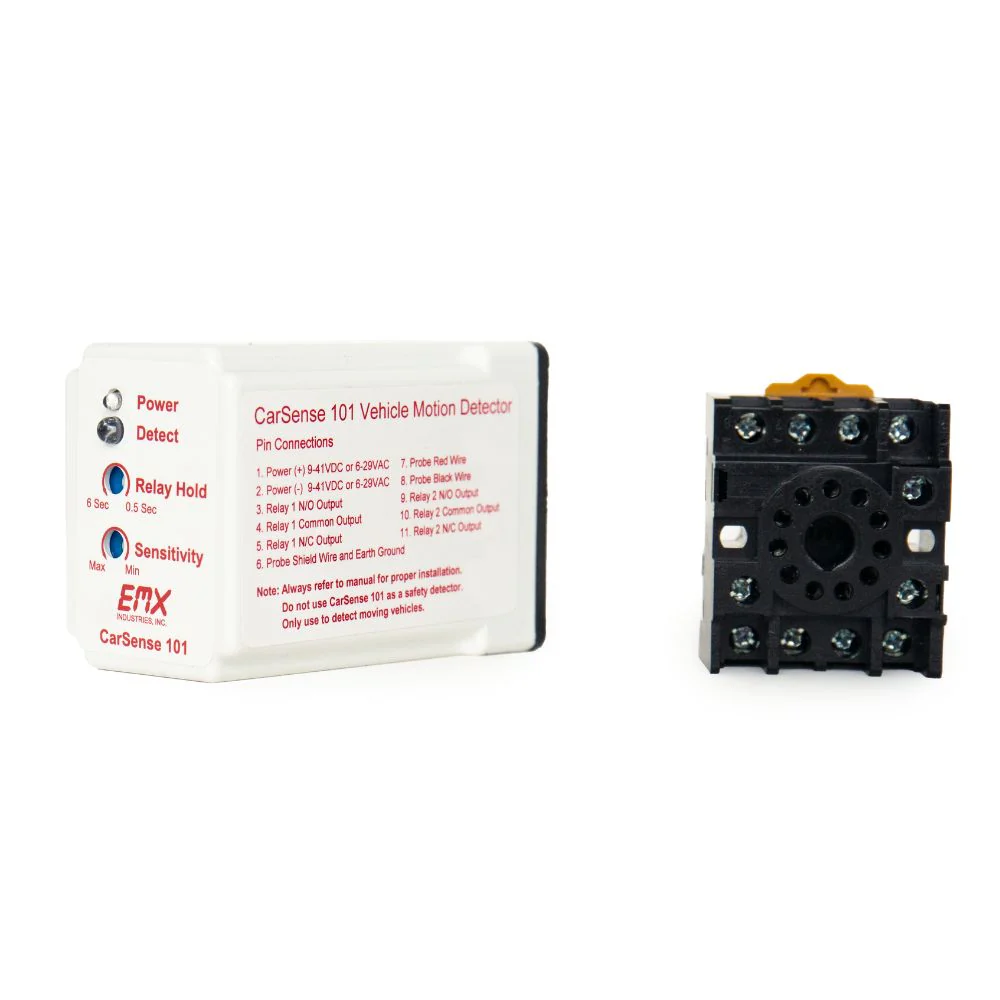

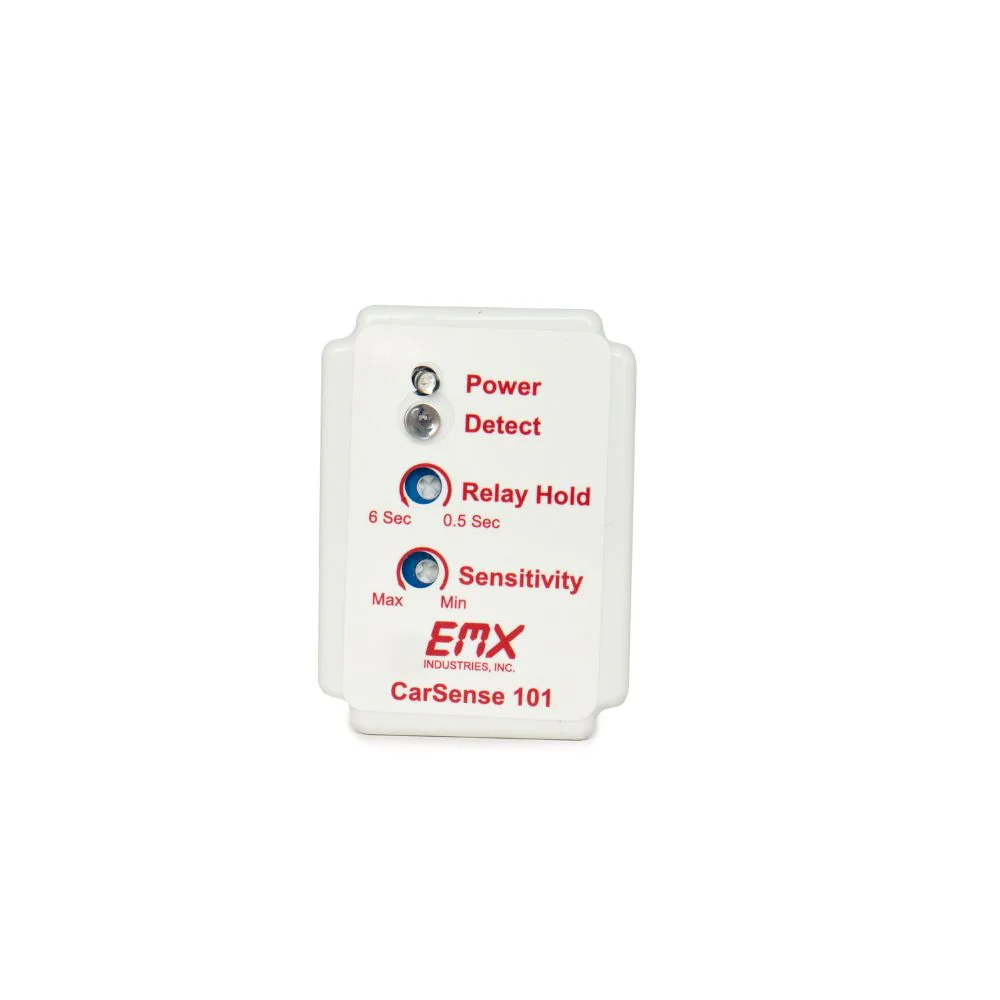

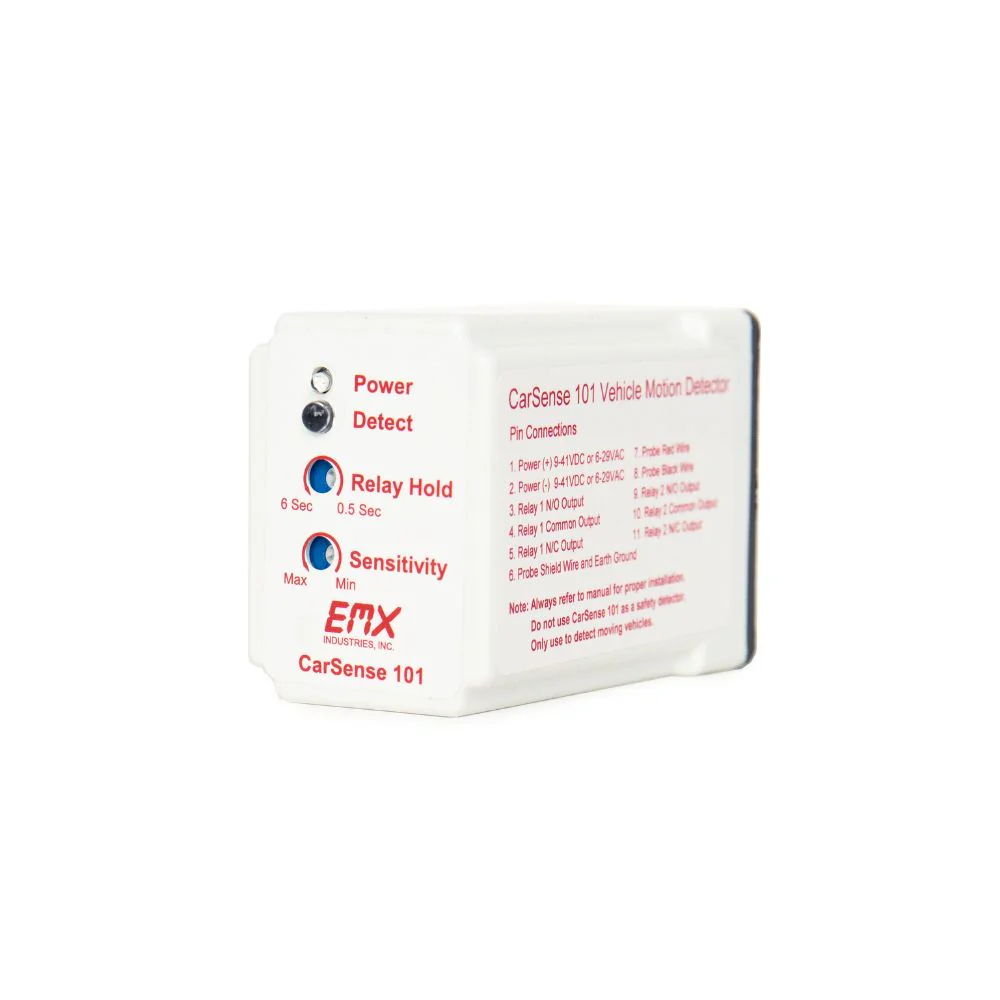

• Controls and indicators are mounted on front panel
• Available in 9 – 41 VDC 6 – 29 VAC
• Low 2.5 mA standby current consumption, makes it an excellent choice for solar power applications.
• Housed in a small, relay-type housing
• Surge protection
• Easy to use and install
• Easy upgrade or switch out to new devices
• Quick access to controls
• Buried sensing probe protects against potential intruders
• Wide power supply options
• Energy conservation

Technical Specifications

• Power Supply: 9 - 41 VDC or 6 - 29 VAC
• Power Supply Tolerance: +/– 20% from the power rating
• Standby Current: 2.5mA maximum
• Detect Current: 50mA maximum
• Relay Type: DPDT
• Relay Rating: 1A 24V DC 120V AC
• Sensitivity: High, Low adjustment
• Off Delay: 1 to 5 seconds adjustment
• Control Unit Temperature Range: -40° F to 170° F
• Probe Temperature Range: -40° F to 170° F
• Power-On Indicator: High-intensity Green LED
• Detect Indicator: High-intensity Red LED
• Sensitivity Control: Continuous adjustment
• Off Delay Control: Continuous adjustment
• Surge Protection: MOV, neon, and silicon protection devices

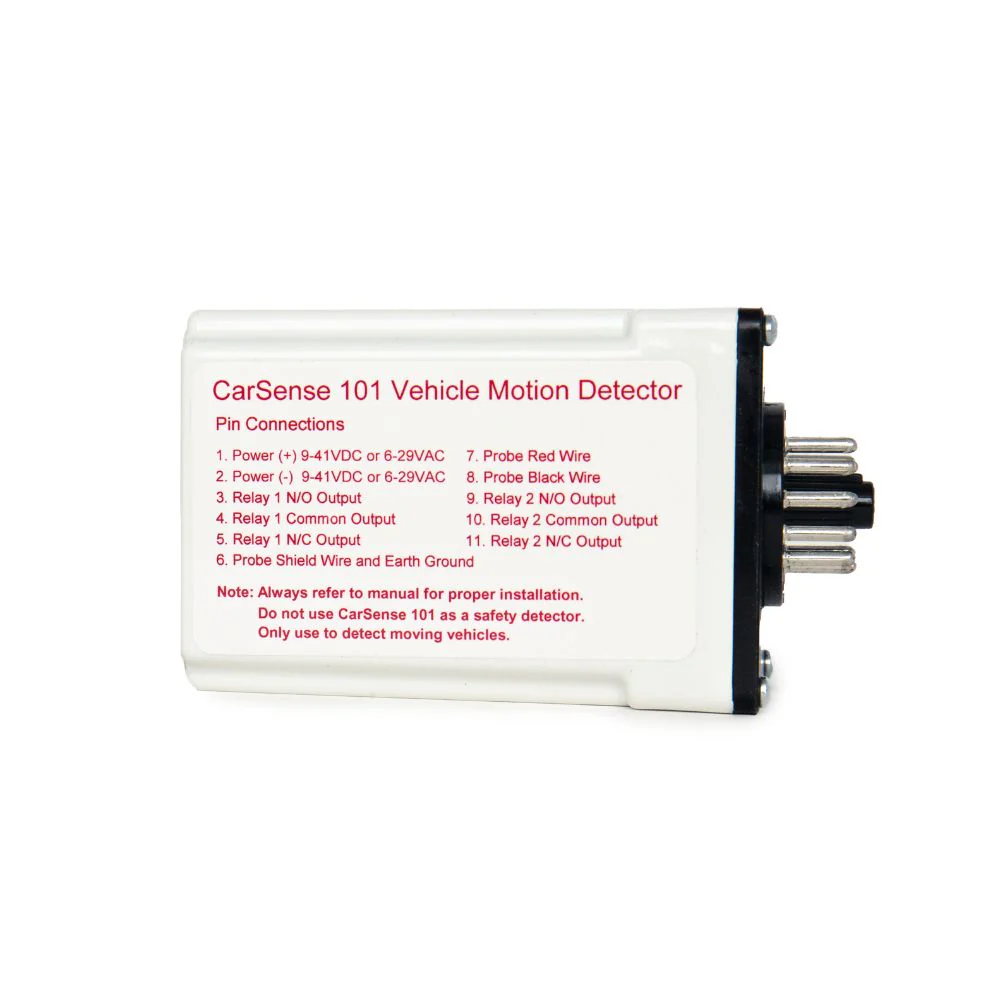

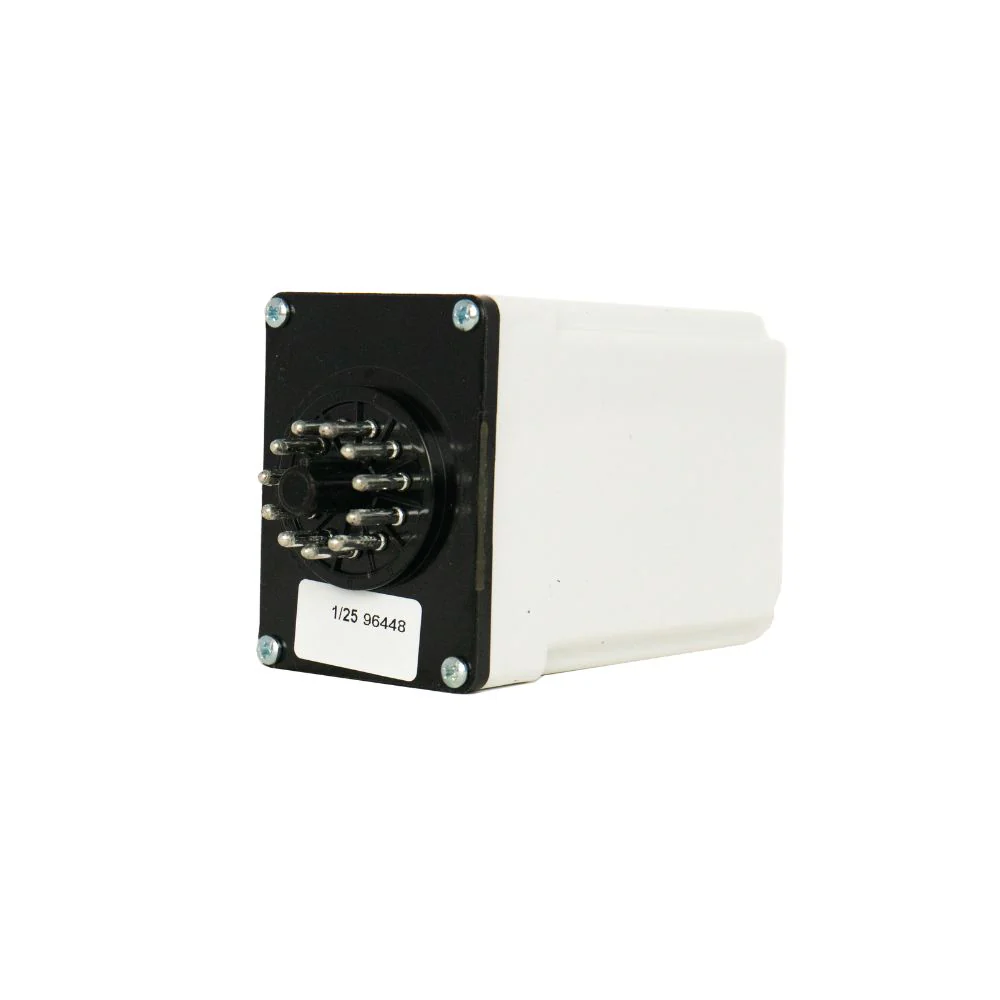

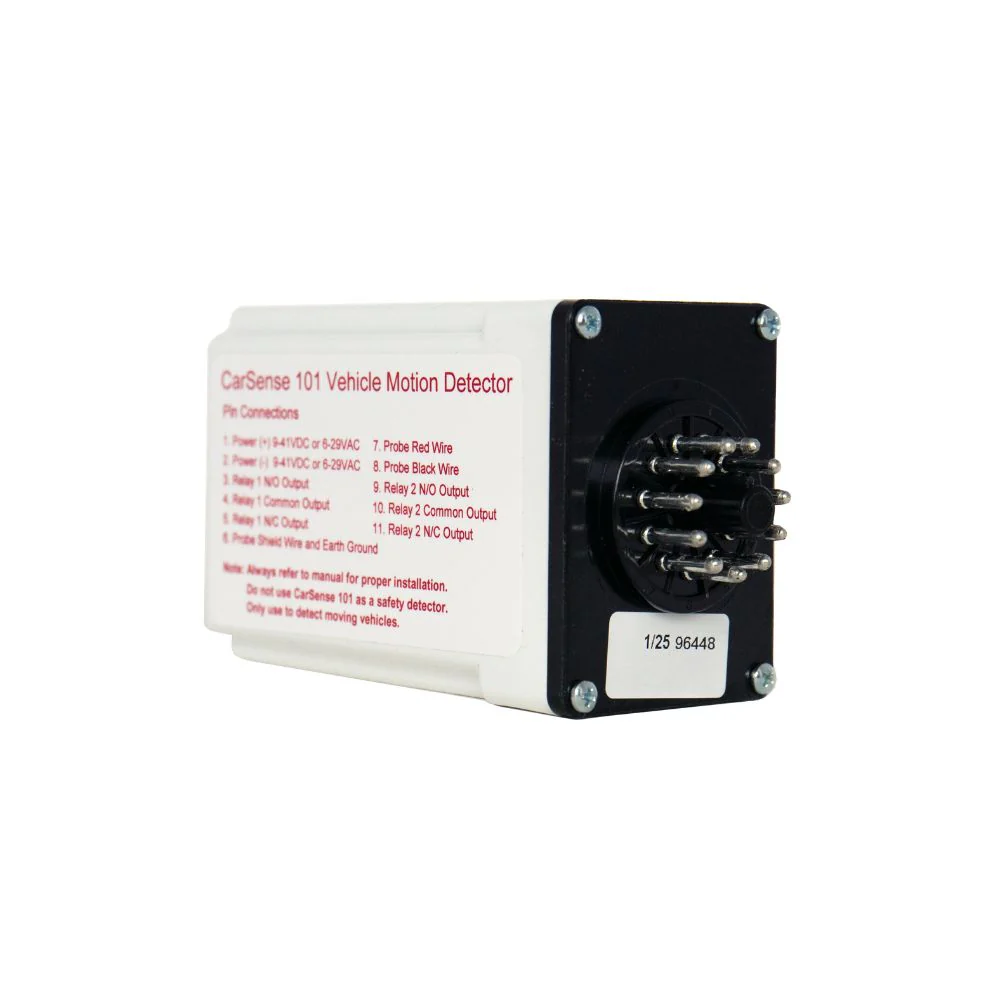

• Control Unit Housing: Break-resistant Polycarbonate H:2.2”(55mm), W:1.6”(41mm), D:3.25”(84mm)

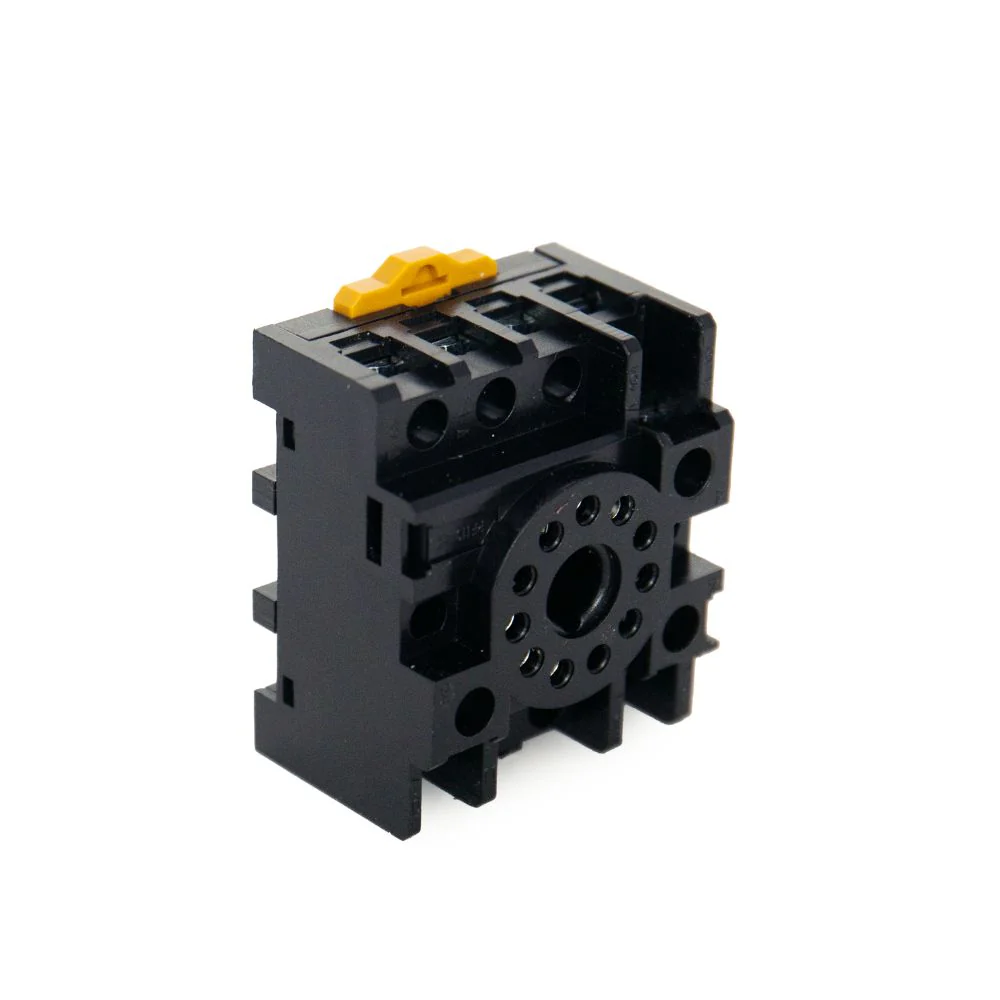

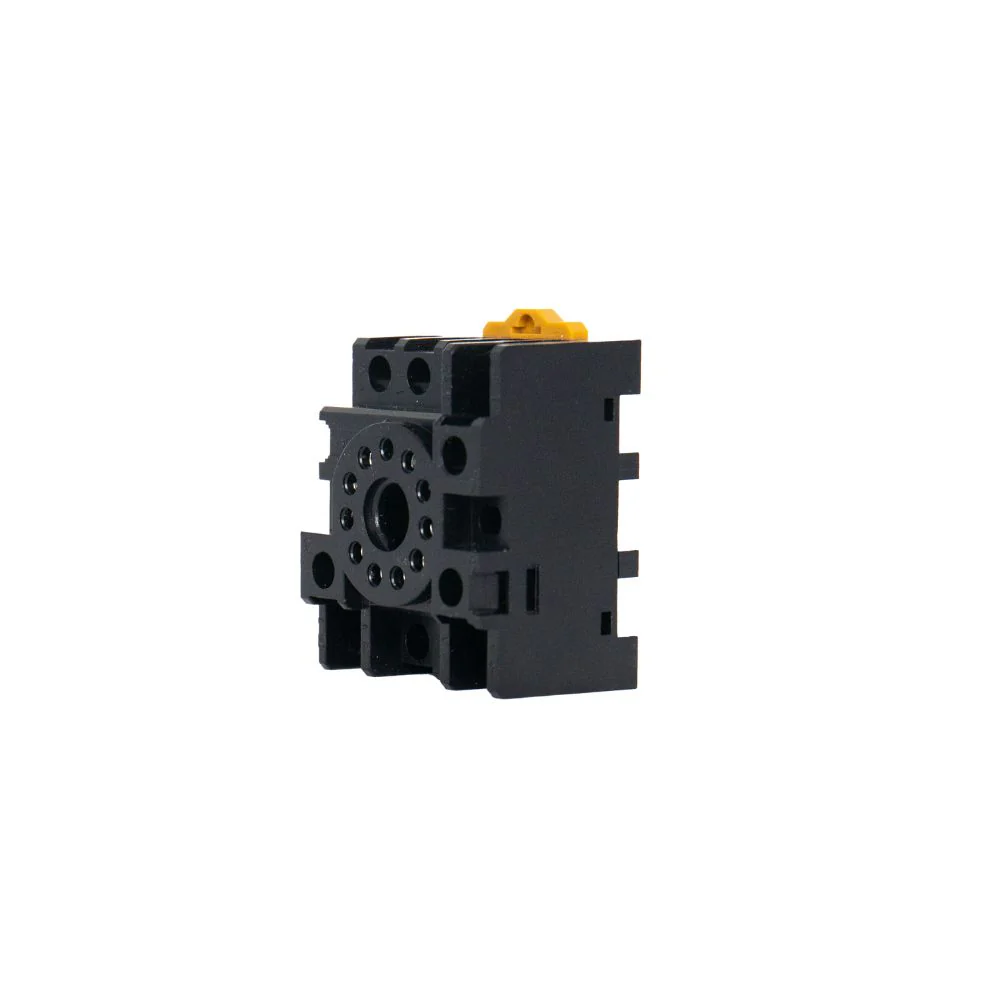

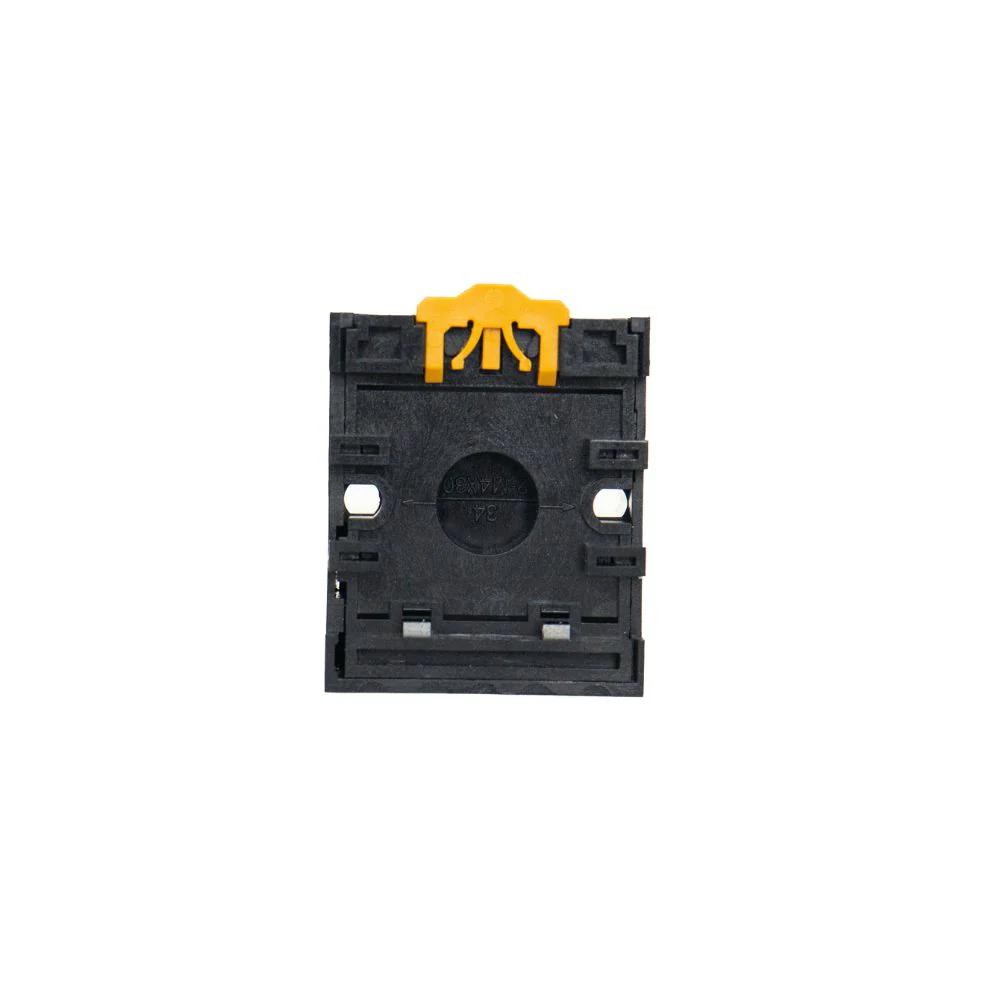

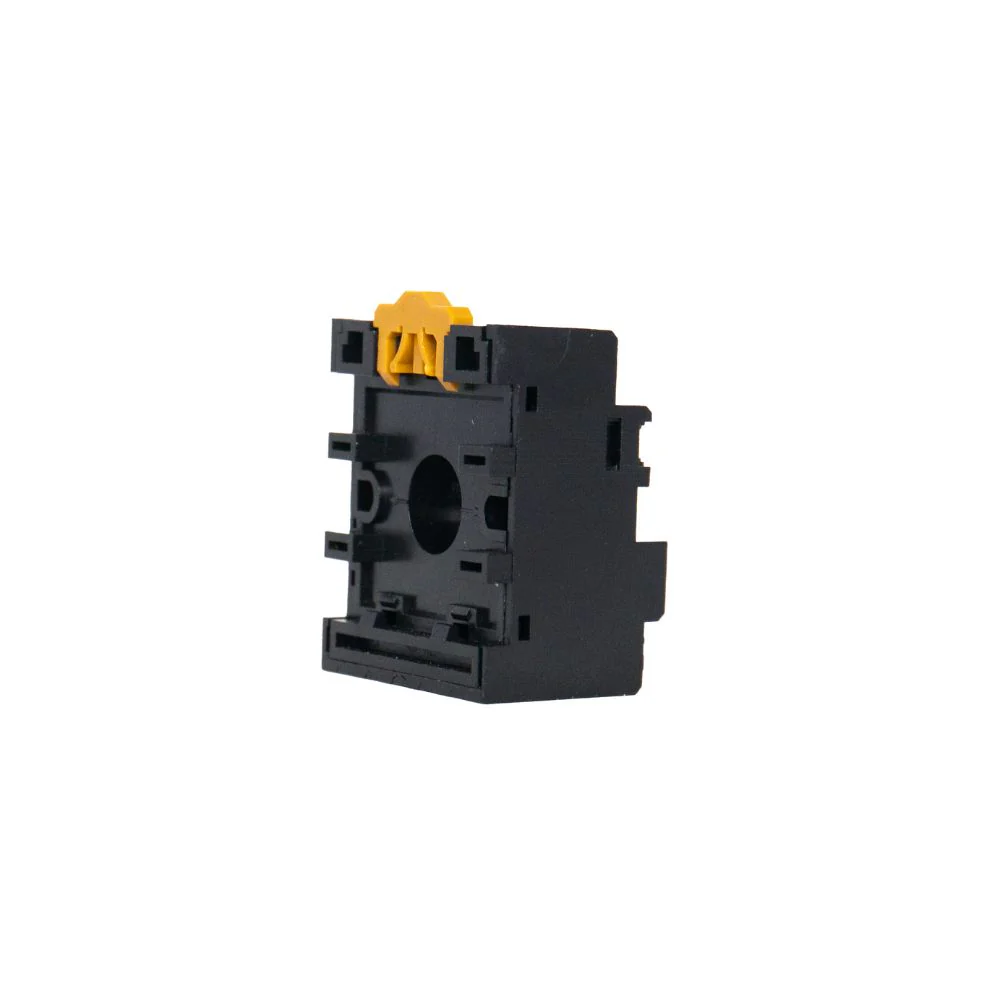

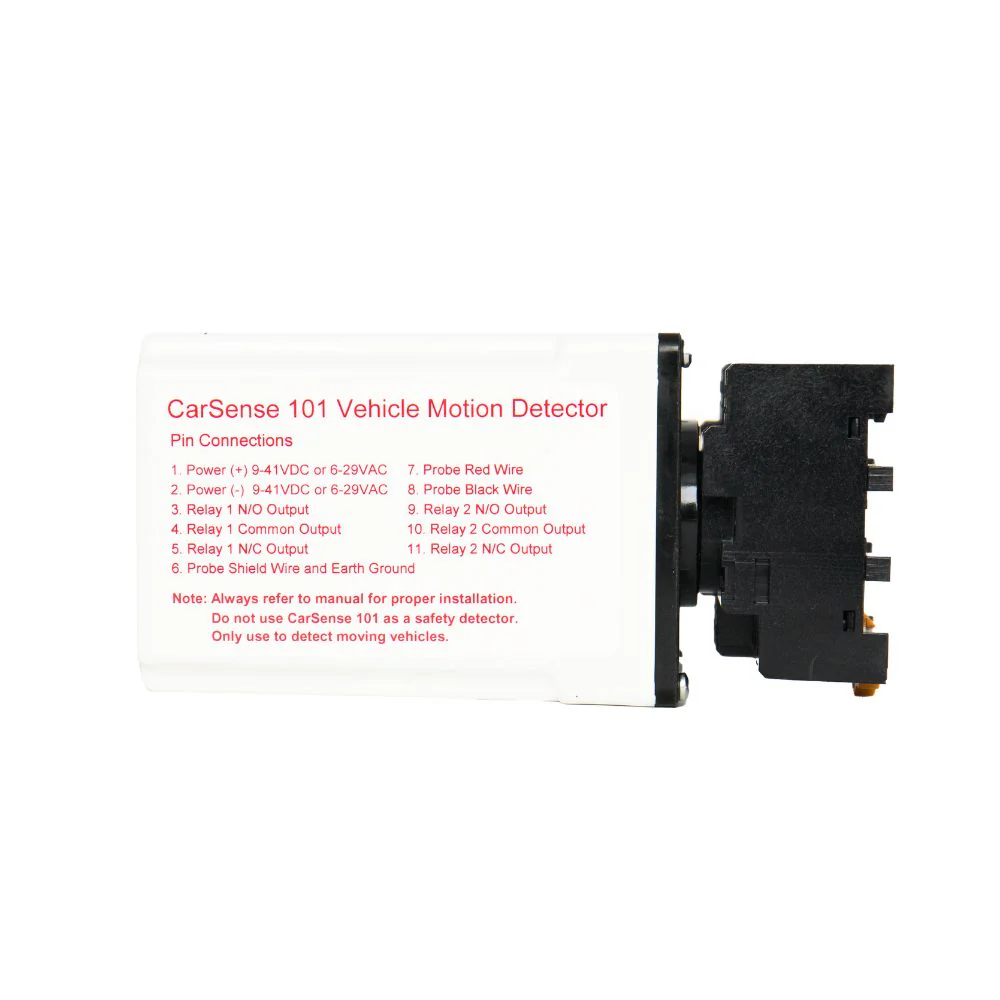

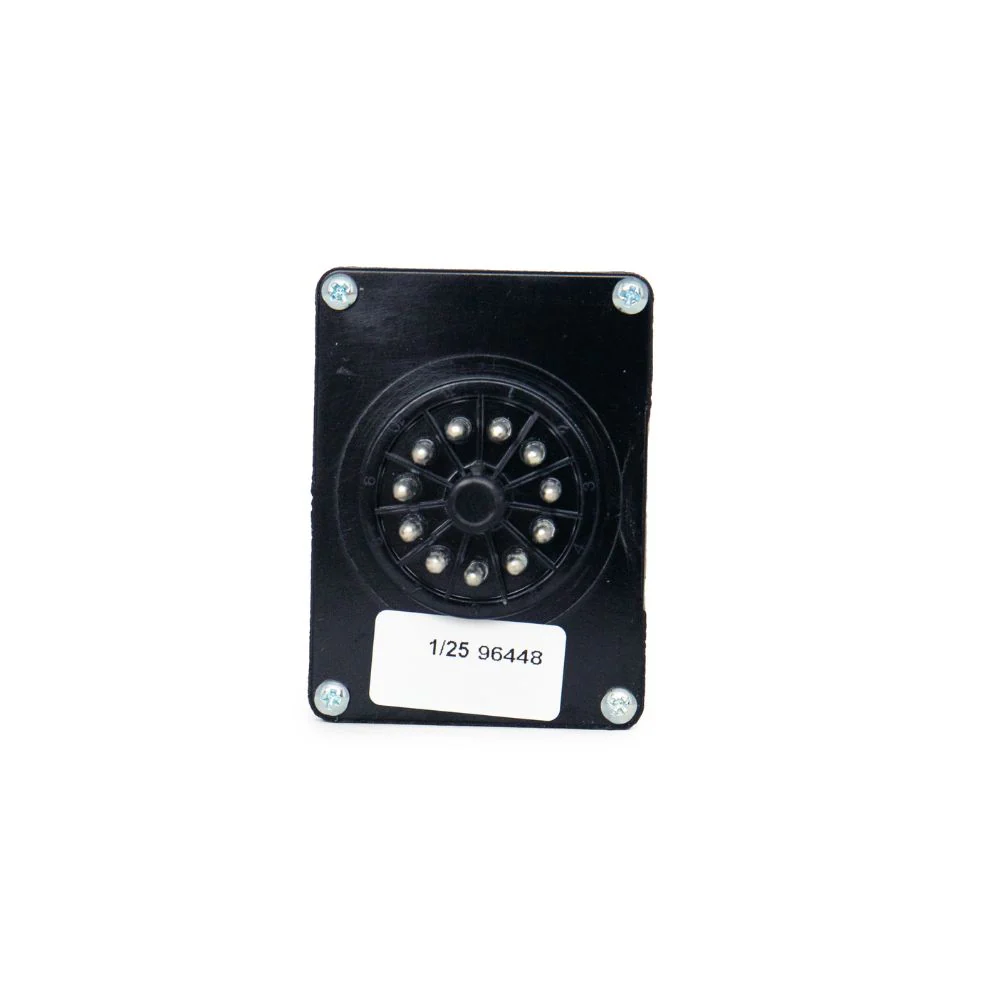

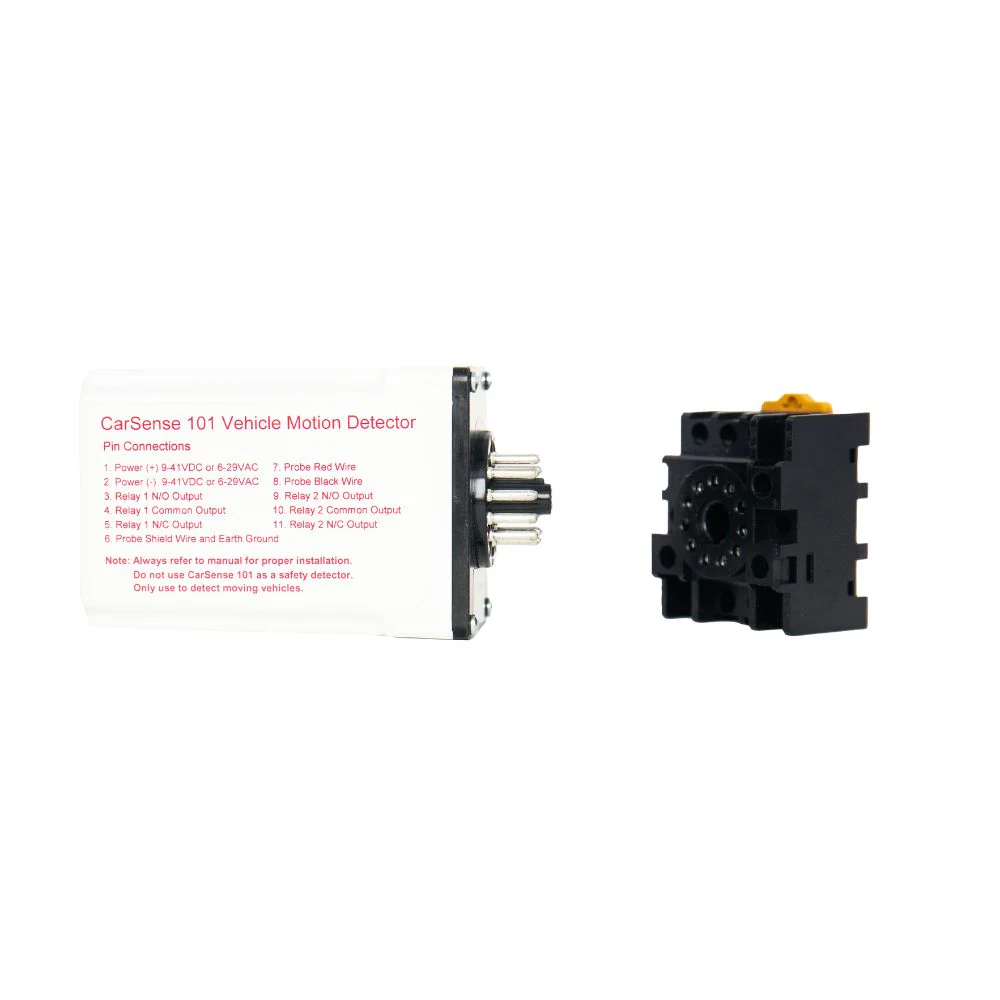

• Connector: 86CP11 11-pin connector
• Probe: PVC watertight housing (Length 17”, Diameter 1”) with shielded direct burial lead-in cable

Cautions and Warnings

• The CS101 is designed to detect moving vehicles. It is not suitable for use as a vehicle presence detector, such as a reversing loop for a gate or door.
• The CS101 detects ferrous metals. It will not detect aluminum, but will detect any moving ferrous metallic object.
• The probe must be stationary to function properly.
