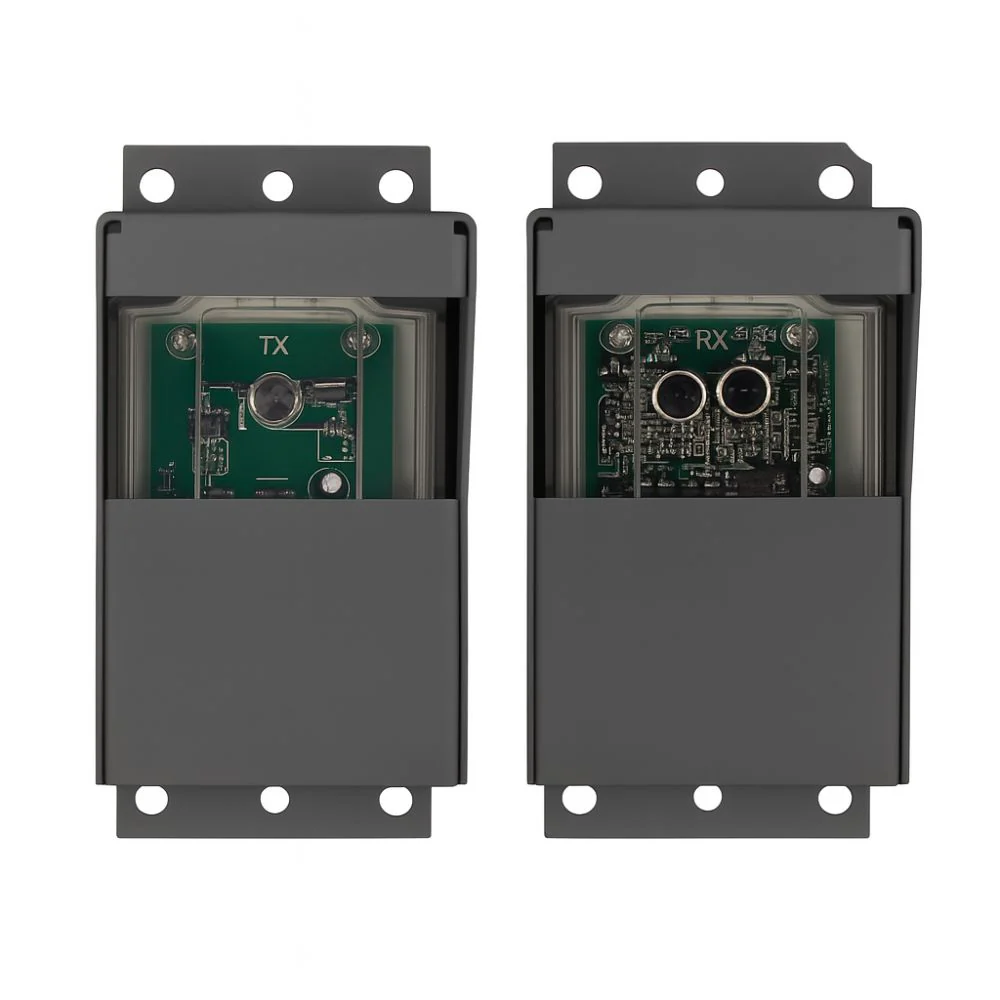

EMX UL325 Infrared Photoeye Kit (Grey Hoods) | EMX-IRB-325-KIT

The IRB-325-KIT - also known as EMX-1112-K is an external entrapment protection device type B1, non-contact sensor for use with automatic gates and doors. The device is UL325-2018 compliant with operators that require NC monitoring.

The long-range and thru-beam features of the IRB-325 offer a reliable solution to all external entrapment protection needs. A robust, NEMA 4X enclosure provides the durability required for any safety application. The lens-less design minimizes fogging and false triggering caused by small objects and provides for easy alignment.

Includes

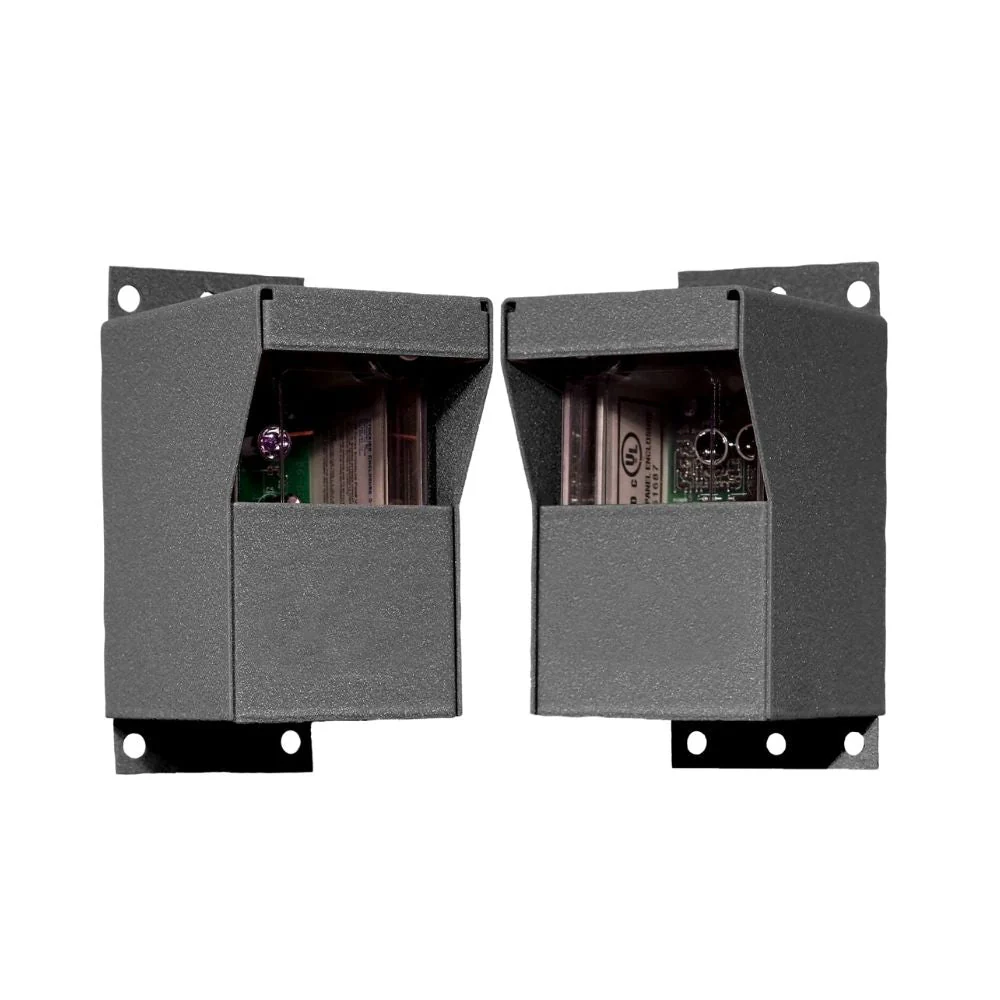

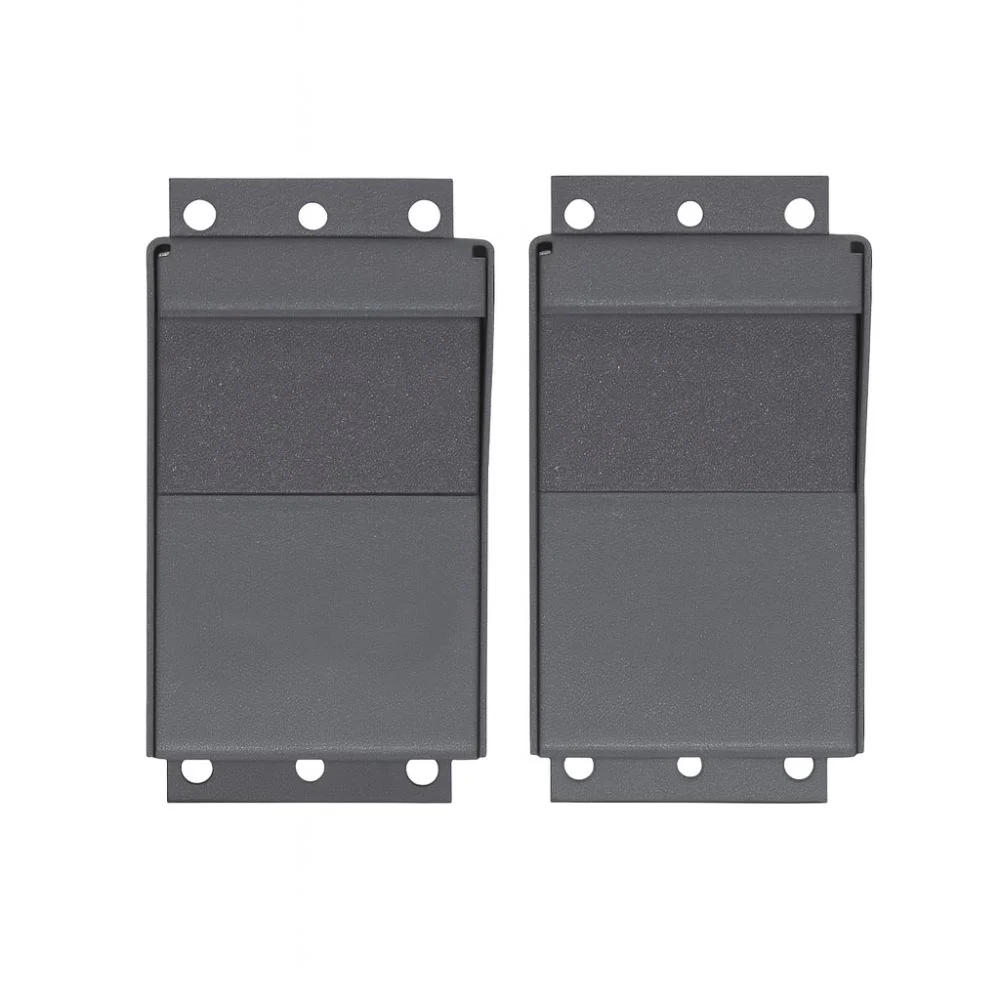

• Set of 2 - Grey protective hoods (IRB-325-HD)

Features

• UL325-2018 compliant
• Monitored NC operation
• 65 ft. operating range
• Compatible with many operators

Manufacturer's Warranty

• 2 Years

Technical Specifications

• Operating range: 6 to 65 feet
• Power supply: 12 VDC to 24VAC/DC
• Current consumption: 12 VDC standby/detect, 24VAC/DC standby/detect
• Receiver: 33mA/25mA, 56mA/38mA
• Transmitter: 47mA
• Relay contact rating: 1A @ 30VDC
• Operating temperature: -40°F...+170°F
• Housing material: UL and CSA Type 4, NEMA 4X, 3, 3R, 12, 13
• Housing dimensions: 5.03” (128mm) x 3.06” (78mm) x 3.02” (77mm
• Hood dimensions: 6.7” (170mm) x 3.3” (84mm) x 4.4” (112mm)

Product Literature

• EMX-IRB-325 KIT W/ GREY HOODS Spec Sheet
• EMX-IRB-325 KIT W/ GREY HOODS Instruction Manual
