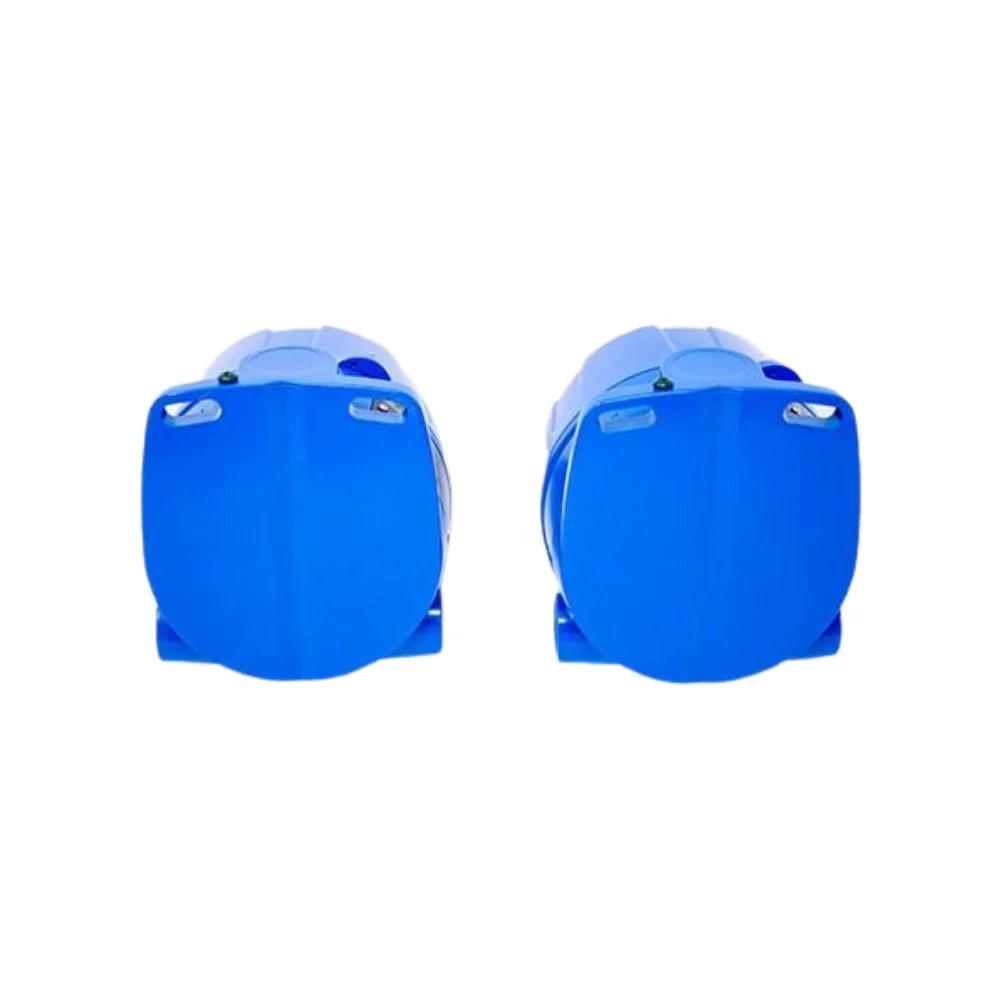

EMX IRB-325 RX and TX in Explosion Proof Housing | EMX-IRB-EXP

The IRB-EXP photocell is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP will work with any control board that accepts dry contact on the input. The easy-to-install IRBEXP is used with garage doors, rolling doors, parking barriers, and other equipment located in explosive environments.

Designed for explosive environments, the rugged IRB-EXP thru beam photoeye is used as a safety, reversing or opening device with automatic gate and door operators. The photoeye provides a signal to the operator that the beam is or is not obstructed. The IRB EXP operates up to 115 feet in a cast aluminum housing. A red alignment indicator on the receiver provides status information at a glance, making set-up and alignment easy.

Features

• Designed to operate in areas with explosive environments
• NEMA 4 and 7 housing
• NEC Class I, Groups B, C & D,Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC
• Copper free aluminum with epoxy finish
• Potentiometer range adjustment to allow more precise tuning to site
• Easy alignment and increased reliability
• Through beam design is not affected by shiny surfaces
• Modulated infrared to reduce the effect of sunlight, fog, rain, dust and dirt
• No focusing lens

Manufacturer's Warranty

• 2 Years

Technical Specifications

• Power: 12- 24volts AC or DC

• Current: TX = < 21mA, RX = 23mA standby 17mA detect

• Range: 3 - 115 feet

• Operating Temp: -40o F to +170o F

• Relay Contact Rating: 1A @ 24VDC or 120VAC

• Housing Material: NEMA 4 & 7 Cast Aluminum

• Dimensions: W – 4.69” x H – 4.5” x D – 3.44”

• Detection Angle: 18 degrees

• Gain Adjustment: Potentiometer

• Certifications: CLASS I Groups B, C & D, CLASS II Groups E, F & G, CSA, CENELEC, EExd IIC

Cautions and Warnings

• This product is an accessory or part of a system. Install the IRB-EXP according to the instructions from the gate or door operator manufacturer. Comply with all applicable codes and safety regulations.

Product Literature

• EMX-IRB-EXP Spec Sheet
• EMX-IRB-EXP Instruction Manual
