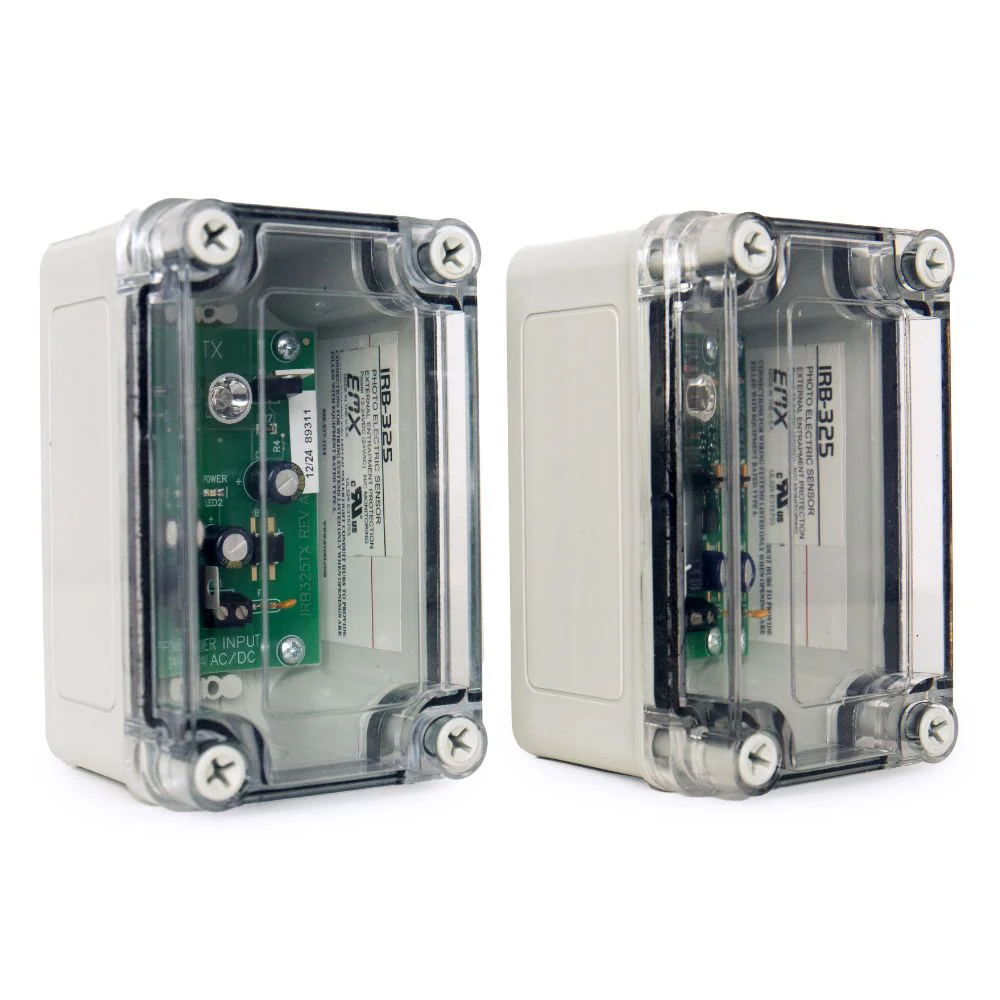

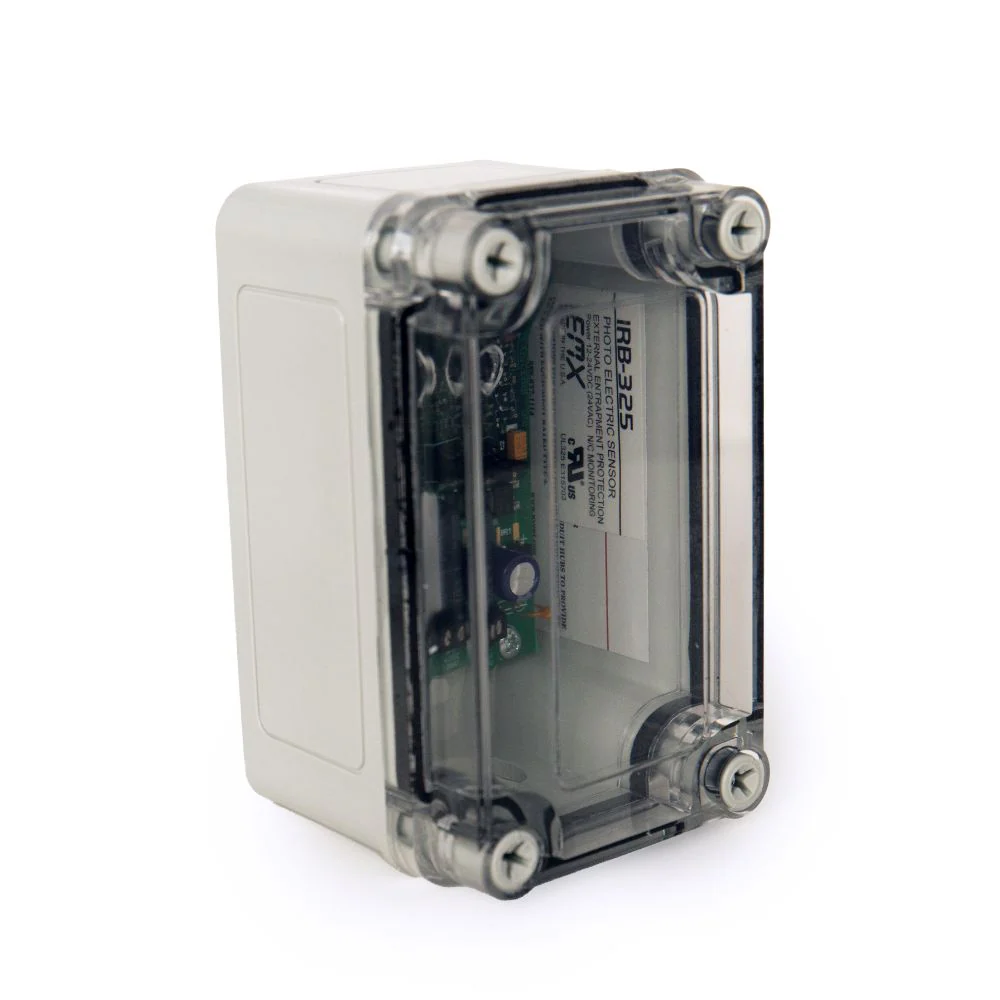

EMX Infrared Photoeye (Receiver and Transmitter) | EMX-IRB-325

The IRB-325 photocell is an external entrapment protection, device-type B1, non-contact sensor for use with automatic gate operators. The IRB-325 produces a detection signal when the infrared beam is broken.

The long-range and thru-beam features of the IRB-325 offer a reliable solution to all external entrapment protection needs. A robust, NEMA 4X enclosure provides the durability required for any safety application. The lens-less design minimizes fogging and false triggering caused by small objects and provides for easy alignment.

Note: IRB-325-HD Grey hood is sold separately.

Includes

• Transmitter
• Receiver

Features

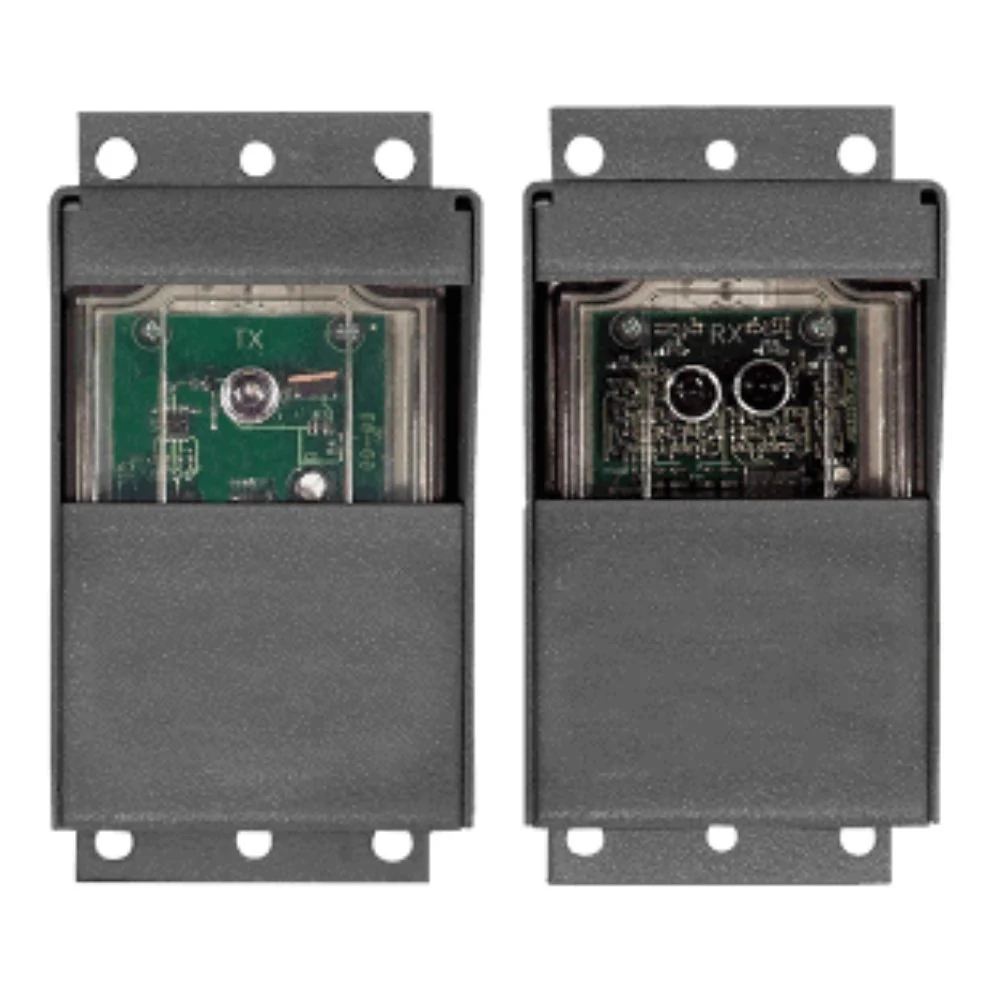

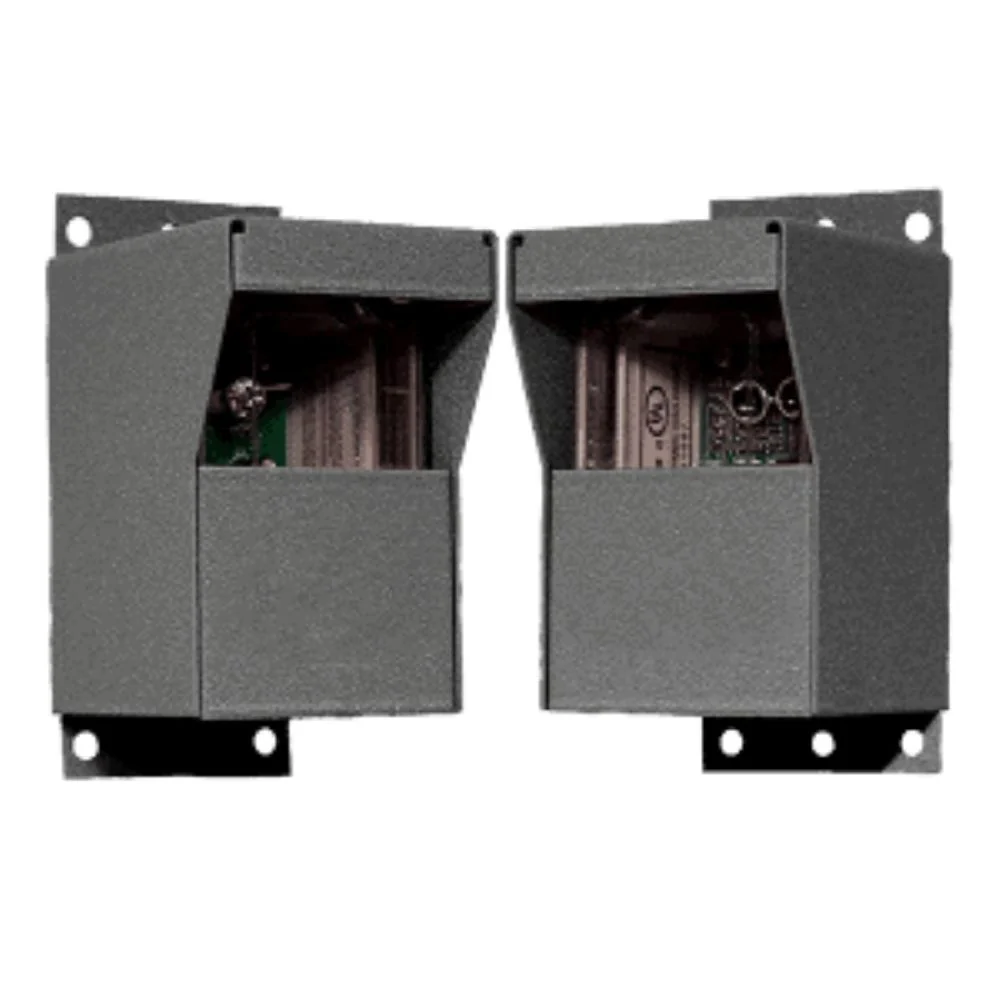

• Powder-coated steel hoods to provide damage protection
• Long-range
• UL 325 Compliant

Manufacturer's Warranty

• 2 Years

Technical Specifications

• Dimensions: Height = 5.03", Width = 3.06", Depth = 3.02"
• Housing: UL and CSA Type 4, 4X, 3, 3R, 12 13 Rating
• Power: 12V to 24V DC or AC 150mA
• Relay Contacts: 30V 1A
• Range: 6 to 65 feet
• Operating Temperature: -40F to +170F

Product Literature

• EMX Infrared Photocell IRB-325 Manual
• EMX IRB-325 Spec Sheet
