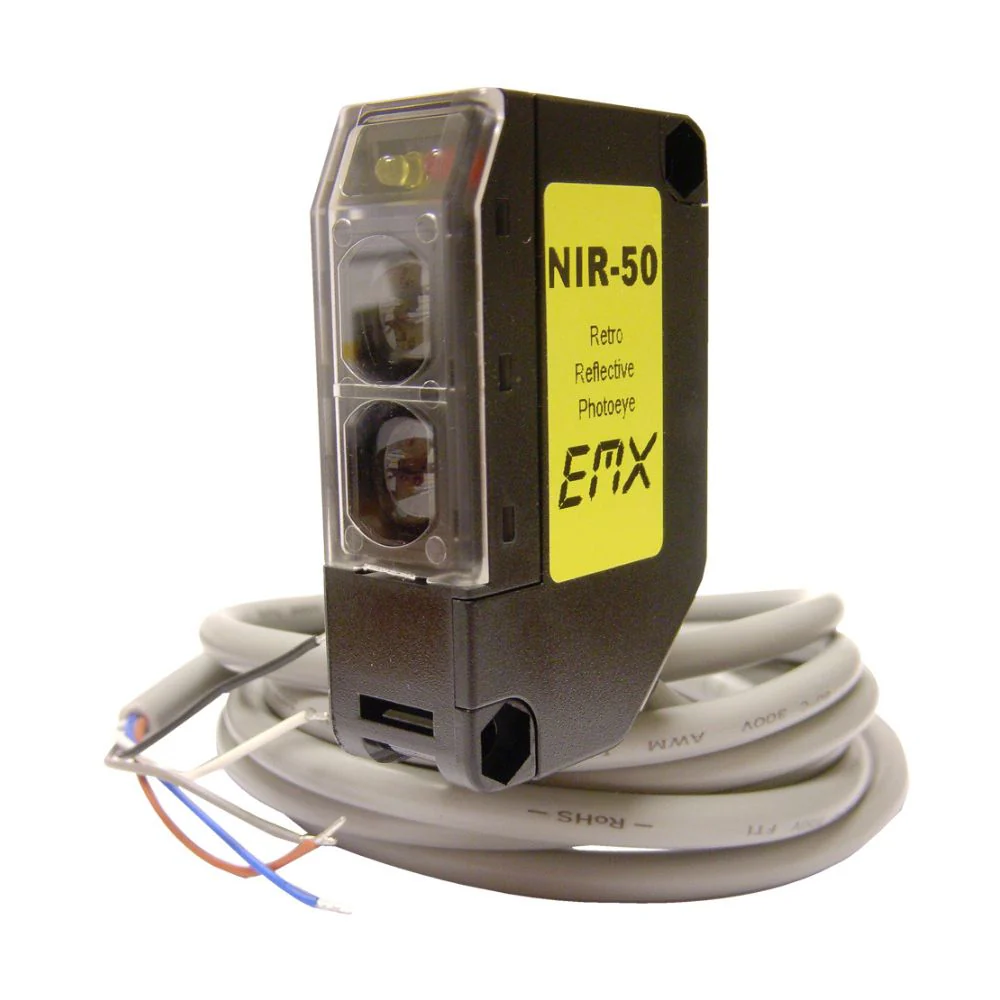

EMX Retroreflective Photoeye Only | EMX-NIR-50

The NIR-50 is a compact, extended-range retroreflective infrared photoeye designed for entrapment protection on overhead doors, gates, and barriers. As a Type B1 non-contact sensor, it eliminates the need for wiring across the roadway by using a reflector to return the beam to the photoeye. Operating up to 50 feet with a wide voltage range of 12–240 VDC and 24–240 VAC, the NIR-50 offers flexible installation, LED status indicators for quick setup and alignment, and reliable performance for automatic gate and door safety.

The NIR-50 retroreflective photoeye may be used as a reversing sensor for:

• Commercial overhead doors
• Gates
• Parking barriers

Features

• Retroreflective configuration
• 50 ft. operating range
• Sensitivity adjustment
• Wide range operating voltage
• IP66 enclosure
• Watertight package for reliable outdoor installation
• 2 LED indicators

Manufacturer's Warranty

• 2 years

Technical Specification

• Operating Temperature: -20° C to +55°C (-4°F to +131°F)
• Operating Voltage: 12 – 240 Volts DC, 24 – 240 Volts AC
• Dimensions: H = 2.5”, D = 1.5”, W = 0.75”
• Lead Wire: 6 feet
• Response Time: 10 ms maximum
• Fail-Safe Relay Output: 125V AC 0.6A, 110V DC 0.6A, 30V DC 2A.
• Environmental Protection: IP66 (IEC)
• Certifications: CE
• Sensing Range: 50 ft.

Product Video

Product Literature

• EMX-NIR-50 Spec Sheet
• EMX-NIR-50 Instruction Manual
