EMX Retroreflective Photoeye Kit | EMX-NIR-KIT

Our NIR retroreflective photoeye sensor provides entrapment protection for commercial overhead doors, gates, and parking barriers. With its flexible voltages, compact design, and LED indicators, this photoeye is easy to use and install.

The NIR retroreflective photo eye kit, also known as the EMX-5200-K may be used as a reversing sensor for:

• Commercial overhead doors
• Gates
• Parking barriers

Includes

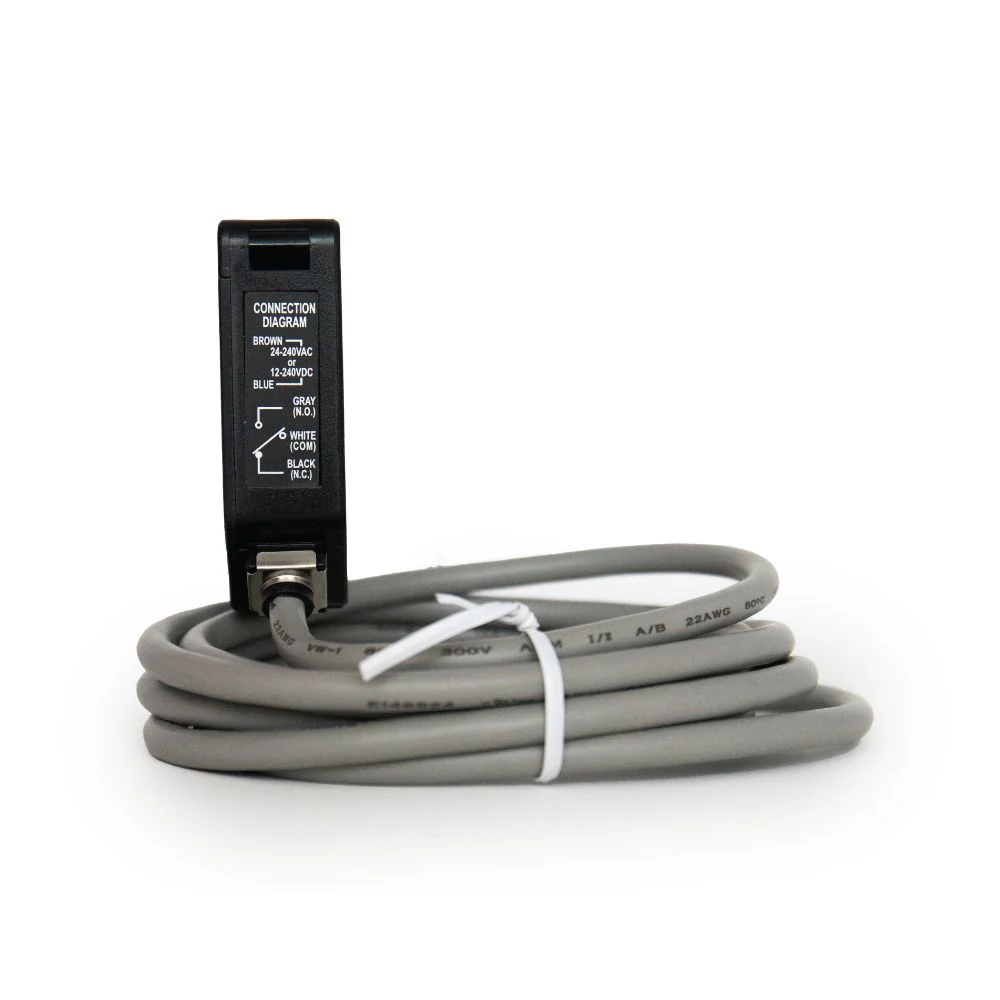

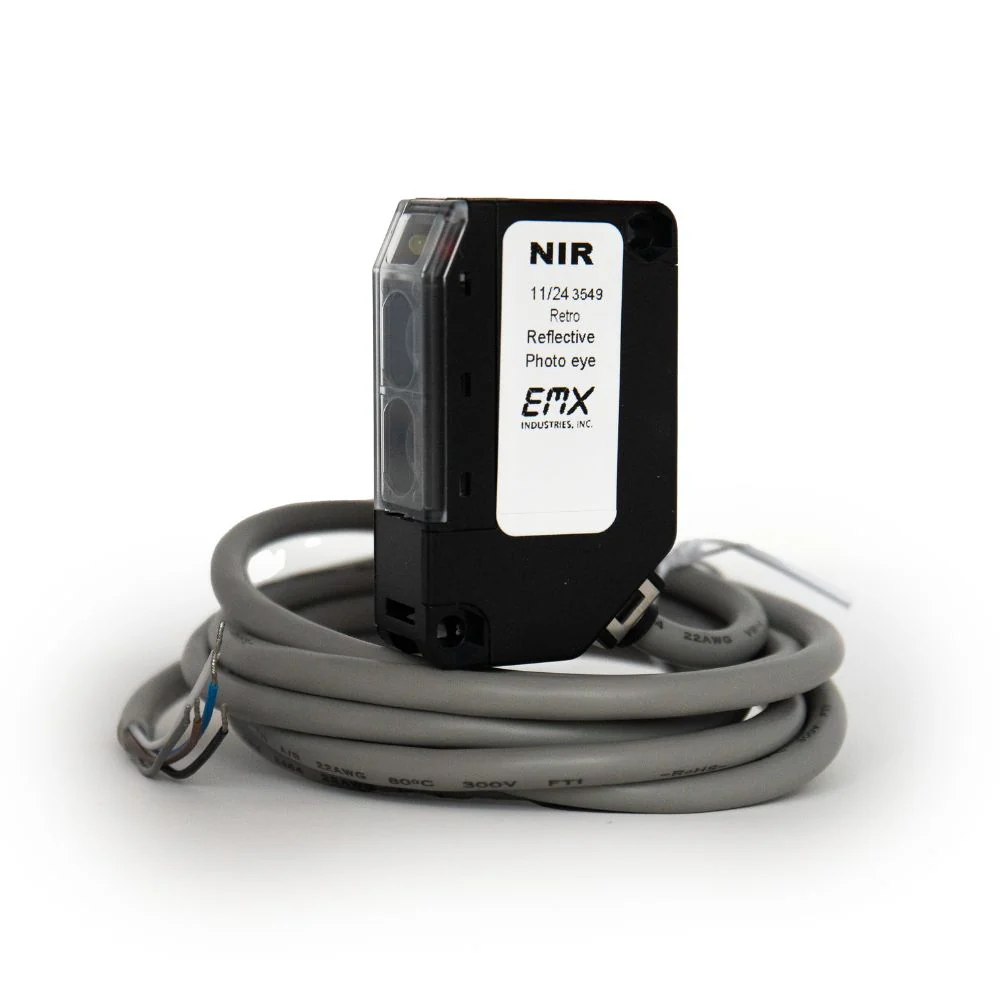

• Photoeye with hood
• Reflector with hood
• Mounting bracket

Features

• Retroreflective configuration
• 30 ft. operating range
• Sensitivity adjustment
• Wide range operating voltage
• Watertight package for reliable outdoor installation
• IP66 enclosure

Manufacturer's Warranty

• 2 Years

Technical Specification

• Operating Temperature: -20° C to +55°C (-4°F to +131°F)
• Operating Voltage: 12 – 240 Volts DC, 24 – 240 Volts AC
• Dimensions: H = 2.5”, D = 1.5”, W = 0.75”
• Lead Wire: 6 feet
• Response Time: 10 ms maximum
• Fail Safe Relay Output: 125V AC 0.6A, 110V DC 0.6A, 30V DC 2A.
• Environmental Protection: IP66 (IEC)
• Certifications: CE

Note

For gate or door operators that require a monitored safety device, see our UL325 photoeyes. The NIR is not UL-compliant.
