EMX Surface-Mount Loop with Wire Guard | EMX-SP-24

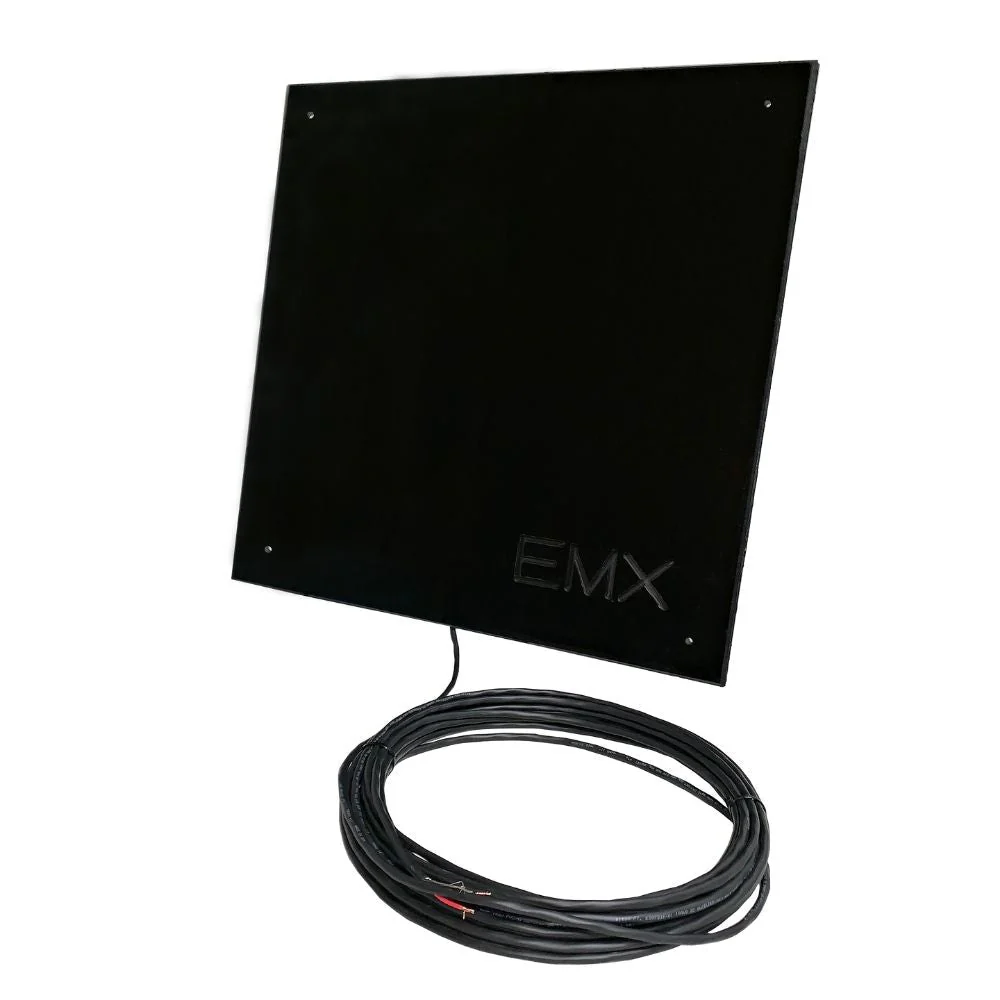

The SP-24 - also known as EMX-4024-1 is a sealed, surface-mounted loop pad uniquely designed for automated carwash systems. The durable polypropylene housing stands up to the detergents used in the carwash industry. Its proper location is between the guide rails where the product cannot be struck or driven over. The SP-24 detects up to 30 inches high when coupled with the EMX line of vehicle loop detectors.

Features

• Mount between the guide rails of a carwash system using the 4 mounting holes is provided.
• Run the lead wire back to the loop detector.
• Ensure the pad and lead wire are protected from tire impact.

Manufacturer's Warranty

• 2 years

Technical Specifications

• Pad Size: 23.75 in x 23.75 in x 1.0 in
• Connection: 2-conductor lead-in wire, 50 ft.
• Guard Size: 24 in x 3 in x 0.5 in
• Pad and Guard Material: Black polypropylene
• Detection Height: Up to 30 inches

Cautions and Warnings

This product is an accessory or part of a system. Install the SP-24 according to instructions
from the vehicle loop detector manufacturer. Comply with all applicable codes and safety regulations.

Moving the pad or moving metallic objects near the pad will cause the detector to output
a detected signal. Tires or other objects striking the SP-24 may cause it to detect and or cause damage to the pad.

Product Literature

• EMX-SP-24 with Wire Guard Spec Sheet
• EMX-SP-24 with Wire Guard Product Manual
