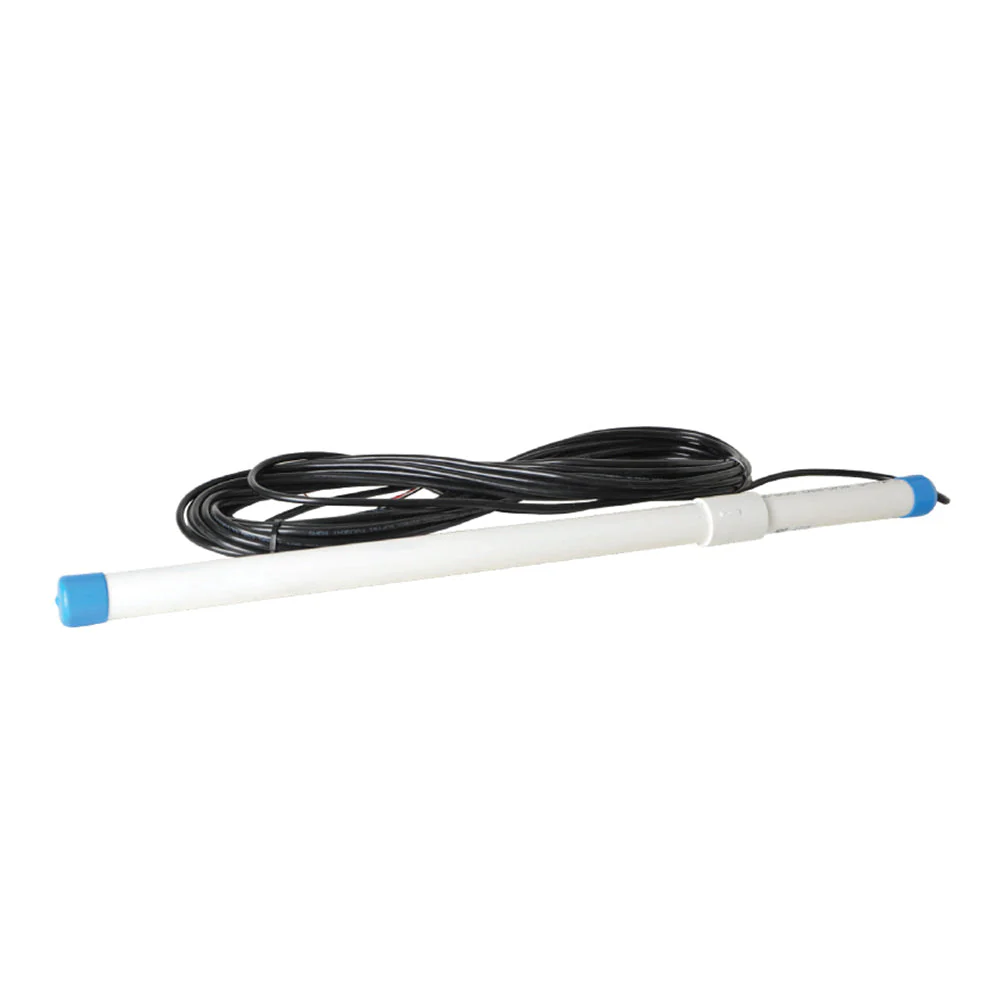

EMX Single Piece Free Exit Probe with 50' Lead Cable | EMX-VMD-202-5-50

The VMD202 vehicle motion detector senses moving ferrous metal within its magnetic field. It has a detection range of up to 12 feet at a minimum speed of 5 mph. An optional sensitivity remote finely tunes the VMD202 to fit any installation requirement and then easily detaches to prevent unwanted changes or tampering. The settings are stored in non-volatile memory, saving them in case of power failure. The VMD202 accepts a wide range of power inputs from 12-39 VDC or 12-27 VAC and features a low current consumption (70 uA standby / 25 mA activated) making it ideal for solar applications.

Includes

• 50 ft. Lead Cable

Features

• Probe assembly and cable are water-tight and direct burial compatible
• Settings are placed in a non-volatile memory in case of a power failure
• Accepts a wide range of power inputs from 12-39 VDC or 12-27 VAC
• Low current consumption of 70 uA standby and 25 mA activated

Manufacturer's Warranty

• 2 Years

Technical Specifications

• Power: 12-39 VDC or 12-27 VAC
• Current: 70 uA standby / 25 mA activated
• Relay: Form C (SPDT) 1A@24 VDC; 1A@120 VAC
• Operating Temperature: -30o C to 70o C (-22o to 158o F) 0 to 95% relative humidity
• Material: ABS plastic for VMD202-R, PVC for probe
• Dimensions: VMD202-R (3.0 x 0.9 x 2.75 in) Probe (1 x 24 in)
• Probe Cable: 5-wire direct burial PVC

Cautions and Warnings

• The VMD202 is designed to detect moving vehicles. It is not suitable for use as a vehicle presence detector, such as a reversing loop for a gate or door.
• The VMD202 detects ferrous metals. It will not detect aluminum, but will detect any moving ferrous metallic object.
• The probe must be stationary to function properly.

Product Literature

• EMX VMD 202-5-50 Spec Sheet
• EMX VMD 202-5-50 Plug-In Harness Instruction Manual
• EMX VMD- 202-5-50 Terminal Block Installation
• EMX VMD-202-5-50 Harness Removal Guide
