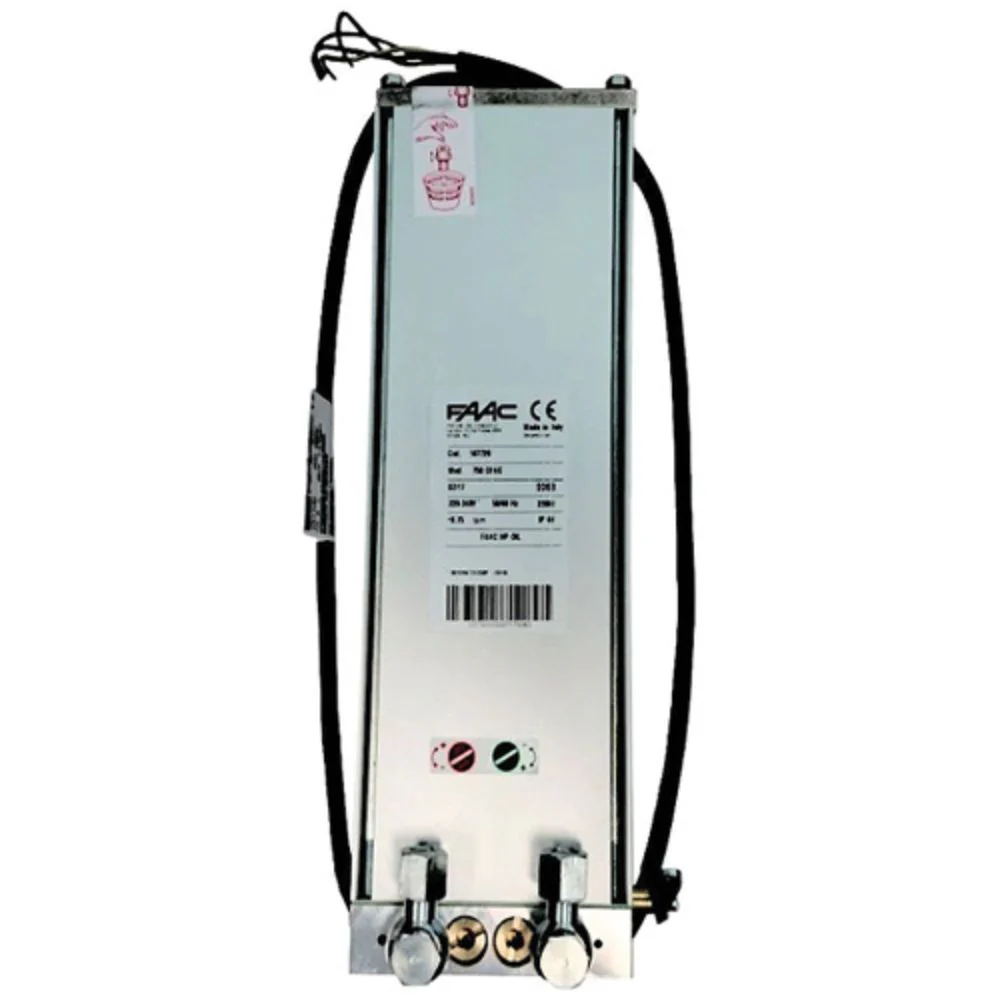

FAAC 750 CBAC Pump Motor Assembly Only

This is the pump motor assembly for the FAAC 750 In-ground Hydraulic Operator. Choose between 115V or 220V.

Manufacturer's Warranty Period

• 1 year

Technical Specifications

• Input voltage: 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
• Power: 220 W
• Current: 2A (120V) - 1 A (230V)
• Motor: Asynchronous single-phase
• Pump flow rate: 0.75 l/min
• Operating ambient temperature: -4°F - 131°F (-20 °C to +55 °C)
• Protection class: IP 55
• Thermal protection on motor winding: 248 °F (120 °C)
• Use Frequency (cycles per hour): 45
• Weight: 16.5 lb (7.5 kg)
• Dimensions: (L x D x H) in mm: 9.6 x 13.9 x 5.5 in (245x353x141mm)

Product Literature

• FAAC 750 Hydraulic Swing Gate Operator Manual
• FAAC Warranty Policy
