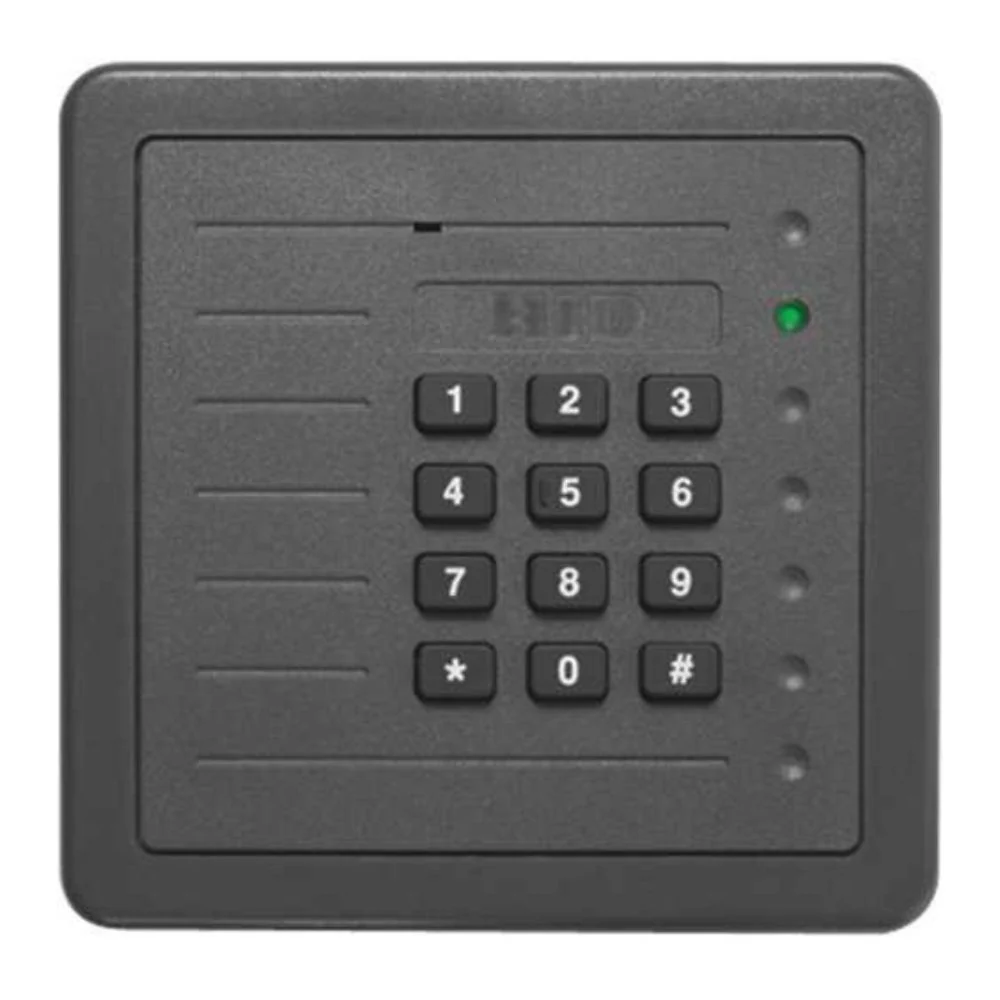

HID ProxPro with Wiegand Output (Keypad and Terminal Strip, Charcoal Gray) | HID-5355AGK00

125 kHz versatile proximity card reader.

Features

• Ideal for medium-range applications.
• Sealed for indoor or outdoor use.
• Optional glass mount kit available for mounting the reader behind glass
• Keypad data and card data can be sent on the same cable, or on a separate cable using a 2 of 7 or 3 x 4 matrix.
• Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
• Multicolor LED, internal or host control of the LED, and/or beeper and a beeper "off" switch for silent operation.
• Offers an optional, fully integrated personal identification number keypad for heightened security.
• Lifetime Warranty

Technical Specifications

• Dimensions: 5.0˝ x 5.0˝ x 1.0˝ (12.5 cm x 12.5 cm x 2.5 cm)
• Weight: 9.62 oz (273 g)
• Readf Range: Up to 8.0˝ (20.5 cm)
• Mounting: Single-gang electrical box
• Power Supply: 10-28.5 VDC
• Current Requirements: 155 mA
• Termination: Terminal Strip
• Output Formats: Wiegand, Clock-and-Data, RS-232 or RS-422
• Indoor/Outdoor: Both
