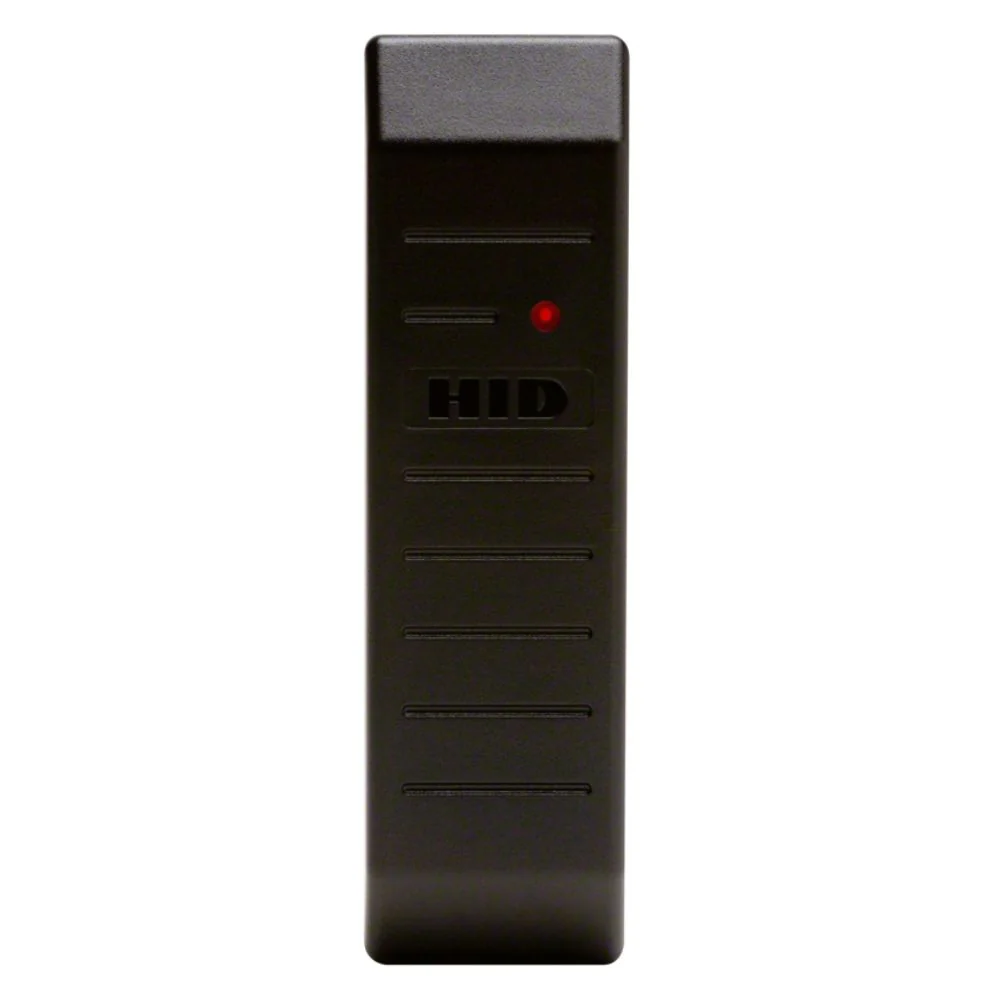

HID MiniProx Proximity Reader (Wiegand output, Black 18 In. Pigtail) | HID-5365EKP00

125 kHz mullion mount proximity card reader.

Features

• Accepts 5- to 16-volts, meeting most voltage requirements.
• Available with Wiegand or Clock-and-data interface.
• Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required.
• Offers high reliability, consistent read range, and low power consumption in an easy-to-install package.
• Mounts directly onto metal with no change in read range performance.
• Provides multicolor LED, compatibility with all standard access control systems, and internal or host control of LED and beeper.
• Lifetime Warranty

Technical Specifications

• Dimensions: 6.0˝ x 1.7˝ 7.89 oz (224 g)
• Weight: 9.62 oz (273 g)
• Read Range: Up to 5.5˝ (14.0 cm)
• Mounting: Mullion
• Power Supply: 5-16 VDC
• Current Requirements: 35 mA
• Termination: Pigtail or Terminal Strip
• Output Formats: Wiegand, Clock-and-Data, RS-232 or RS-422
• Indoor/Outdoor: Both
