HySecurity SlideDriver 15-M UPS | HYS-SlideDriver15-M-UPS

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

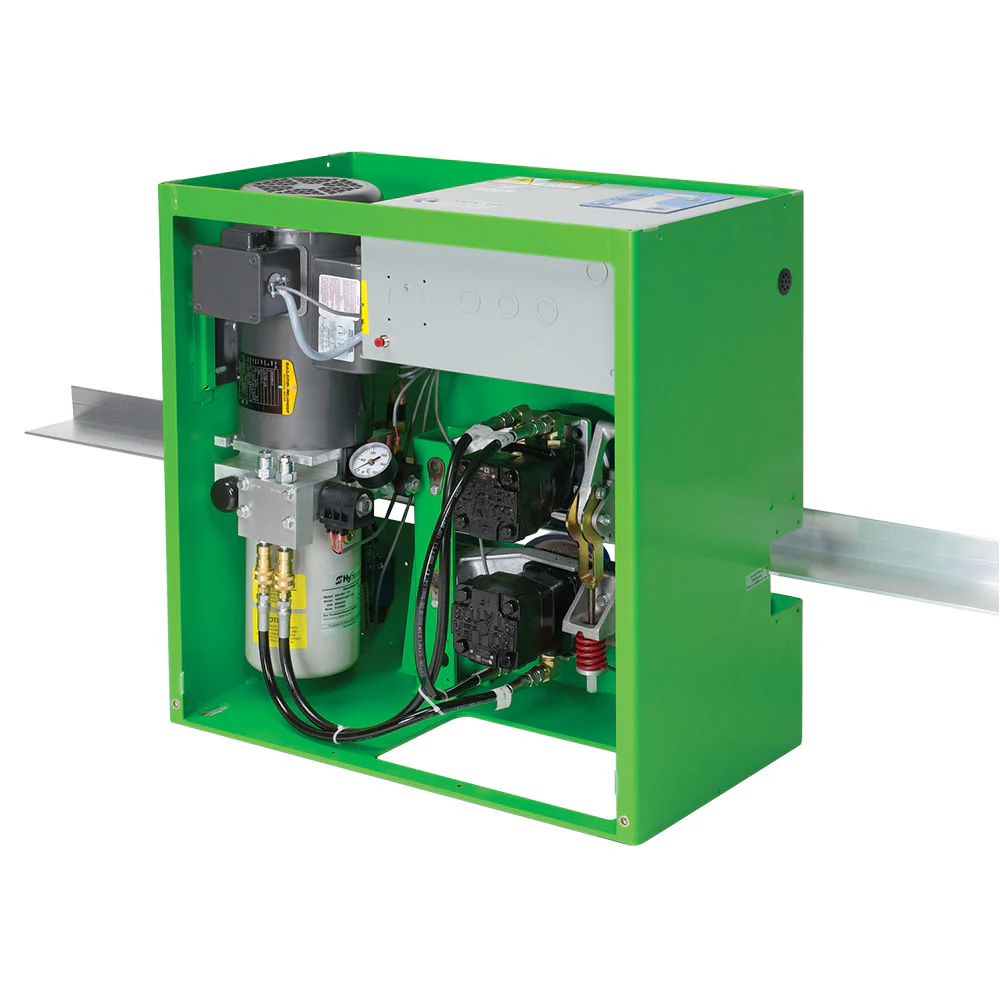

This model locates the motor, hydraulic pump, and electric controls in a remote enclosure to accommodate unique mounting, high security or sites requiring quiet operation. The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of gate travel after AC power loss.* Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. UPS model uses 2 hp 24VDC motor.

Note: Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz.  If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features

• Move the longest, heaviest gates up to 20,000 lb
• DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries

Operator Components

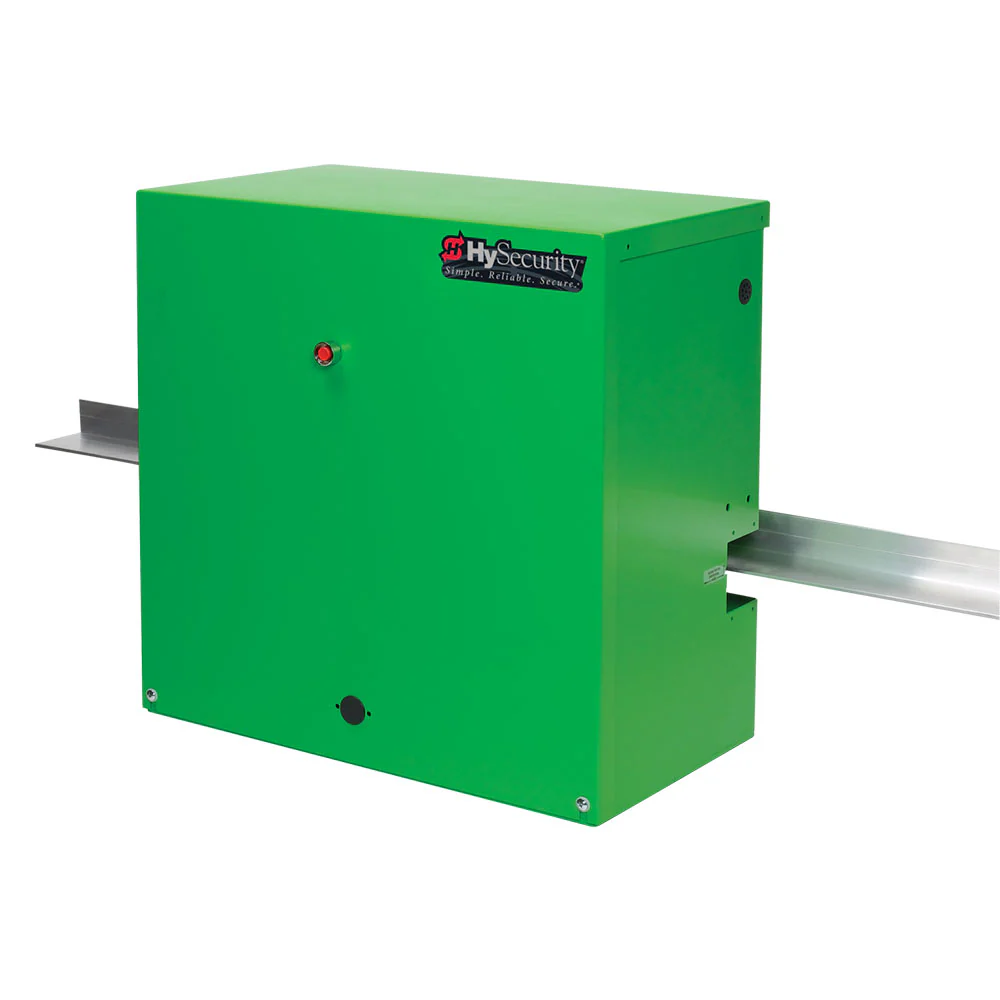

Model: SlideDriver 15-M UPS Drive Unit

• Part Number: 333 DS
• Est. Ship Weight: 200 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

Model: SlideDriver 15-M UPS Power Unit

• Part Number: 333 DS ST
• Est. Ship Weight: 261 lb
• Shipping Dimensions: 40"w x 40"d x 50"h
• Shipping Class: 70

Model: DC Power Supply 60

• Part Number: DCPS-60
• Est. Ship Weight: 335 lb
• Shipping Dimensions: 39"w x 28"d x 39"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
• DC Power Supply Installation Instructions
