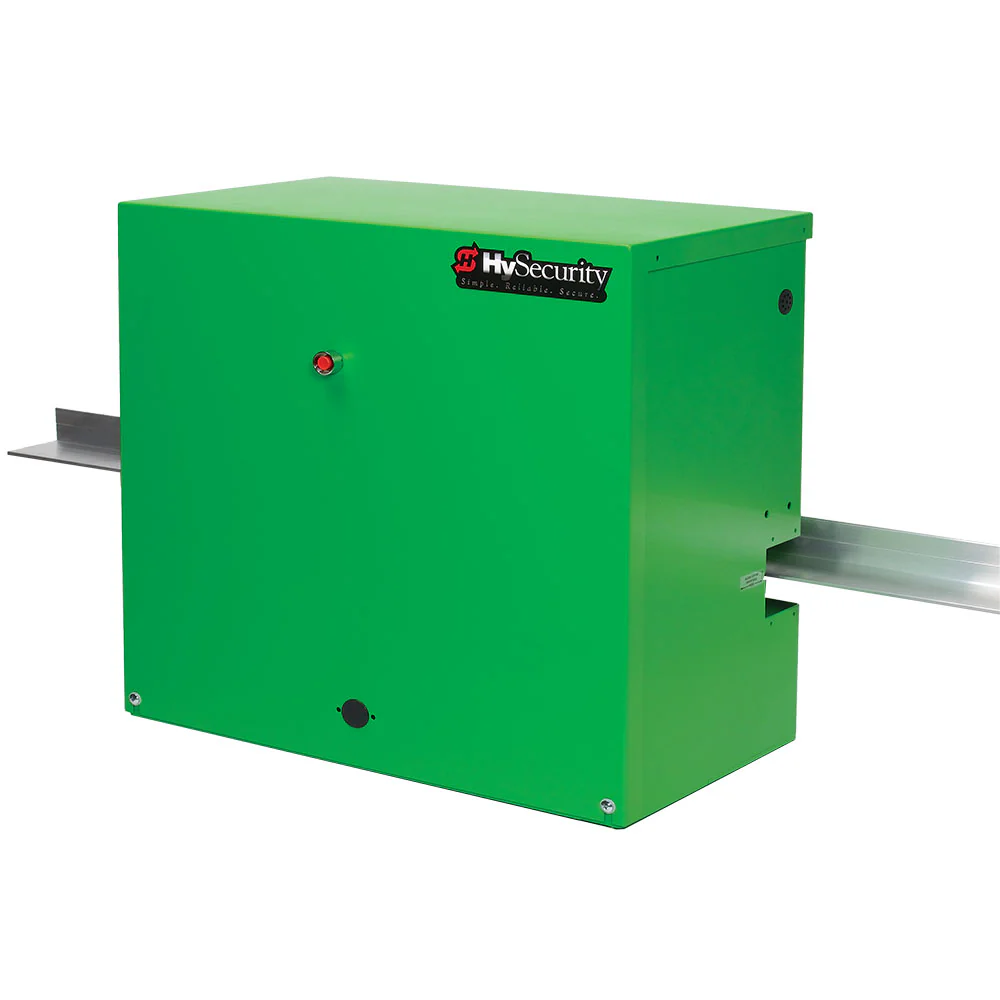

HySecurity SlideDriver 200 | HYS-444-XS-ST

Note: This product has been discontinued and is no longer available.
It has been replaced by the new SlideDriver II SD200V, offering improved performance and updated features.

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades-long life and low maintenance.

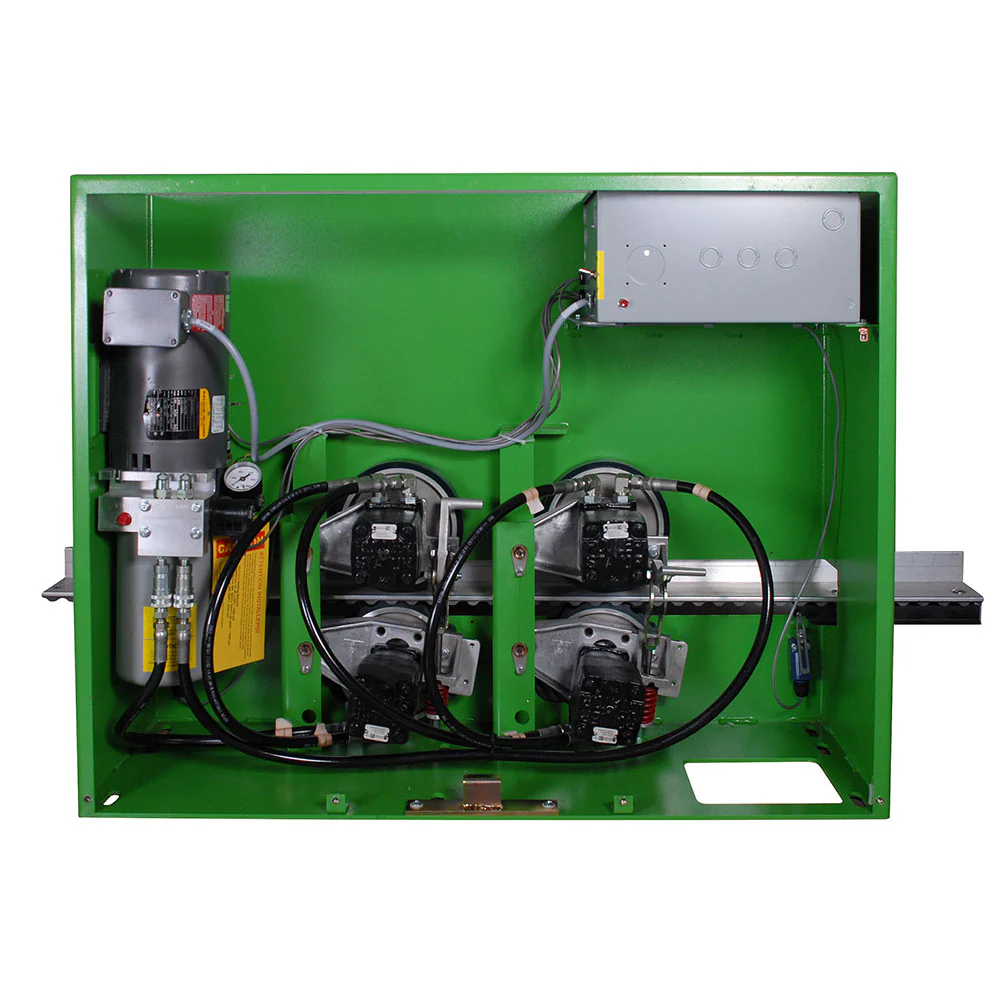

Cycle the heaviest, longest gates, up to 20,000 lb at 1 ft/s (9,072 kg / 30 cm/s). The SlideDriver 200 is equipped with two AdvanceDrive™ wheels that run on the top of the drive rail and two XtremeDrive™ wheels which engage a rack on the underside of the drive rail. This increases the pull force for the longest, heaviest industrial and high security gates.

Note: XtremeDrive™ System requires HySecurity XtremeDrive™ rack and a drive rail. Price includes 52 ft (16 m) of rack, but no drive rail. To ensure compatibility, we recommend HySecurity’s grooved (flangeless) drive rail or a steel/aluminum angle iron be used at the site. If mounting XtremeDrive to a flanged drive rail, the clearance between the flanges must be a minimum of 2 inches (5 cm).

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Operator Components

Model: SlideDriver 200

• Part Number: 444 XS ST
• Est. Ship Weight: 418 lb
• Shipping Dimensions: 40"w x 32"d x 38"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
