HySecurity SlideDriver 30F-M UPS | HYS-SlideDriver30F-M-UPS
HySecurity SlideDriver 30F-M UPS | HYS-SlideDriver30F-M-UPS

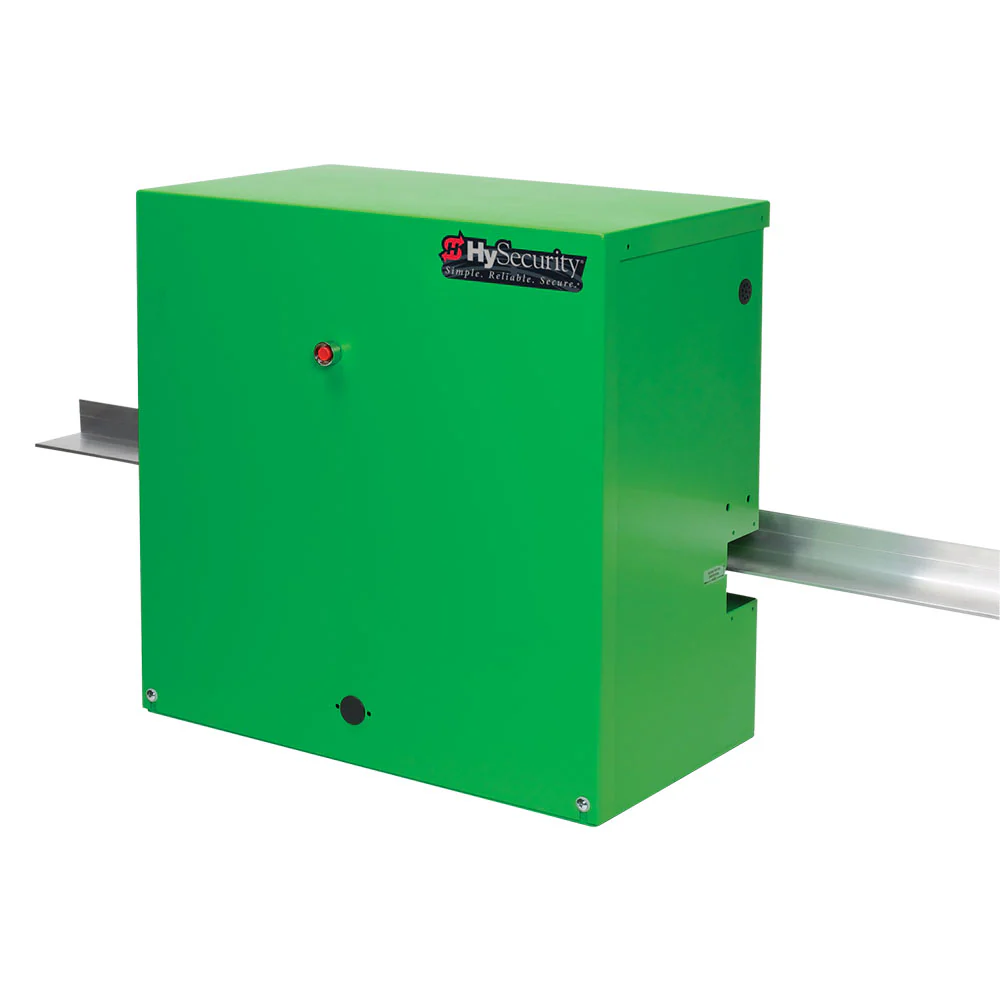

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.
This model locates the electrical controls and most moving parts remotely to accommodate unique mounting, high security, environmental concerns or sites requiring quiet operation. The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of UPS backed-up gate travel after AC power loss.* Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible.
Note: Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Features
- Move the longest, heaviest gates up to 20,000 lb
- DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.

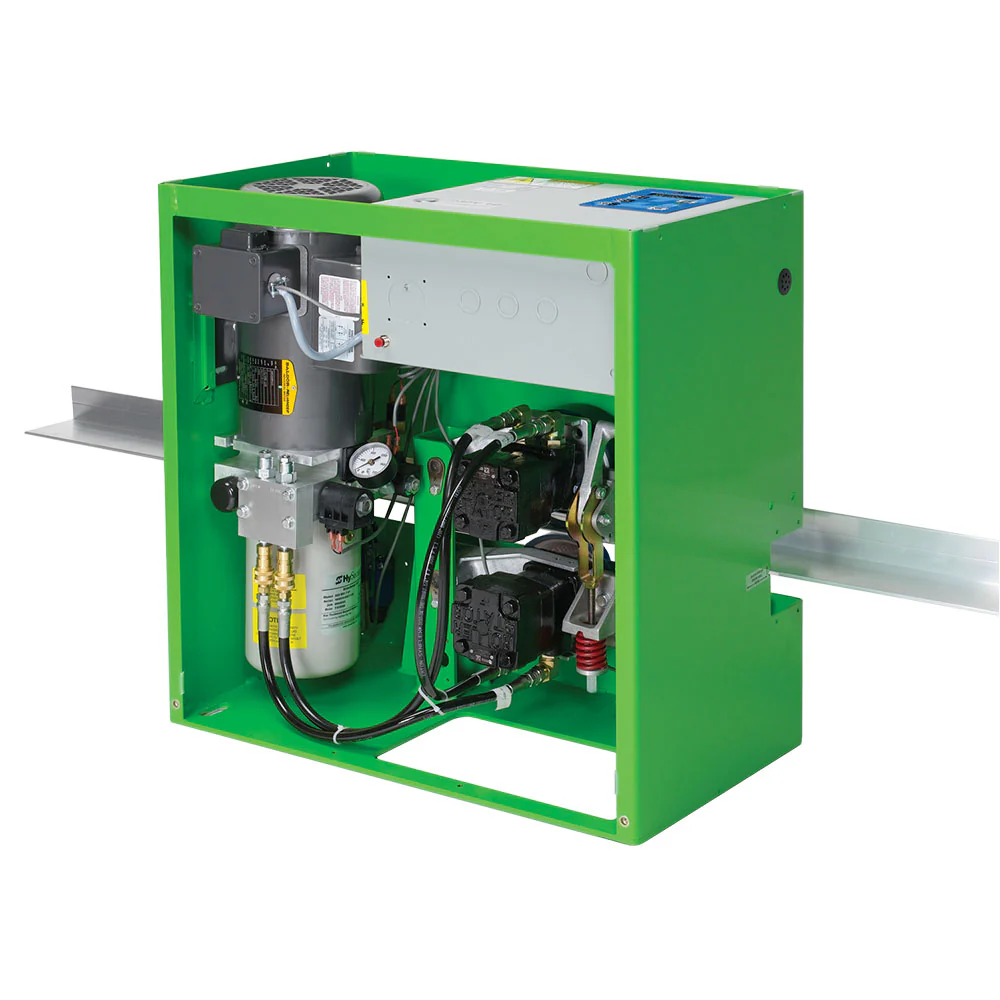

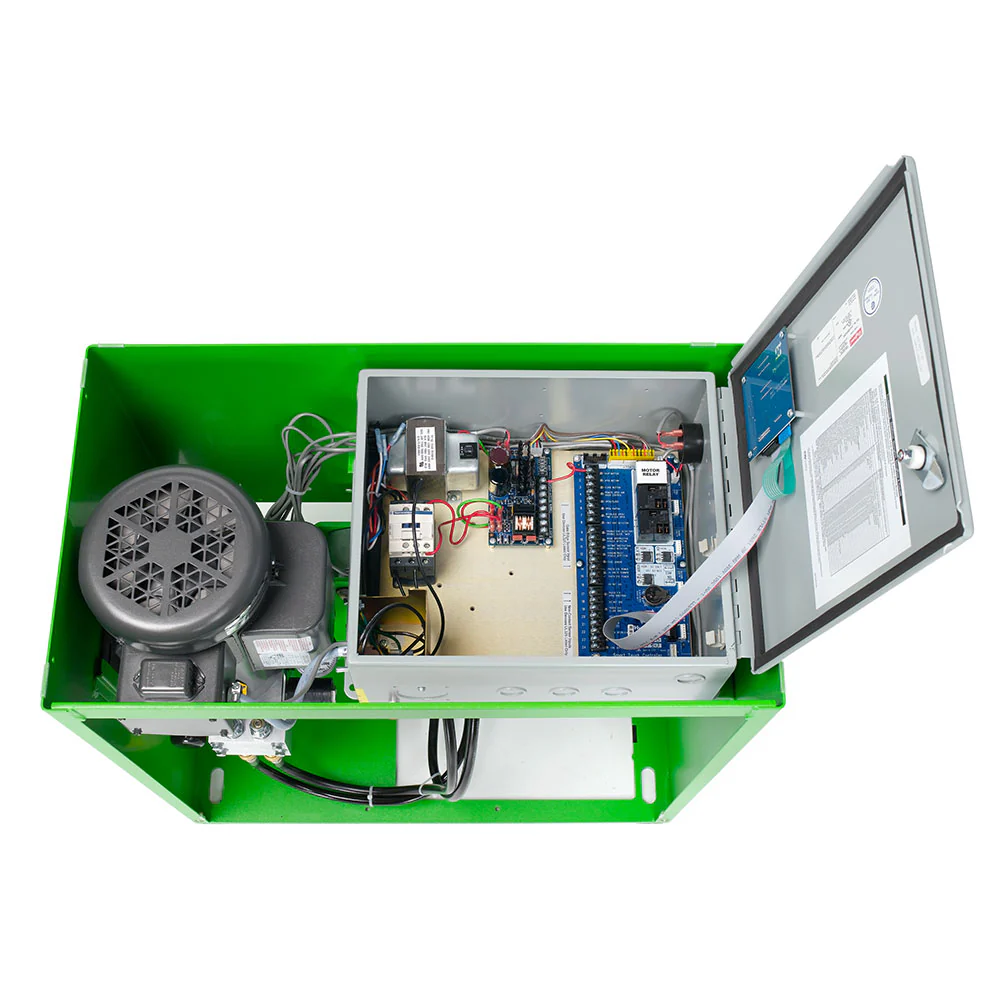

- Modular Model (-M): Modular models locate the motor, hydraulic pump, and electrical controls in a separate remote enclosure to accommodate unique mounting, high security or sites requiring a very quiet operator.
Operator Components
Model: SlideDriver 30F-M UPS Drive Unit
- Part Number: 333 DX 1.7
- Est. Ship Weight: 200 lb
- Shipping Dimensions: 26"w x 30"d x 35"h
- Shipping Class: 70
Model: SlideDriver 30F-M UPS Power Unit
- Part Number: 333 DX ST
- Est. Ship Weight: 261 lb
- Shipping Dimensions: 40"w x 40"d x 50"h
- Shipping Class: 70
Model: DC Power Supply 120
- Part Number: DCPS-120
- Est. Ship Weight: 335 lb
- Shipping Dimensions: 39"w x 28"d x 39"h
- Shipping Class: 70
Product Literature
Original: $25,068.99
-70%$25,068.99
$7,520.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HySecurity SlideDriver 30F-M UPS | HYS-SlideDriver30F-M-UPS
SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.
This model locates the electrical controls and most moving parts remotely to accommodate unique mounting, high security, environmental concerns or sites requiring quiet operation. The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of UPS backed-up gate travel after AC power loss.* Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible.
Note: Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Features
- Move the longest, heaviest gates up to 20,000 lb
- DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.
- Modular Model (-M): Modular models locate the motor, hydraulic pump, and electrical controls in a separate remote enclosure to accommodate unique mounting, high security or sites requiring a very quiet operator.
Operator Components
Model: SlideDriver 30F-M UPS Drive Unit
- Part Number: 333 DX 1.7
- Est. Ship Weight: 200 lb
- Shipping Dimensions: 26"w x 30"d x 35"h
- Shipping Class: 70
Model: SlideDriver 30F-M UPS Power Unit
- Part Number: 333 DX ST
- Est. Ship Weight: 261 lb
- Shipping Dimensions: 40"w x 40"d x 50"h
- Shipping Class: 70
Model: DC Power Supply 120
- Part Number: DCPS-120
- Est. Ship Weight: 335 lb
- Shipping Dimensions: 39"w x 28"d x 39"h
- Shipping Class: 70
