HySecurity SlideDriver 50VF2/3 | HYS-222-X3-ST

Note: This product has been discontinued and is no longer available.
It has been replaced by the new SlideDriver II SD40, offering improved performance and updated features.

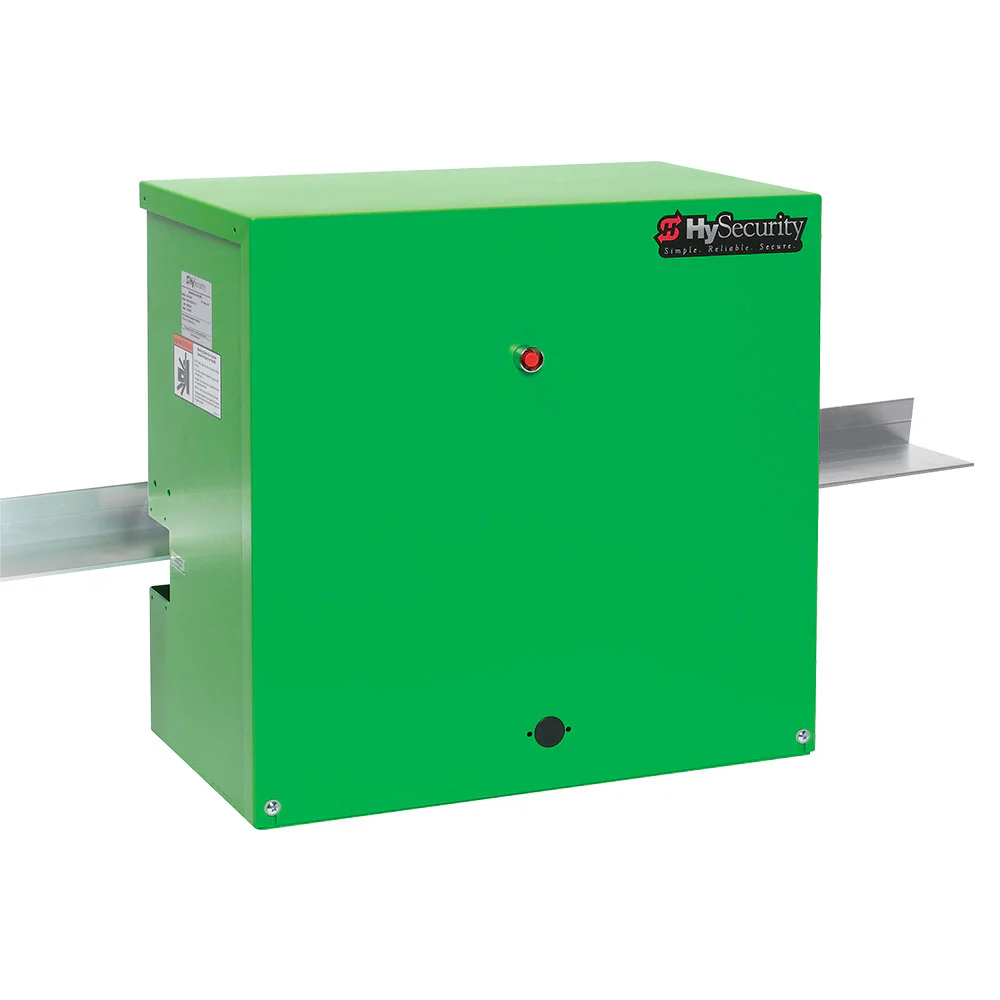

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous-duty operator is renowned for decades-long life and low maintenance.

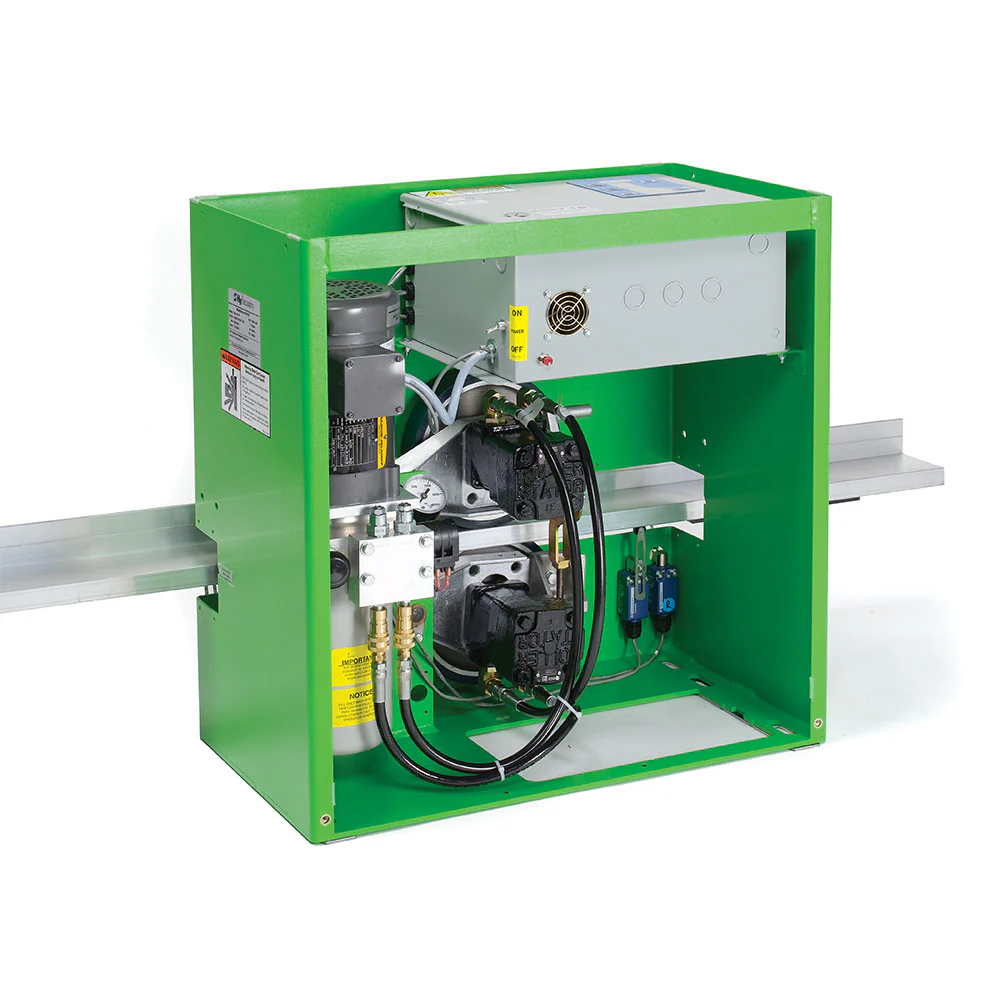

Cycle up to 5,000 lbs. gate of any length at 2.2 or 3 ft/s (2,268 kg / 70 or 91 cm/s). Move a heavy gate SMOOTHLY and FAST. These operators close gates to a precise point and are extremely easy on gate hardware. SlideDriver VF operators use a variable frequency drive, 8-inch wheels - both wheels driven, and a high flow rate pump to move gates weighing up to 5,000 lb at high speed. Field-adjustable Open/Close speeds are 2.2 or 3 ft/s. Emergency Fast Operate at 3 ft/s. Listed and restricted to UL 325 usage class III, IV due to high speed.

Note: HySecurity offers an optional AC Power Supply w/HyInverter AC™ which provides UPS battery backup for 208/230VAC, single-phase AC gate operators. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Operator Components

Model: SlideDriver 50VF2/3

• Part Number: 222 X3 ST
• Est. Ship Weight: 244 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
• AC Power Supply with HyInverter AC Installation Reference Manual
