HySecurity SlideDriver 50VF2/3-C | HYS-SlideDriver50VF2/3-C

Note: This product has been discontinued and is no longer available.
It has been replaced by the new SlideDriver II SD40, offering improved performance and updated features.

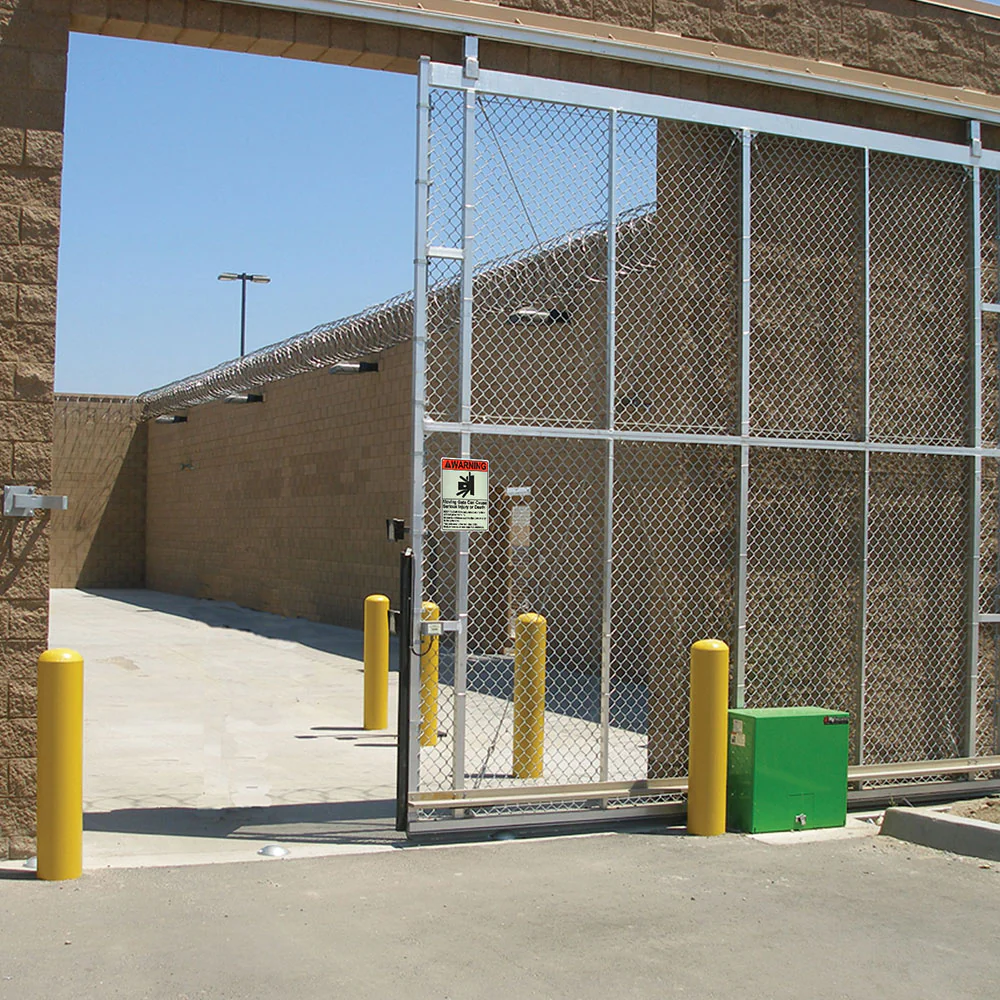

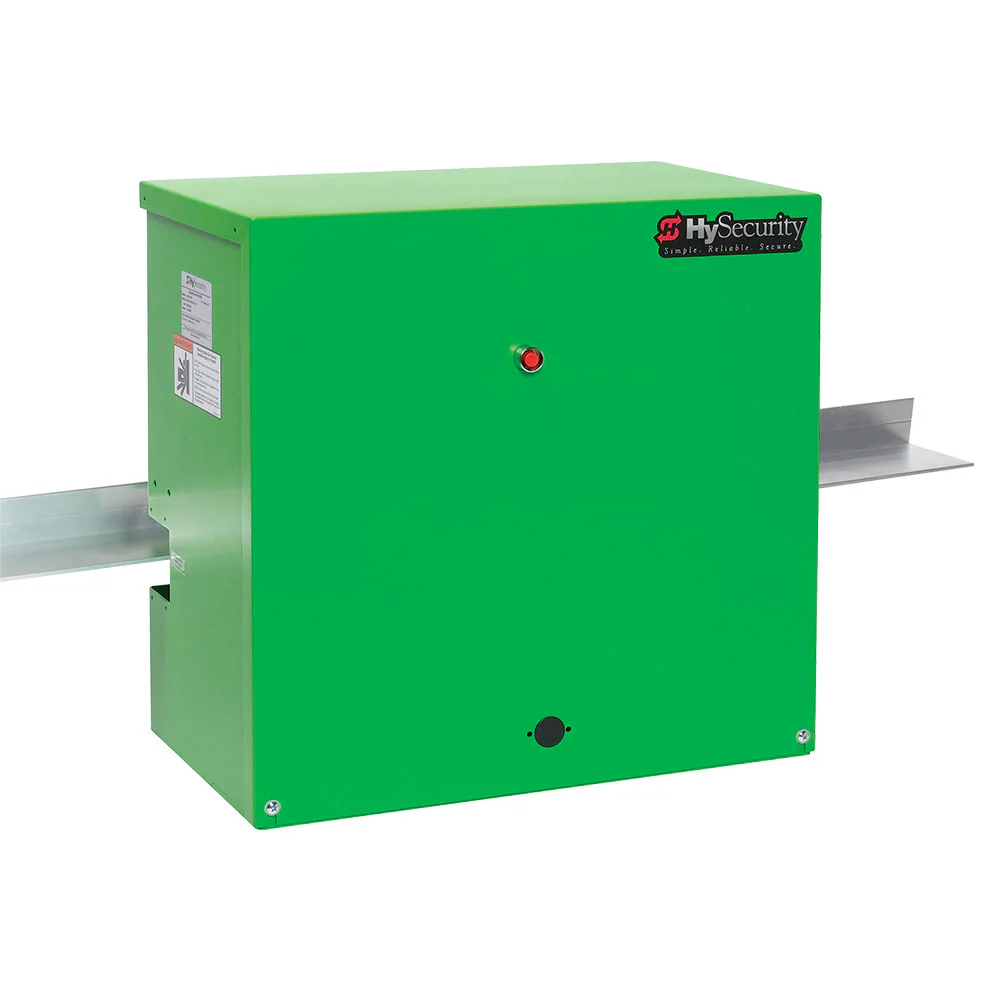

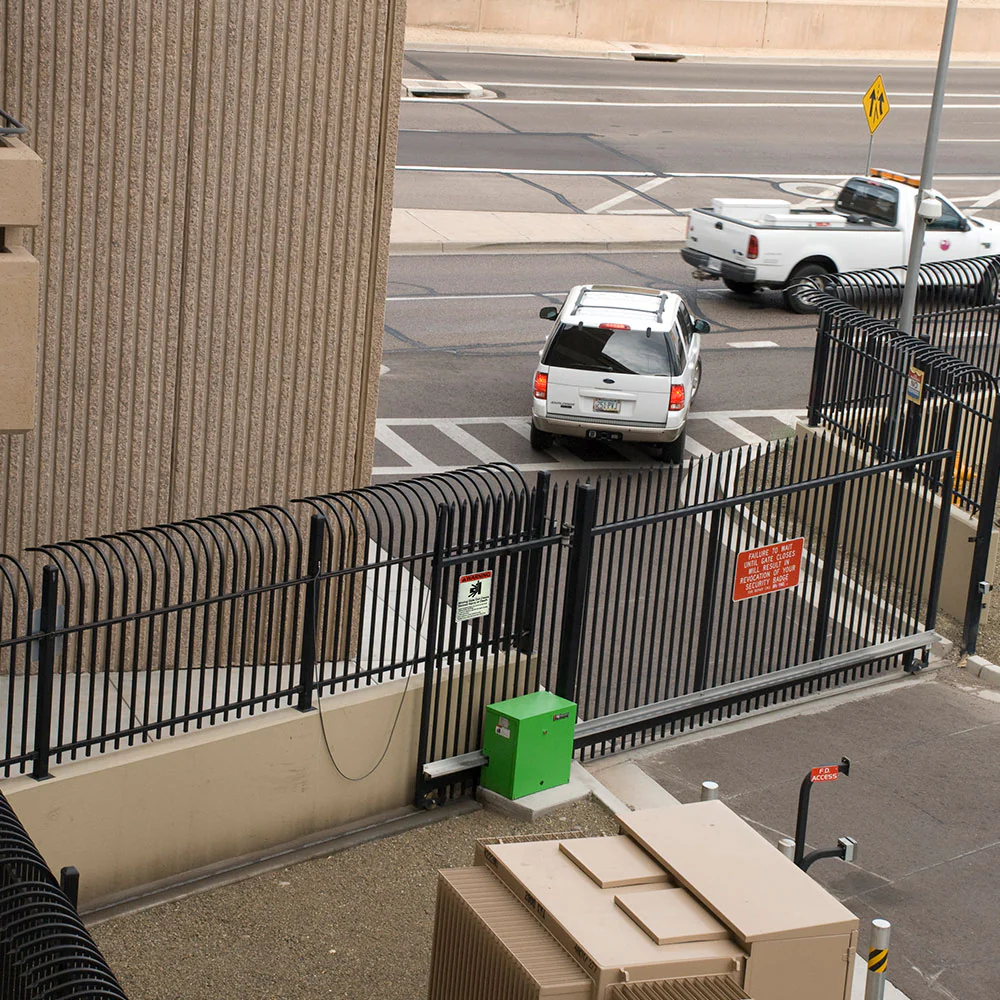

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous-duty operator is renowned for decades-long life and low maintenance.

HySecurity correctional facility gate operators come standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities. Plus multiple relays, three high security lock options, and an extra heavy 10-gauge steel cover for added protection.

Listed and restricted to UL 325 usage class III, IV due to high speed.

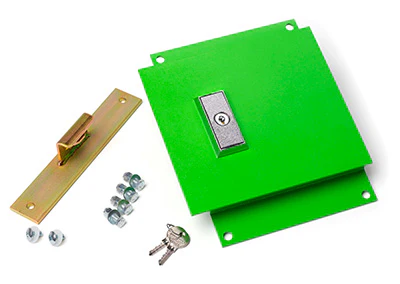

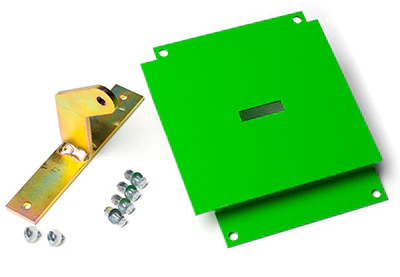

Note: See our product options for high-security lock options. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

HySecurity offers an optional AC Power Supply w/HyInverter AC™ which provides UPS battery backup for 208/230VAC, single-phase AC gate operators.

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features

• Move the longest, heaviest gates up to 20,000 lbs
• Correctional Facility Model (-C): The correctional facilities model comes standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities.

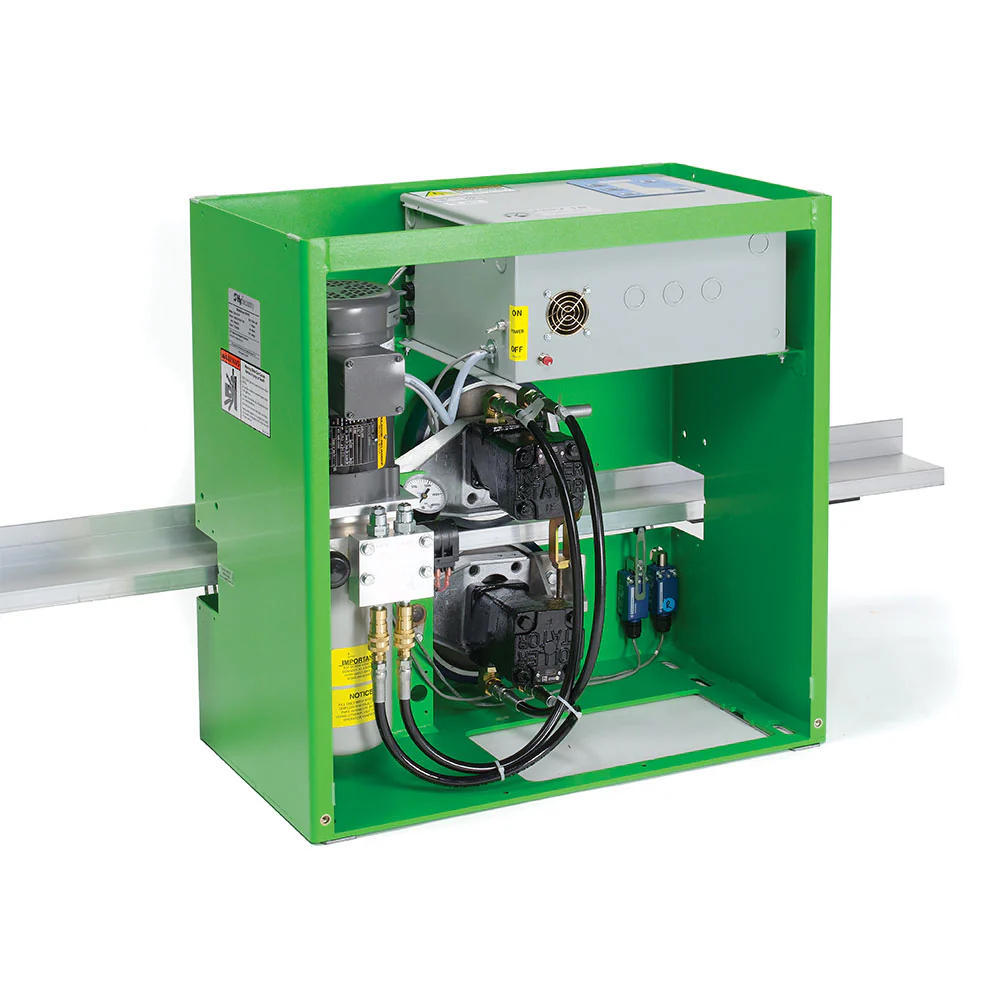

Operator Components

Model : SlideDriver 50VF2/3-C

• Part Number: 222 CX3 ST
• Est. Ship Weight: 275 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
• AC Power Supply with HyInverter AC Installation Reference Manual
