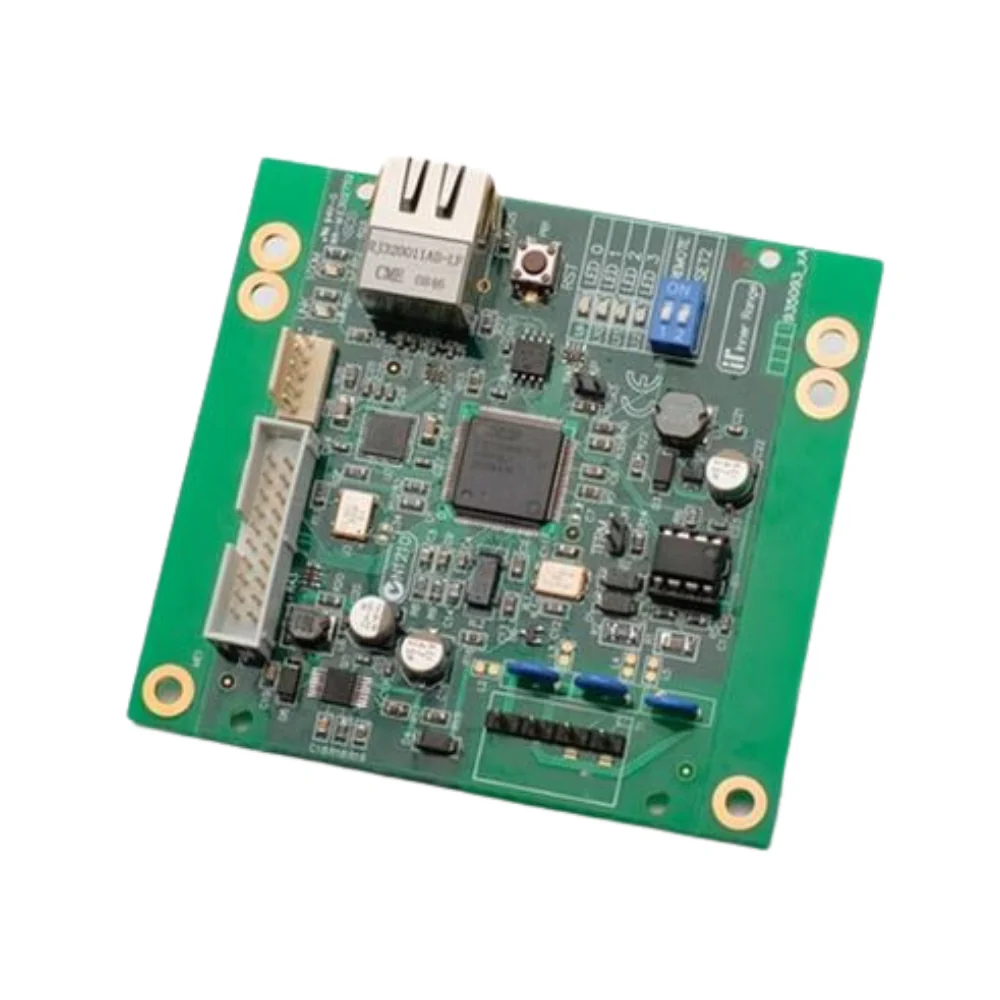

Inner Range 995093 LAN Over Ethernet Module (CLOE)

The LAN over Ethernet (CLOE) module provides a convenient interface for the Inner Range RS-485 LAN to be distributed over standard TCP/IP Ethernet networks.

Ethernet connectivity allows the RS-485 LAN to operate over an IP network architecture, including 802.3i (10baseT) and 802.3U (100baseT) switching and routing equipment. Wireless communications can also be achieved using a wireless router and Ethernet / 802.11 point-to-point RF solutions.

The CLOE Module provides the full flexibility of Ethernet networks while maintaining the high security and scale of the standard RS-485 LAN architecture.

The CLOE module supports the TCP/IP protocol with all data encrypted using 128-bit AES encryption. Security is monitored in all RS-485 segments of the LAN, providing alarms for network outages or module substitution conditions.

Every CLOE module can be assigned as a master or a slave via initial setup options, and the master unit is configured with a static IP address while the slave units support static or dynamic addressing. The use of Ethernet networks also provides the added benefit of electrical isolation between RS-485 LAN segments.

Includes

• 4 x M3 x 10mm Pan head screws.
• 2 x 2 Way Plug on Screw Terminals
• 4 x M3 PCB Mounting Clip
• 1 x 0.1” Jumper Link

Note: No Ethernet cables are supplied. Standard Ethernet cabling and connections are used.
