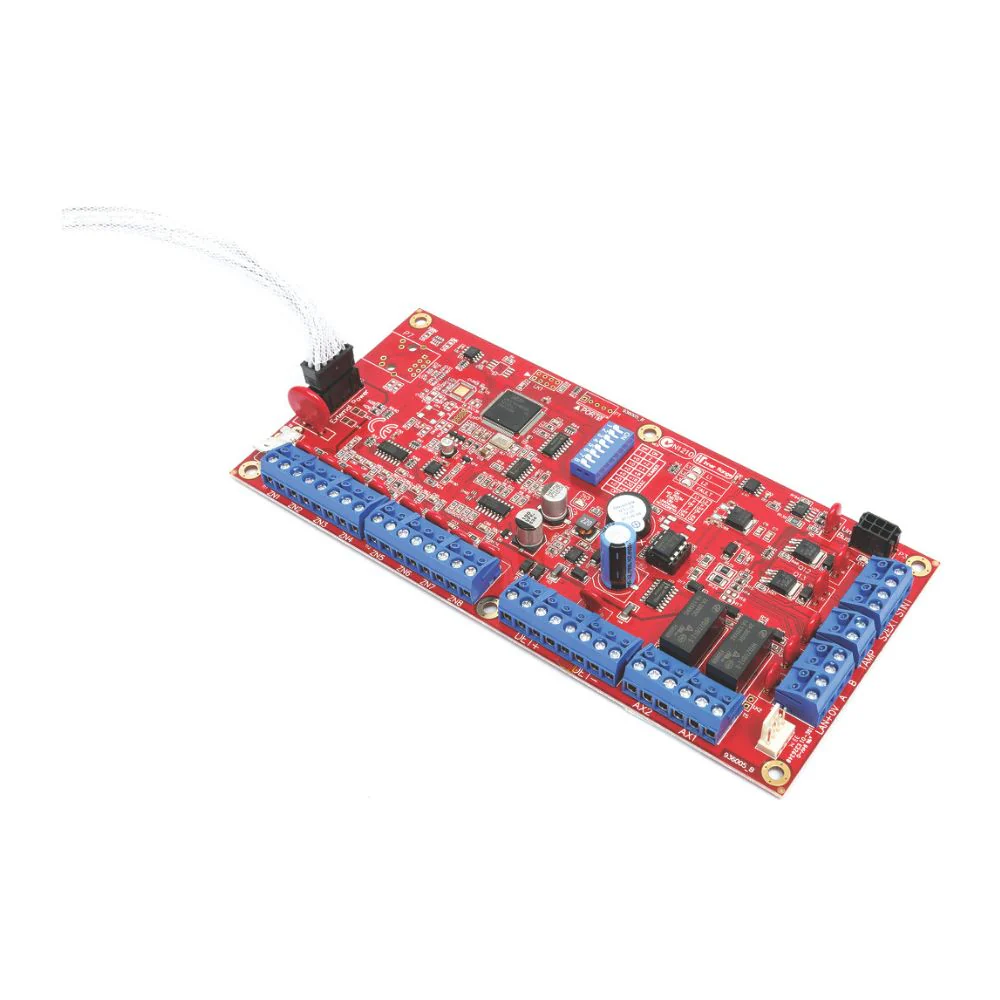

Inner Range 996005PCB&K Integriti 8 Zone LAN Expander
Inner Range 996005PCB&K Integriti 8 Zone LAN Expander
The 8 Zone LAN Expander Module connects to Inner Range controllers via RS-485 LAN and provides an additional 8 Zone Inputs, 2 Auxiliary Outputs, and 2 Siren drivers. Up to 99 Zone Expander Modules can be connected to the RS-485 LAN or via IP LAN if connected using the Ethernet Bridge or CLOE devices.**
This module also offers a UniBus in-cabinet expansion interface, allowing further expansion of Zone Inputs and Auxiliary Outputs using plug-on UniBus expansion devices fitted within the same tamper-protected enclosure. Up to 32 Zone Inputs or 32 Auxiliary Outputs can be connected to the Module (32 Zones and 26 Auxiliaries or 24 Zones and 32 Auxiliaries at the same time).
The power supply requirement is 11 to 14V DC, and a range of Inner Range 2Amp, 3Amp, or 8Amp switch-mode power supplies are available. Inner Range external power supplies are fully monitored via the 8 Zone Expander Module.
** Where it is necessary to connect large numbers of Zone Expanders to the RS-485 LAN, the use of LAN Isolators or other LAN retransmission devices such as Fibre Modems, Ethernet Bridge, or CLOE modules is recommended.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Inner Range 996005PCB&K Integriti 8 Zone LAN Expander
The 8 Zone LAN Expander Module connects to Inner Range controllers via RS-485 LAN and provides an additional 8 Zone Inputs, 2 Auxiliary Outputs, and 2 Siren drivers. Up to 99 Zone Expander Modules can be connected to the RS-485 LAN or via IP LAN if connected using the Ethernet Bridge or CLOE devices.**
This module also offers a UniBus in-cabinet expansion interface, allowing further expansion of Zone Inputs and Auxiliary Outputs using plug-on UniBus expansion devices fitted within the same tamper-protected enclosure. Up to 32 Zone Inputs or 32 Auxiliary Outputs can be connected to the Module (32 Zones and 26 Auxiliaries or 24 Zones and 32 Auxiliaries at the same time).
The power supply requirement is 11 to 14V DC, and a range of Inner Range 2Amp, 3Amp, or 8Amp switch-mode power supplies are available. Inner Range external power supplies are fully monitored via the 8 Zone Expander Module.
** Where it is necessary to connect large numbers of Zone Expanders to the RS-485 LAN, the use of LAN Isolators or other LAN retransmission devices such as Fibre Modems, Ethernet Bridge, or CLOE modules is recommended.
