Jonard Tools Pulley Set for Low Voltage Electrical / Network and COAX Cables (2 pack) | JON-CP-475

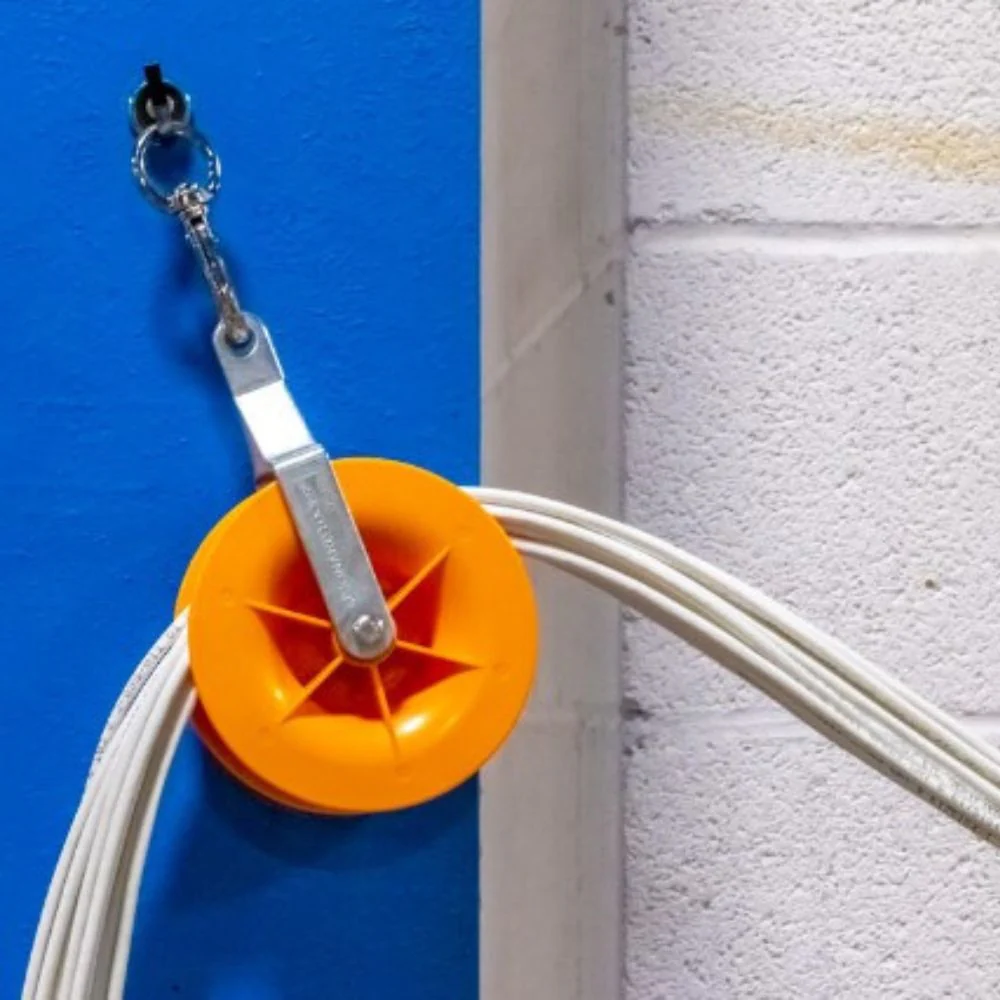

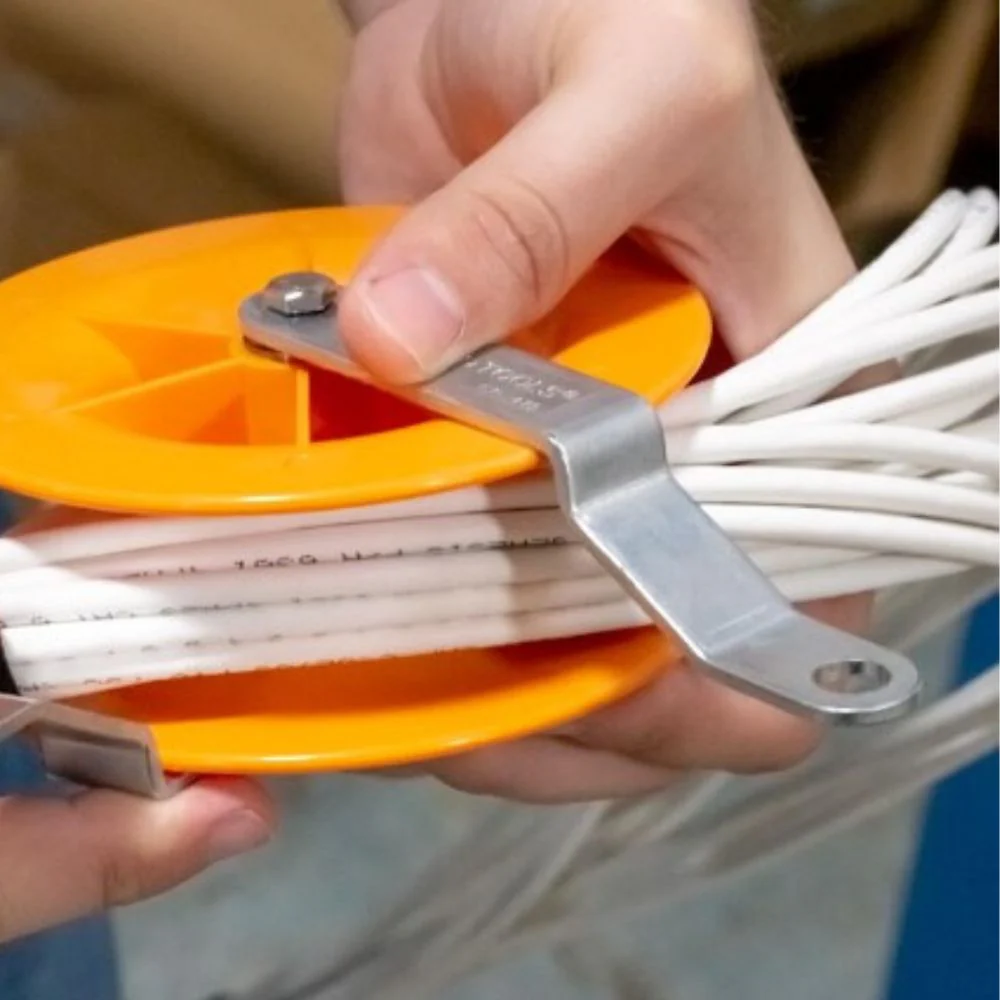

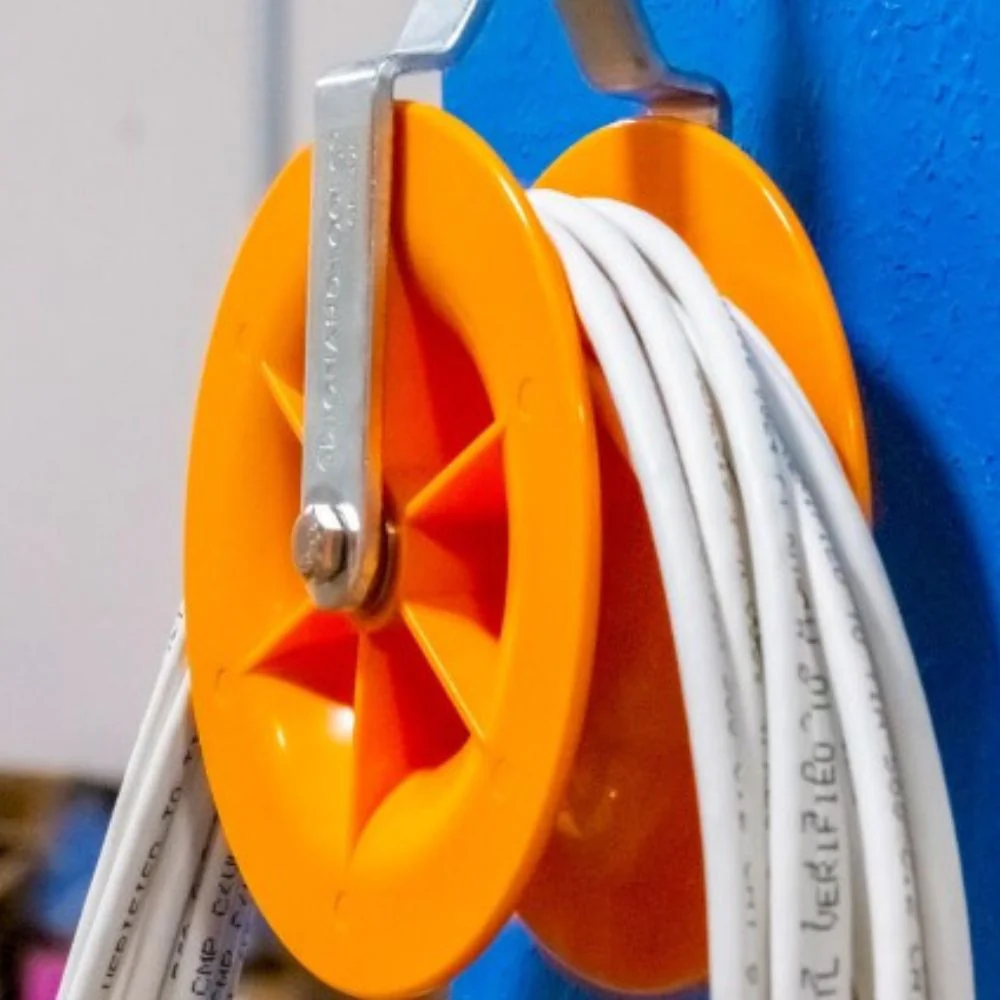

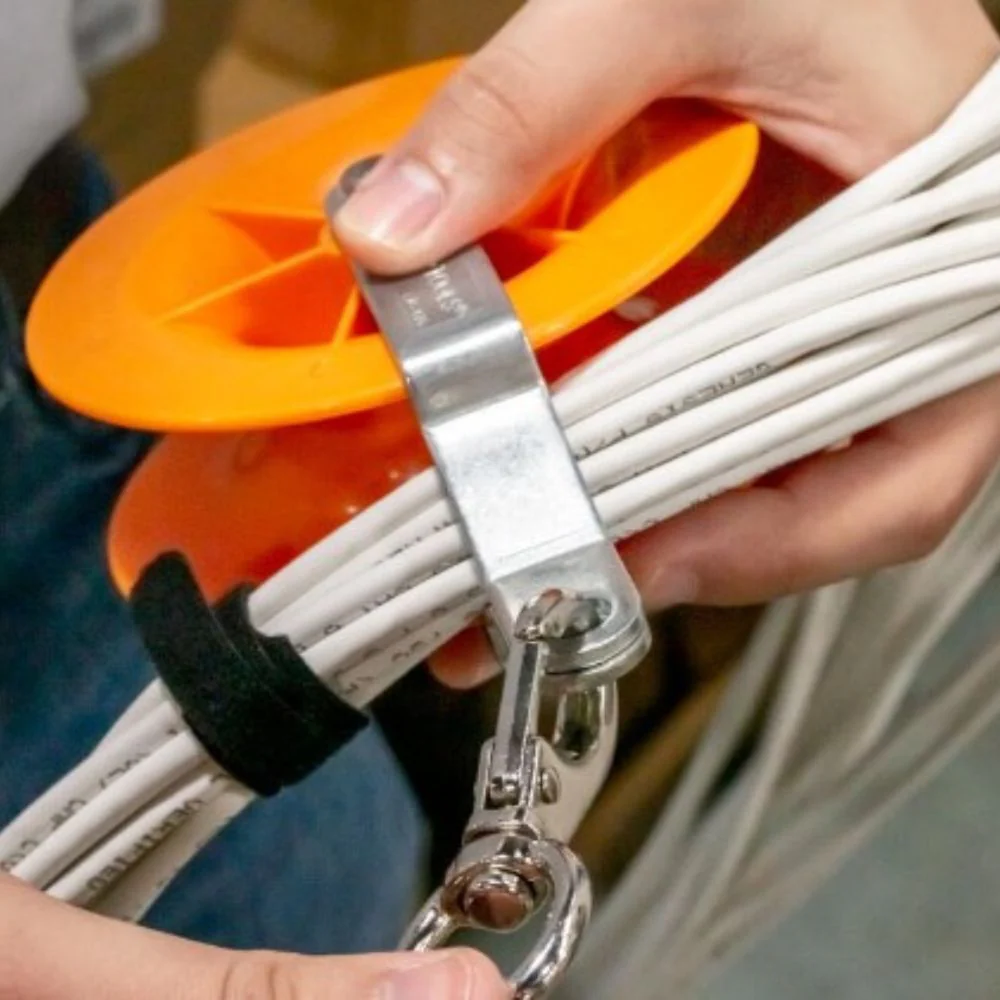

The CP-475 is a set of two cable pulleys designed to help install electrical, COAX, network, and other various low-voltage cables. With their swivel snap hooks, deep grooves, and anti-friction bearings, these pulleys keep cables aligned with the direction of the pull, preventing snags and kinks.

Includes

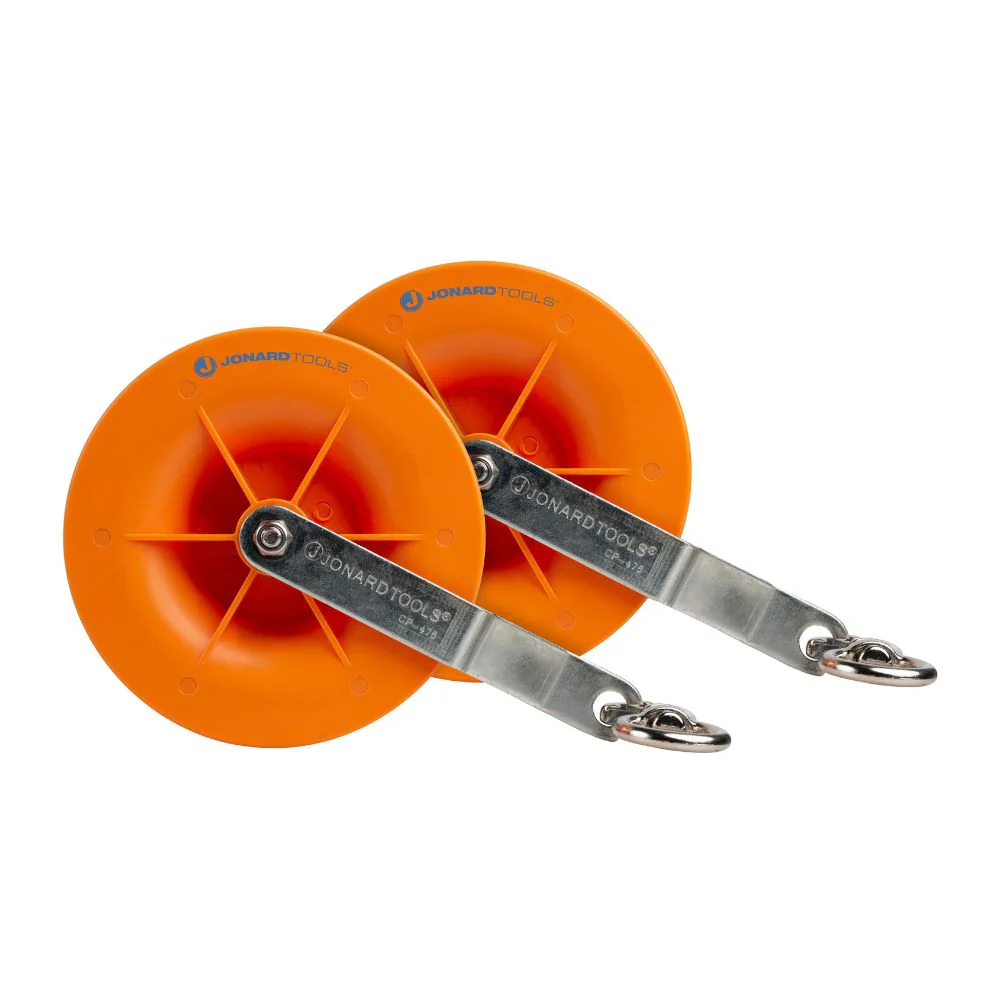

• (2) Pulleys

Features

• Holds up to 20 CAT5/6 network cables.

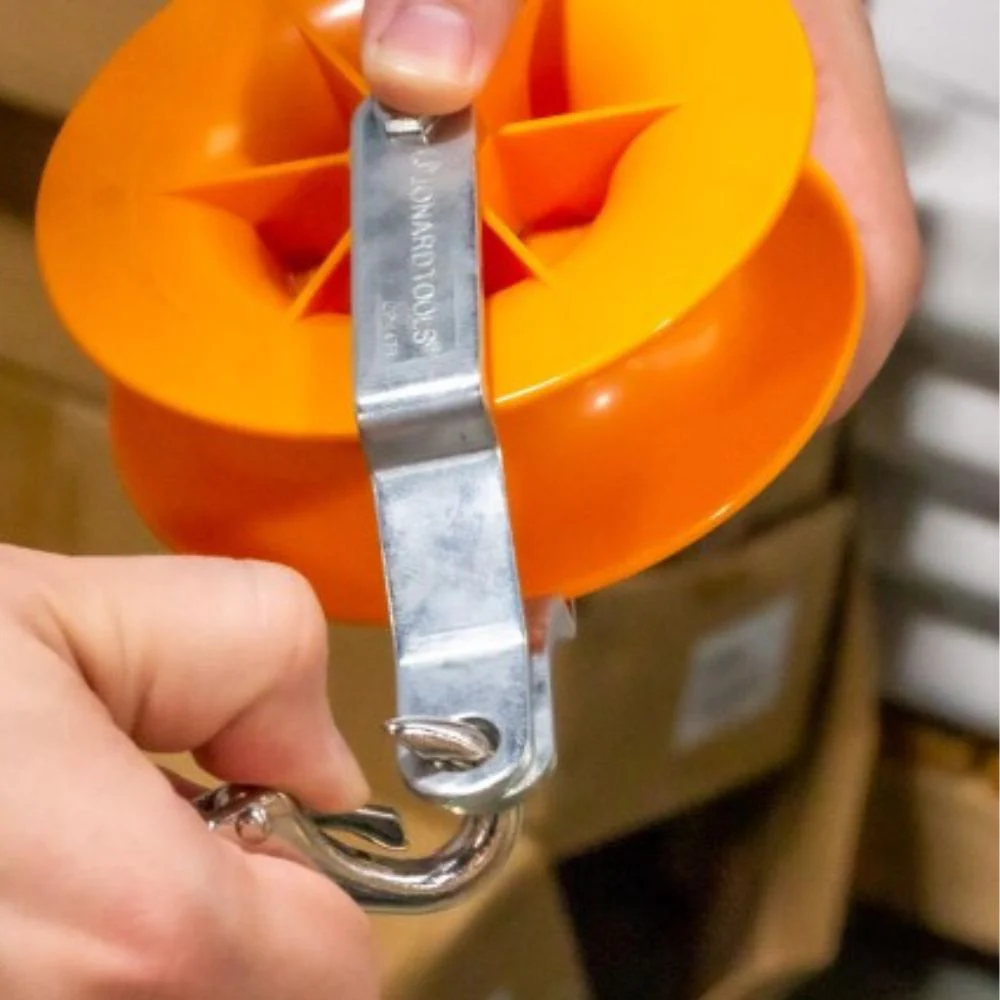

• Swivel snap hook installs easily and keeps pulley aligned with the direction of pull to prevent kinks.
• Anti-friction roller bearings and deep grooves allow the cable to be pulled smoothly and easily.
• Made from a high-strength ABS plastic and zinc-coated steel to provide enhanced durability and longer life.
• Easy to remove the pulley after the cable is installed.

Specifications

• Number of Cables: Up to 20
• Maximum Weight Capacity: 120 lb (54.43 kg)
• Channel Width: 1.43" (36.41 mm)
• Diameter: 4.75" (12.07 cm)
• Pulley Weight: .63 lb each (287.58 g)
• Total Weight: 1.27 lb (576.06 g)
• Length: 4 (12.065cm)
• Weight: 1.27 lb (576.58 g)

Product Video

Product Literature

• Jonard Tools CP-475 Data Sheet
